NOTE: The two LEDs on the serial console port are nonfunctional.
Nonport side of the switch
Figure 5 (page 14) shows the nonport side of the SN3000B 16Gb Switch.

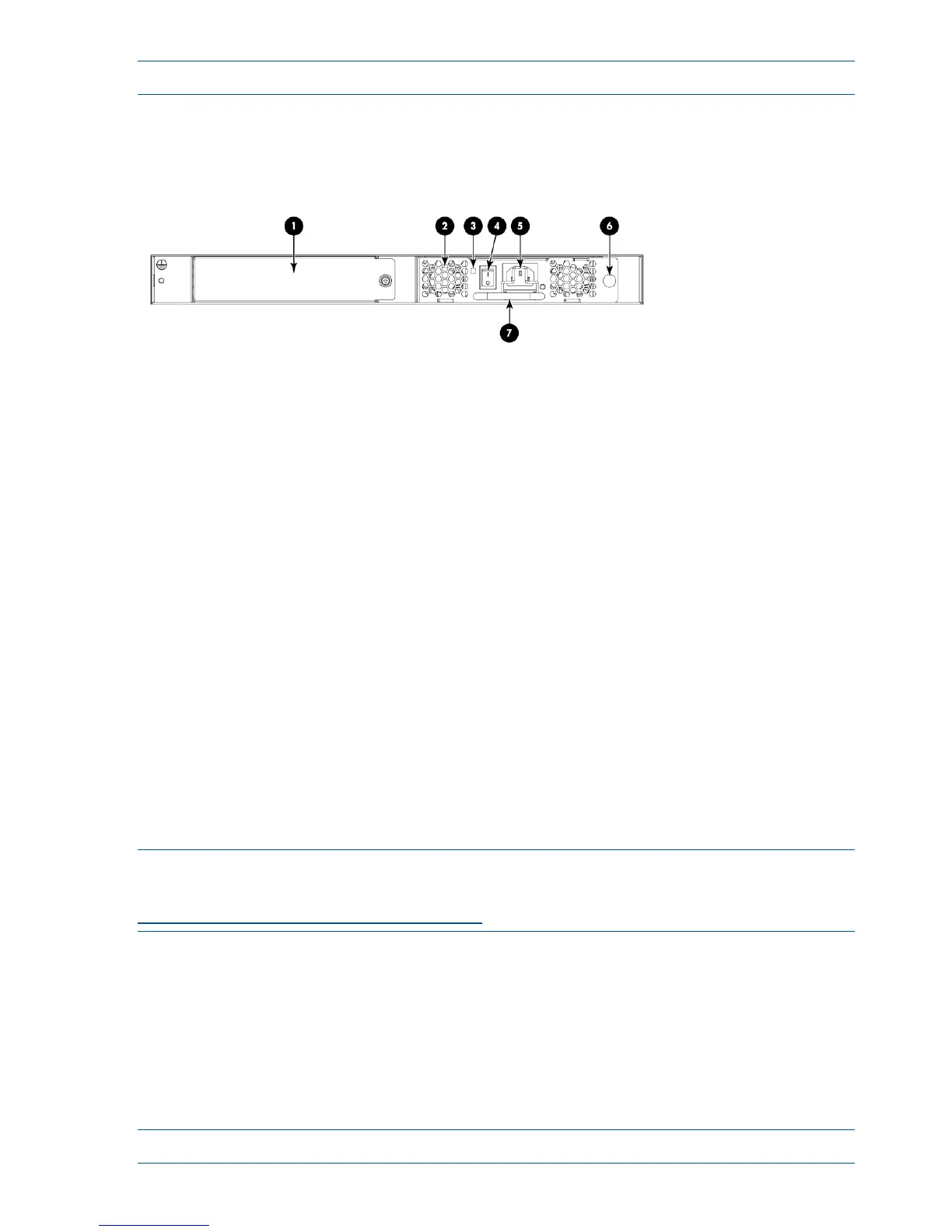

Figure 5 Nonport side view of the HP SN3000B 16Gb FC Switch
2. Power supply and fan assembly #11. Filler panel (Optional power supply/fan assembly can
be added in this slot)
4. On/off switch3. Power supply and fan assembly LED
6. Thumbscrew5. Power plug receptacle (with plug retainer)
7. Handle
Software options
The following optional software kits and licenses are available.
• Power Pack+ Software Bundle kit includes:
Adaptive Networking◦
◦ Fabric Watch
◦ ISL Trunking
◦ Extended Fabric
◦ Server Application Optimization
◦ Advanced Performance Monitor
• HP B-series 8-24 Port SAN Switch Adaptive Networking LTU
• HP B-series 8-24 Port SAN Switch ISL Trunking LTU
• HP SN3000B 16Gb 24/12 Fibre Channel Switch 12-port Upgrade LTU
NOTE: For the latest information on supported software components, see the product QuickSpecs
available from the HP website:
http://www.hp.com/go/sn3000b/quickspecs
ISL Trunking
ISL Trunking is optional software that enables creating trunking groups of ISLs between adjacent
switches. Up to eight FC ports on the HP SN3000B 16Gb FC Switch can be used as a trunking
group to achieve speeds of up to 128 Gb/s (256 Gb/s full duplex) for optimal bandwidth utilization
and load balancing.
For example, the FC ports on the SAN Switch are numbered from left to right and color-coded in
groups of eight to indicate which ports you can combine into trunking groups. Figure 6 (page 15)
shows the switch with three trunking groups of eight ports.
NOTE: If your switch is licensed for ISL Trunking, use the trunking groups available on the switch.
14 HP 16Gb FC Switches
