Front speakers
NOTE: The speaker spare part kit includes all four speakers.
Description Spare part number
Speaker kit L15590-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement
Before removing the front speakers, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 29), and then remove the following components:
▲
Battery (see Battery on page 31).

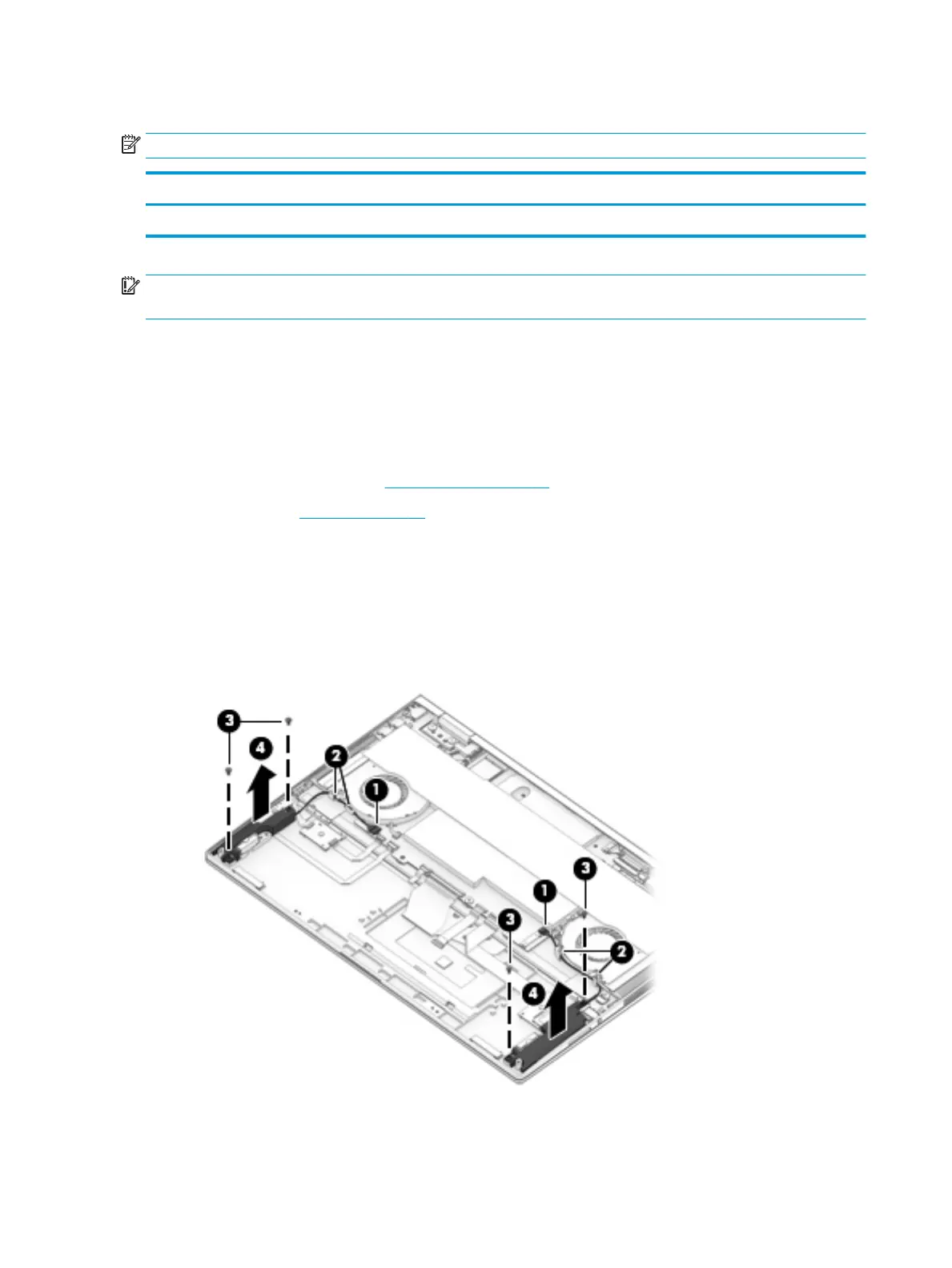

Remove the front speakers:
1. Disconnect the front speaker cables from the system board (1).
2. Remove the front speaker cables from the retaining clips that secure them to the computer (2).
3. Remove the four Phillips PM2.0×4.5 screws (3).
4. Lift the front speakers out of the computer (4).
Reverse this procedure to install the front speakers.
