Memory card reader board
NOTE: The memory card reader board spare part kit does not include the memory card reader cable (spare
part number L15580-001).
Description Spare part number
Memory card reader board L15579-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement
Before removing the memory card reader board, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 29), and then remove the following components:
a. Battery (see Battery on page 31).
b. Front speakers (see Front speakers on page 32).

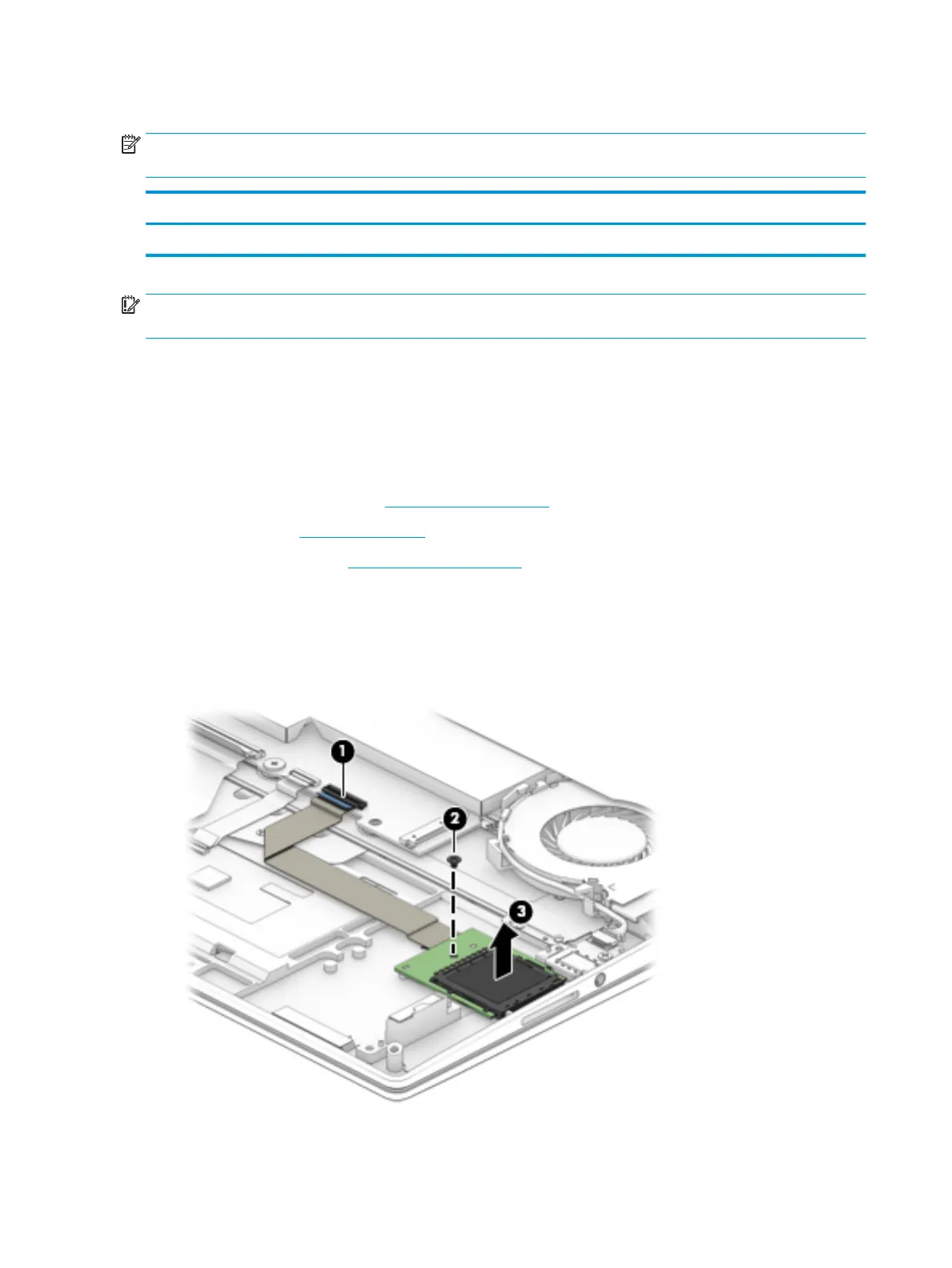

Remove the memory card reader board:
1. Release the memory card reader board cable from the ZIF connector on the system board (1).
2. Remove the Phillips PM2.0×2.5 screw (2).
3. Remove the memory card reader board from the computer (3).
Reverse this procedure to install the memory card reader board.
