Display panel assembly
NOTE: The display panel assembly spare part kit includes the entire display panel assembly from the hinge-
up.
Description Spare part number
15.6" UHD WLED BrightView (3840x2160) uslim-at (2.6mm) UWVA, eDP+PSR, Narrow Bezel L15596-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement
Before removing the display panel assembly, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 29), and then remove the following components:
▲
Battery (see Battery on page 31).
Remove the display panel assembly:

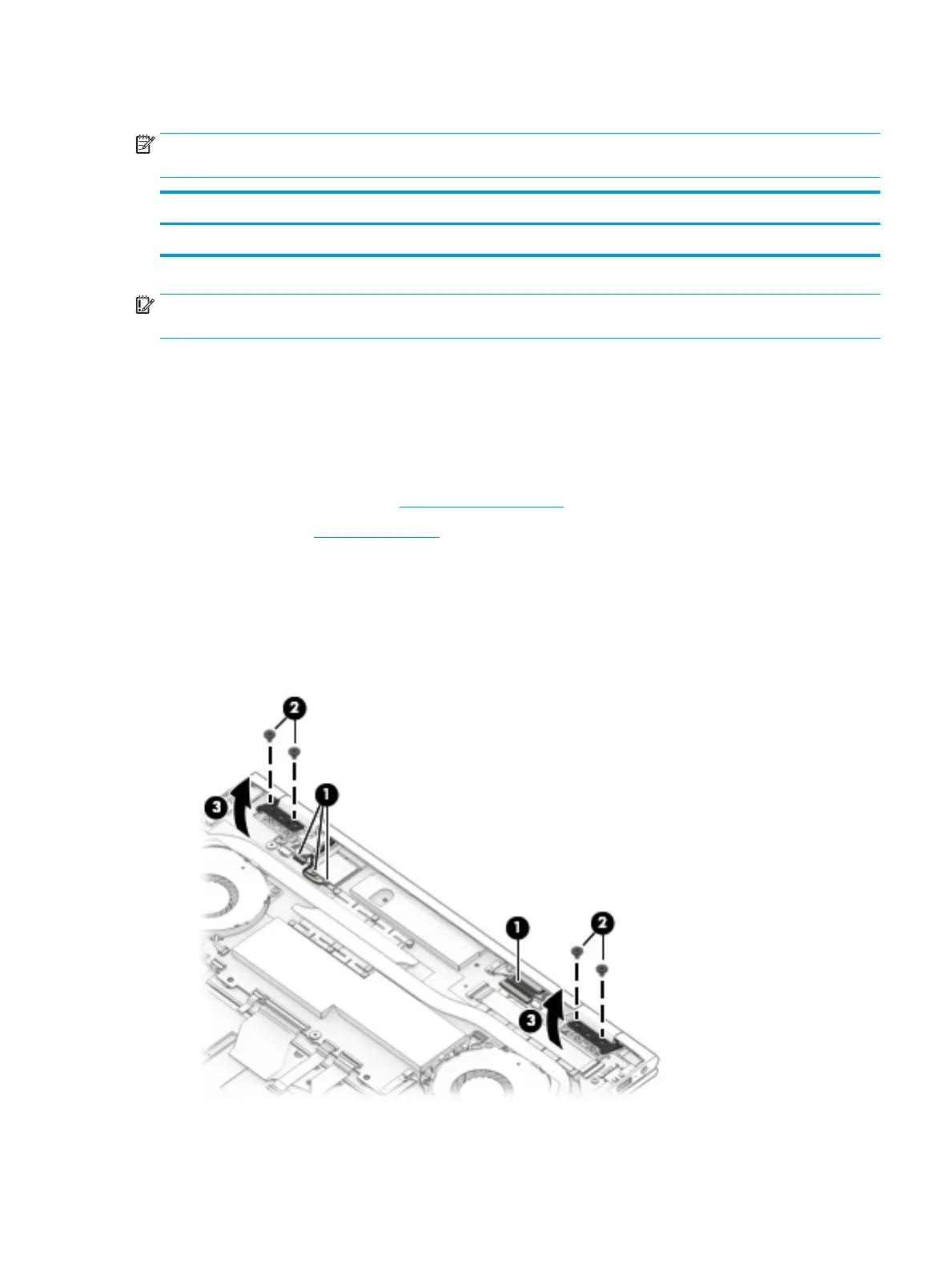

1. Disconnect the webcam, WLAN module, and display panel cables (1).
2. Remove the four Phillips PM2.0×5.0 screws (2) that secure the display assembly to the keyboard/top
cover.
3. Rotate the hinges (3) up and toward the back of the computer to prepare for display assembly removal.
Component replacement procedures 59
