Fingerprint reader board
NOTE: The ngerprint reader board spare part kit does not include the ngerprint reader board cable (spare
part number L15584-001).
Description Spare part number
Fingerprint reader board L15583-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement
Before removing the ngerprint reader board, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 29), and then remove the following components:
▲
Battery (see Battery on page 31).

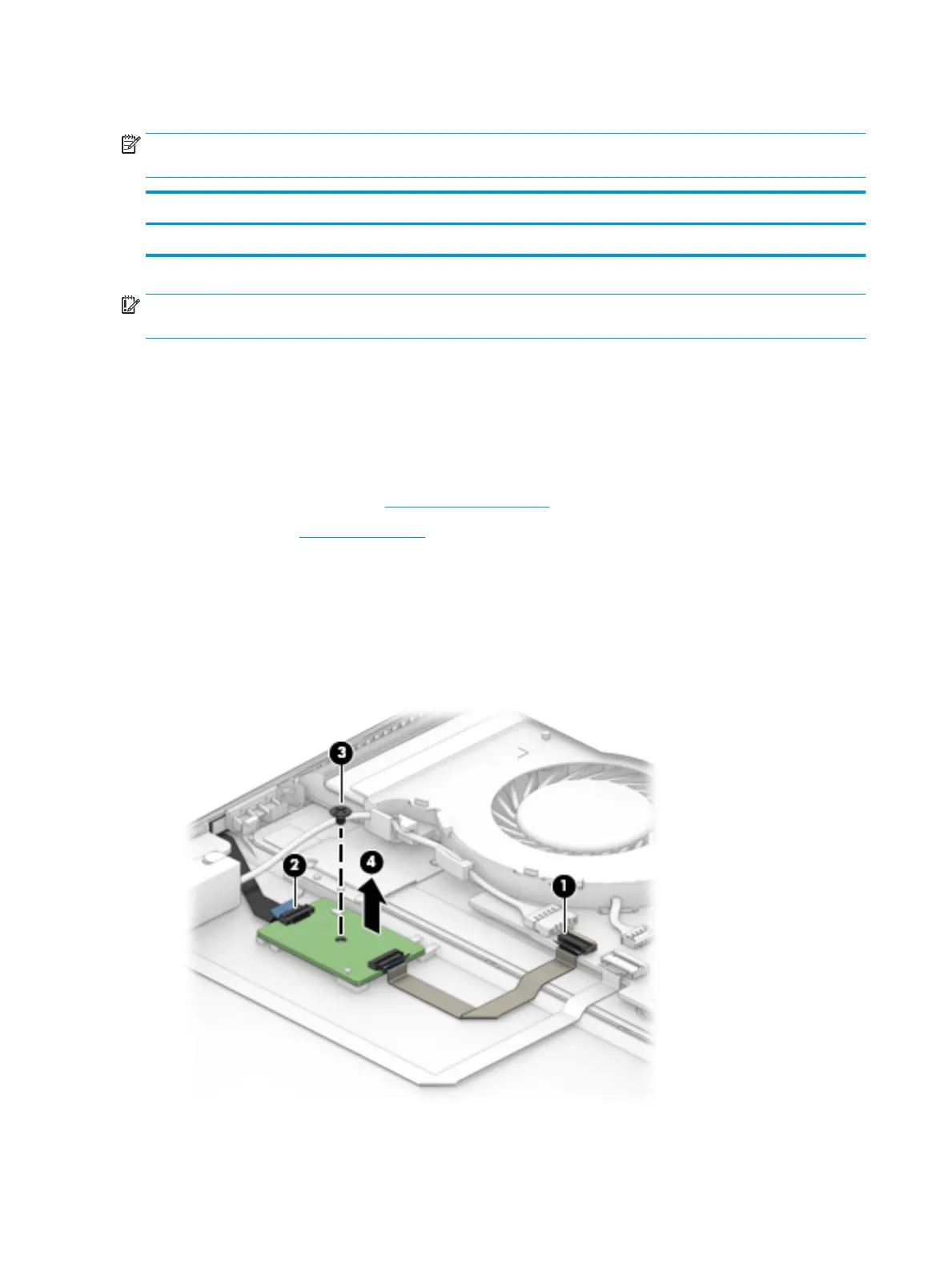

Remove the ngerprint reader board:
1. Release the ngerprint reader board cable from the ZIF connector on the system board (1).
2. Release the ngerprint reader module cable from the ZIF connector on the ngerprint reader board (2).
3. Remove the Phillips PM2.0×3.5 screw (3).
4. Remove the ngerprint reader board and cable from the computer (3).
Reverse this procedure to install the ngerprint reader board.
36 Chapter 5 Removal and replacement procedures for authorized service provider parts
