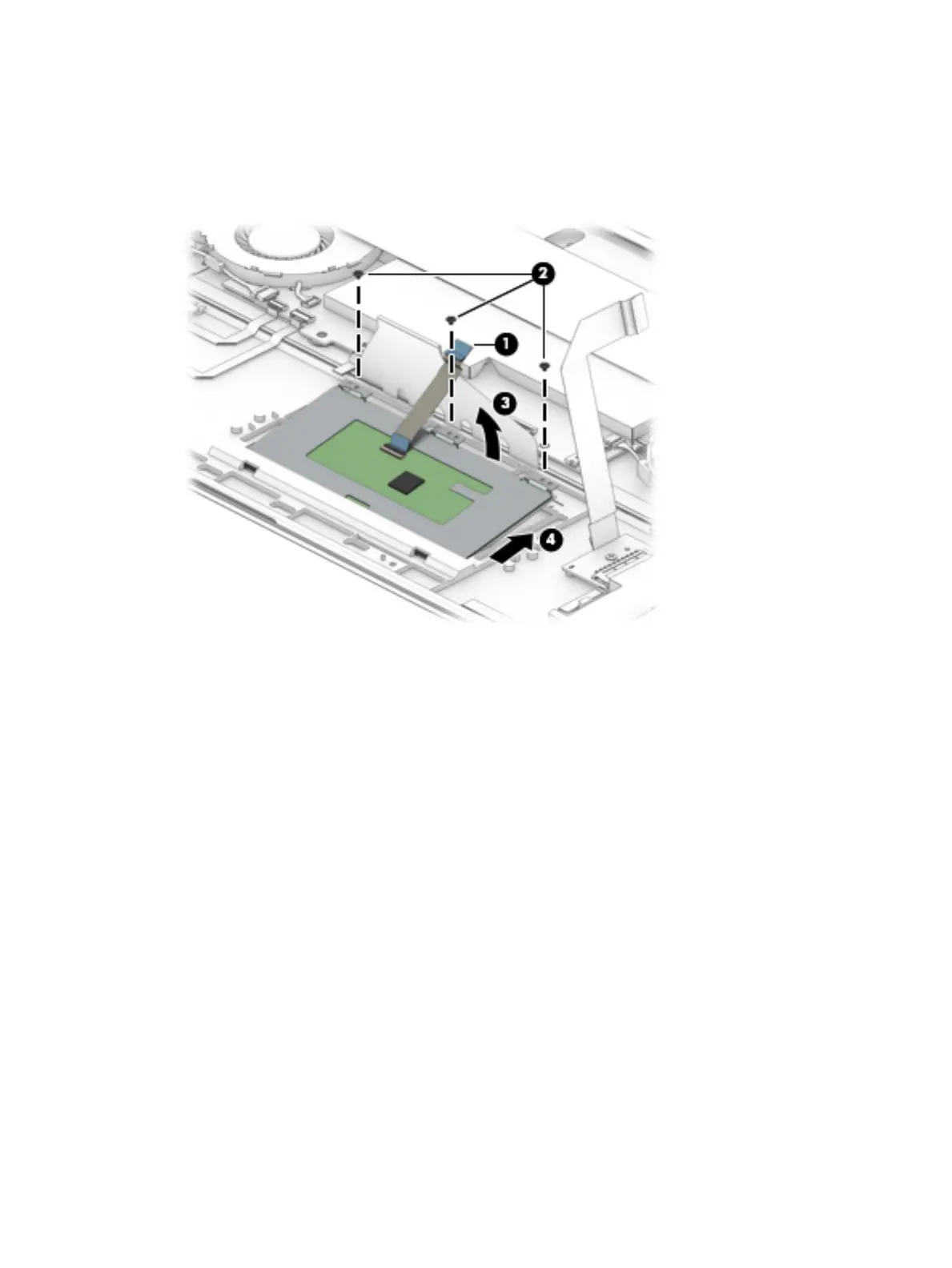

4. Remove the TouchPad cable (see above) (1).
5. Remove the three Phillips PM2.0×2.0 screws (2).
6. Lift the TouchPad at an angle toward the front of the computer (3).
7. Slide the TouchPad assembly out of the retaining bracket and remove it from the computer (4).
Reverse this procedure to install the TouchPad assembly.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
