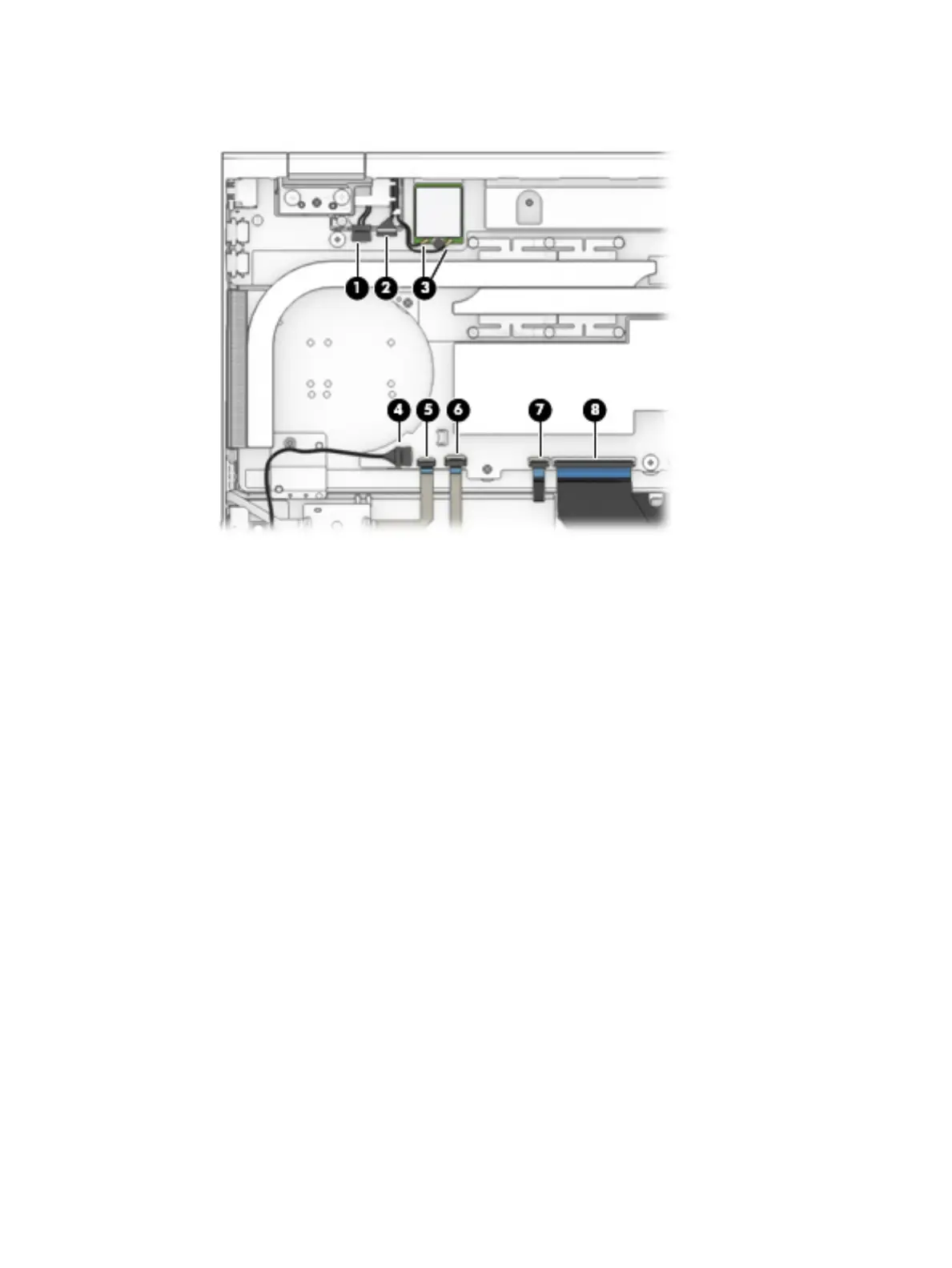

8. Disconnect the keyboard cable from the system board (8).
9. Disconnect the power connector cable from the system board (9).
10. Disconnect the display panel cable from the system board (10).
11. Disconnect the right rear speaker cable from the system board (11).
12. Disconnect the USB daughter board cable from the system board (12).
13. Disconnect the right front speaker cable from the system board (13).
14. Disconnect the TouchPad assembly cable from the system board (14).
15. Disconnect the memory card reader board cable from the system board (15).
Component replacement procedures 53
