350 Optimizing fabric behavior

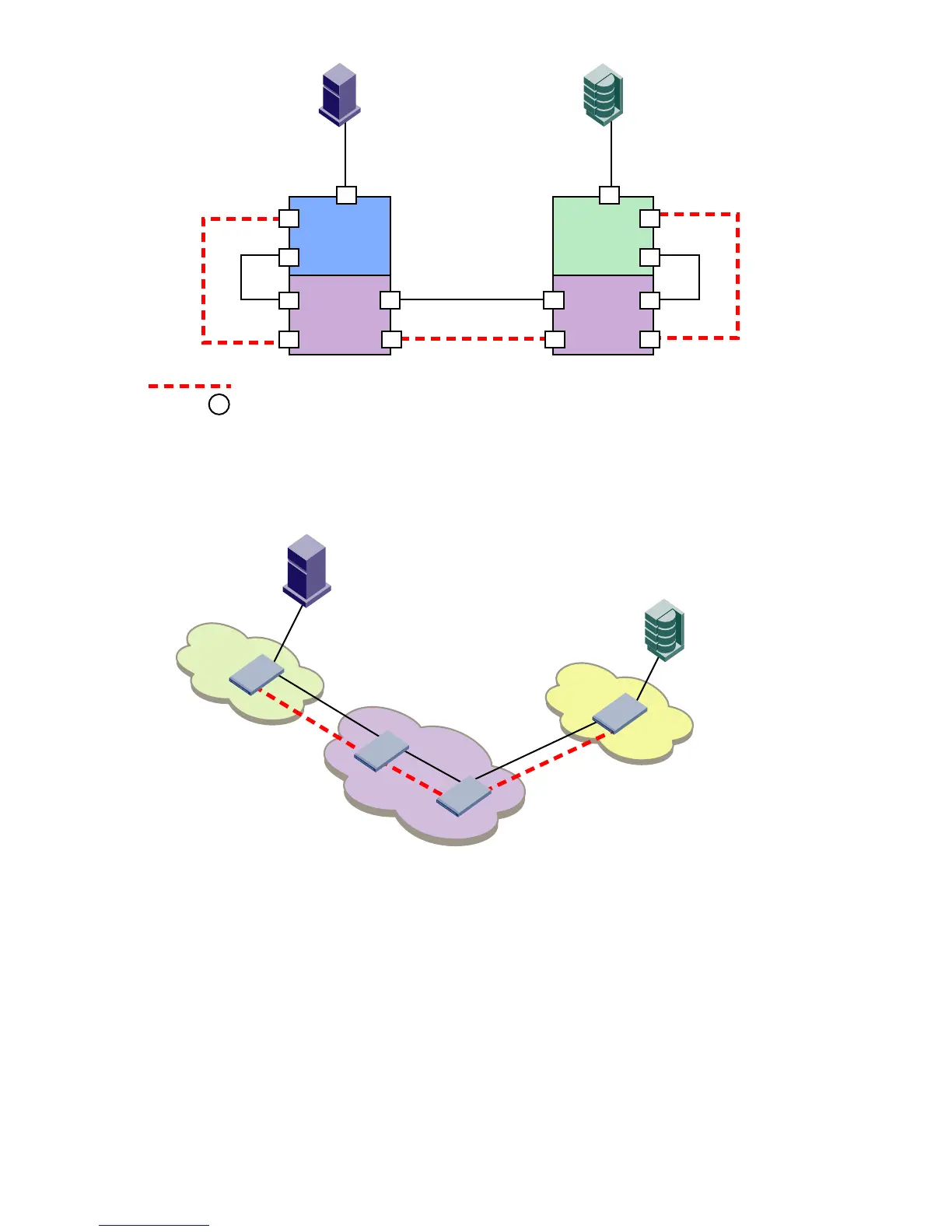

Figure 53 Example configuration for TI zones over FC routers in Logical Fabrics
Figure 54 shows a logical representation of the configuration in Figure 53. This SAN is similar to that
shown in Figure 46 on page 343 and you would set up the TI zones in the same way as described in
”Traffic Isolation Routing over FC routers” on page 342.
Figure 54 Logical representation of TI zones over FC routers in Logical Fabrics
Creating a TI zone
You create and modify TI zones using the zone command. Other zoning commands, such as
zoneCreate, aliCreate, and cfgCreate, cannot be used to manage TI zones.
When you create a TI zone, you can set the state of the zone to activated or deactivated. By default the
zone state is set to activated; however, this does not mean that the zone is activated. After you create the TI
zone, you must enable the current effective configuration to enforce the new TI zone, which is either
activated or deactivated.
Virtual Fabric considerations: Because base fabrics do not contain end devices, they normally do not have
an effective zone configuration. To activate a TI zone in a base fabric, you should create a "dummy"
configuration, as described in ”Creating a TI zone in a base fabric” on page 352.
= Dedicated Path
Base switch
Domain 1
LS3, FID1
Domain 3
Base switch
Domain 2
LS2, FID3
Domain 6
E
E
E EX
EXEX
E
F
EX
E
E
F
E E
= Ports in the TI zones
11
12
1
2
3
4
5
6
7
10
13
14
15
16
Backbone fabric
Edge fabric
Fabric 3
Edge fabric
Fabric 1
1
2
3
4
5
6
7
11
10
12
13
14
15
16
SW2
SW6
SW3
SW1
