468 Configuring and monitoring FCIP extension services

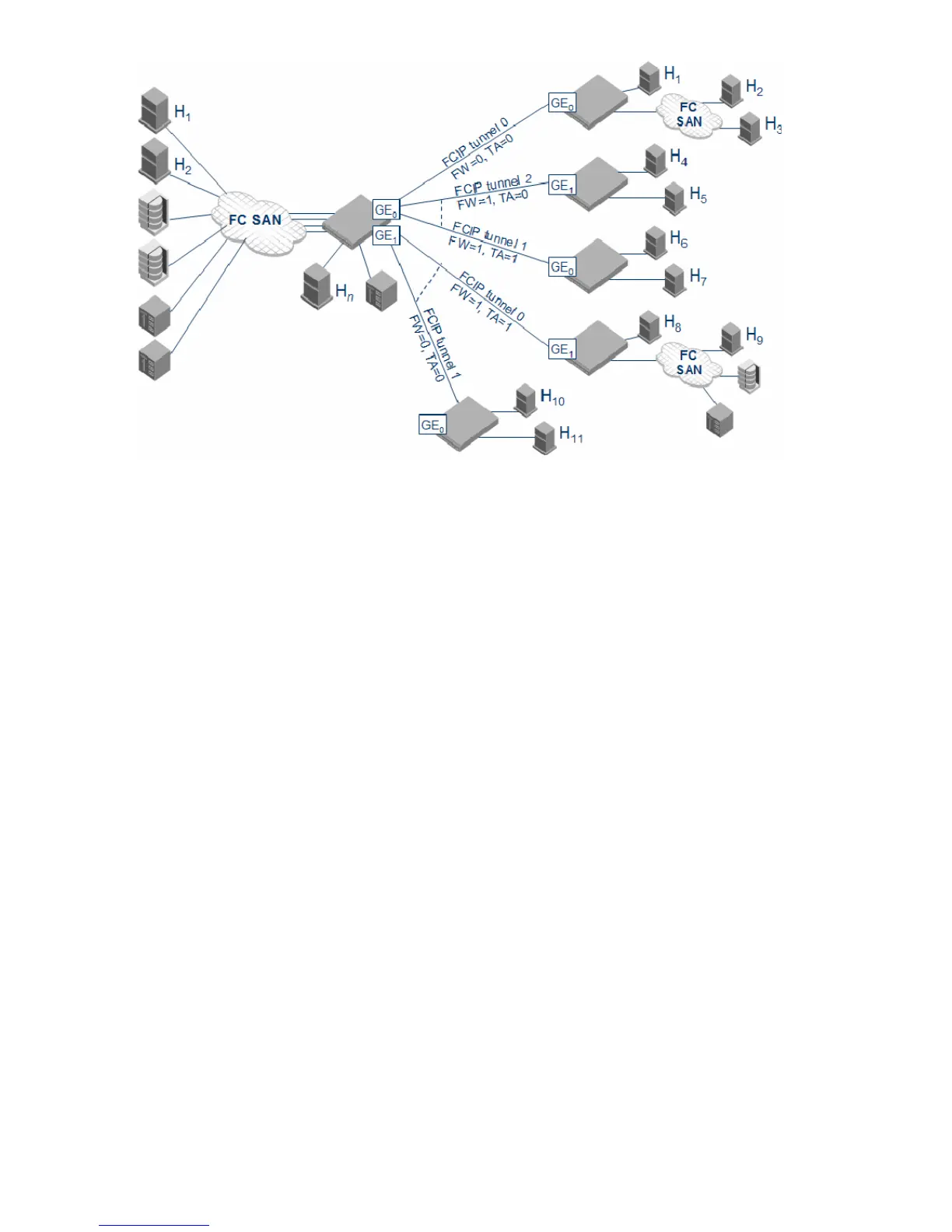

Figure 80 Multiple tunnels to multiple ports, Fastwrite and Tape Pipelining enabled on a

per-tunnel/per-port basis

Unsupported configurations for Fastwrite and Tape Pipelining

The configurations shown in Figure 81 are not supported with Fastwrite and Tape Pipelining. These

configurations use multiple equal-cost paths.
