5. On the Edit Zoning dialog box, click Close to close the Edit Zoning dialog box.

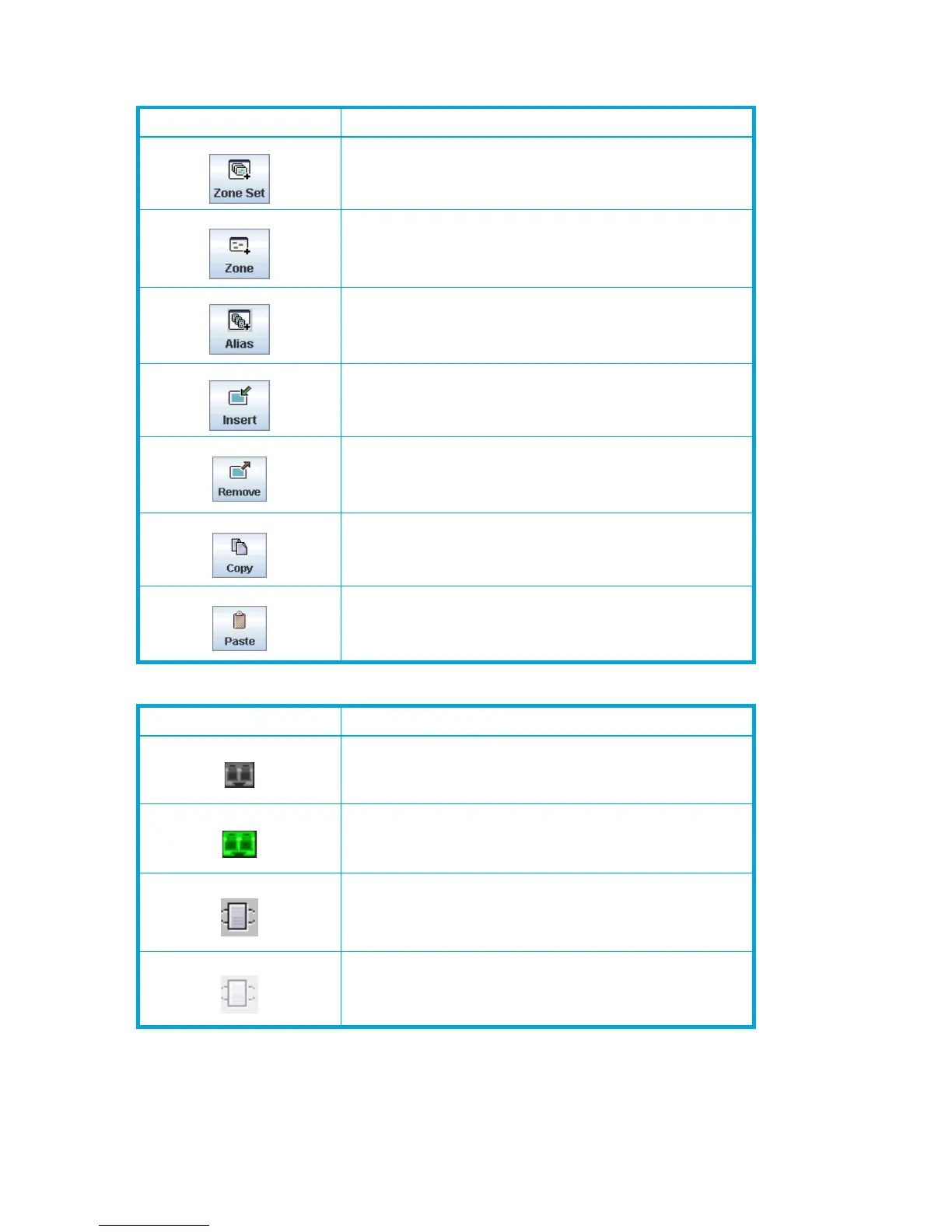

Table 6 Edit Zoning dialog box tool bar
Button Description
Create Zone Set button—Creates a new zone set
Create Zone button—Creates a new zone
Create Alias button—Creates another name for a set of
objects
Add Member button—Adds selected port/device to a zone
Remove Member button—Deletes the selected zone from a
zone set, or deletes the selected port/device from a zone
Copy button—Copies selected zoning items to the clipboard
Paste button—Pastes clipboard items in selected zoning
item, where applicable
Table 7 Port/Device icons
Icon Description
Switch port icon—When not logged in
Switch port icon—When logged in
NL_Port (loop) device icon—When logged in to fabric
NL_Port (loop) device icon—When not logged in to fabric
