HPE StoreOnce 4700 system internal SAS cabling

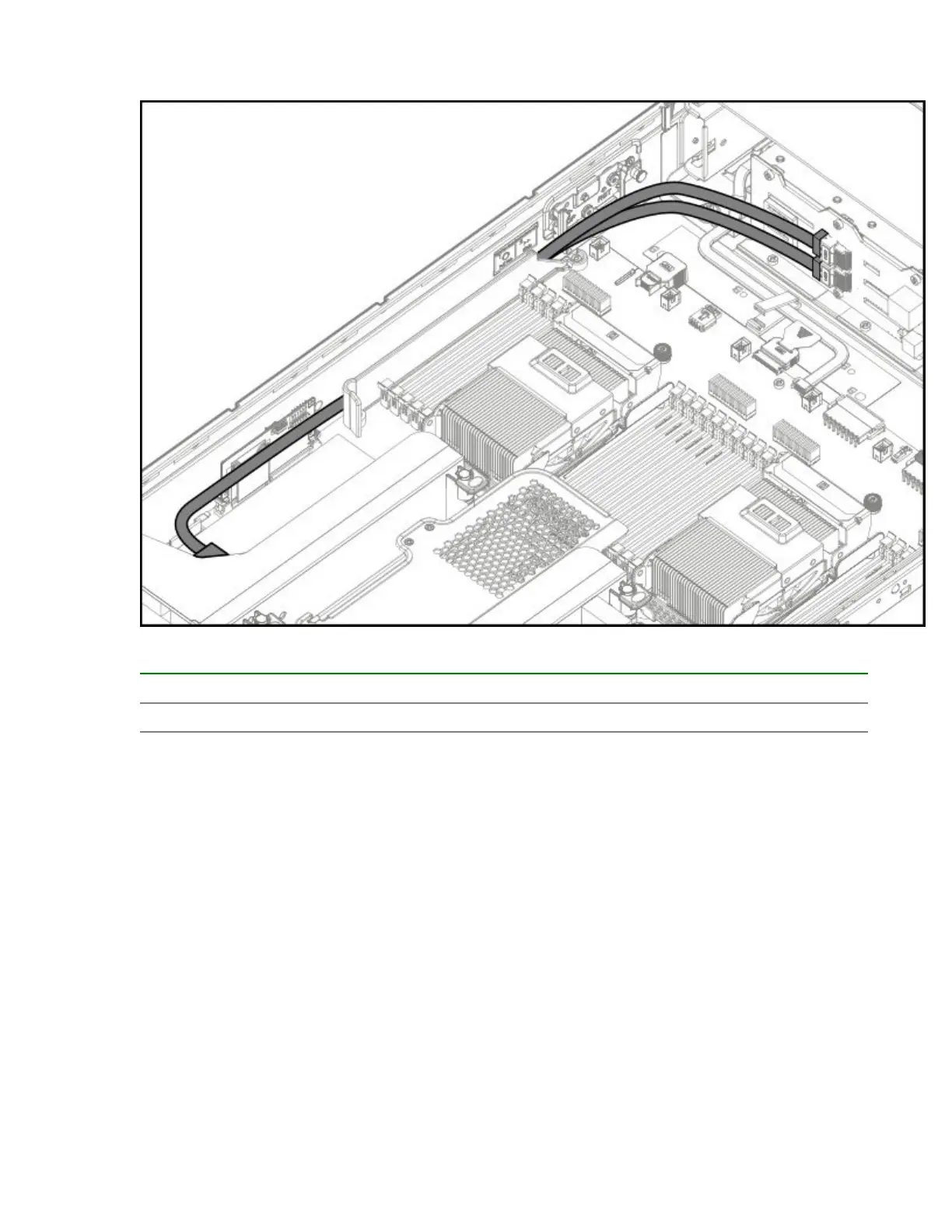

Figure 15: Internal SAS cabling for HPE StoreOnce 4700 system
From To
Port on backplane Port on RAID controller card
42 HPE StoreOnce 4700 system internal SAS cabling
