Power connector cable
Description Spare part number
Power connector cable 787922-001
Before removing the power connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 22).

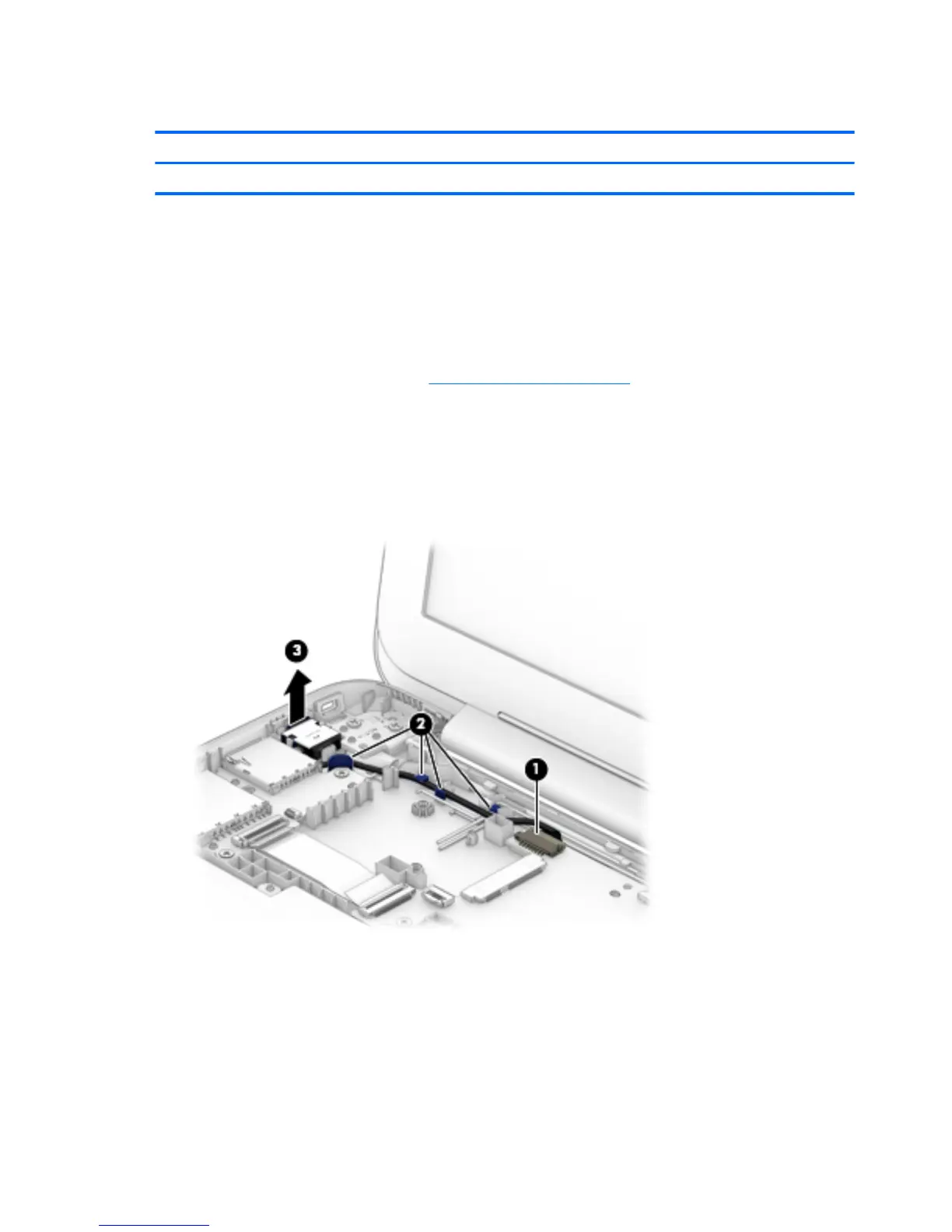

Remove the power connector cable:
1. Disconnect the power connector cable (1) from the system board.
2. Release the power connector cable from the retention clips (2) and routing channel built into the
base enclosure.
3. Release the power connector from the retention molding (3) built into the base enclosure.
4. Remove the power connector cable.
Reverse this procedure to install the power connector cable.
