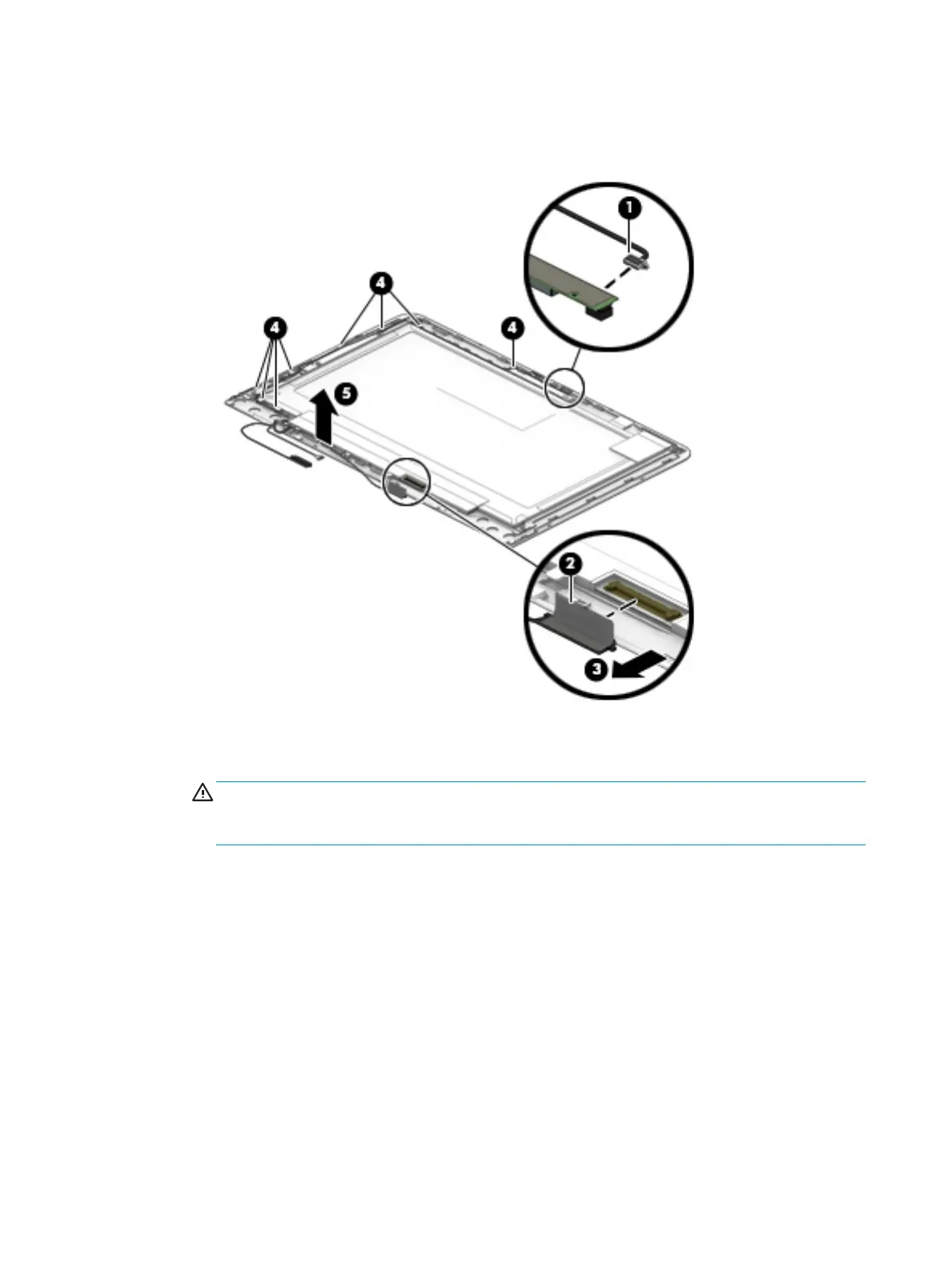

f. Remove the display panel cable (5).
The display panel cable includes the webcam/microphone module cable and is available using
spare part number 906776-001.
17. If it is necessary to replace the TouchScreen board cable:
a. Remove the display panel assembly.
CAUTION: Before turning the display panel assembly upside down, make sure the work surface is
clear of tools, screws, and any other foreign objects. Failure to follow this caution can result in
damage to the display panel assembly.
b. Remove the two Phillips PM2.0×2.9 screws (1) that secure the TouchScreen board to
the display panel assembly.
62 Chapter 5 Removal and replacement procedures
