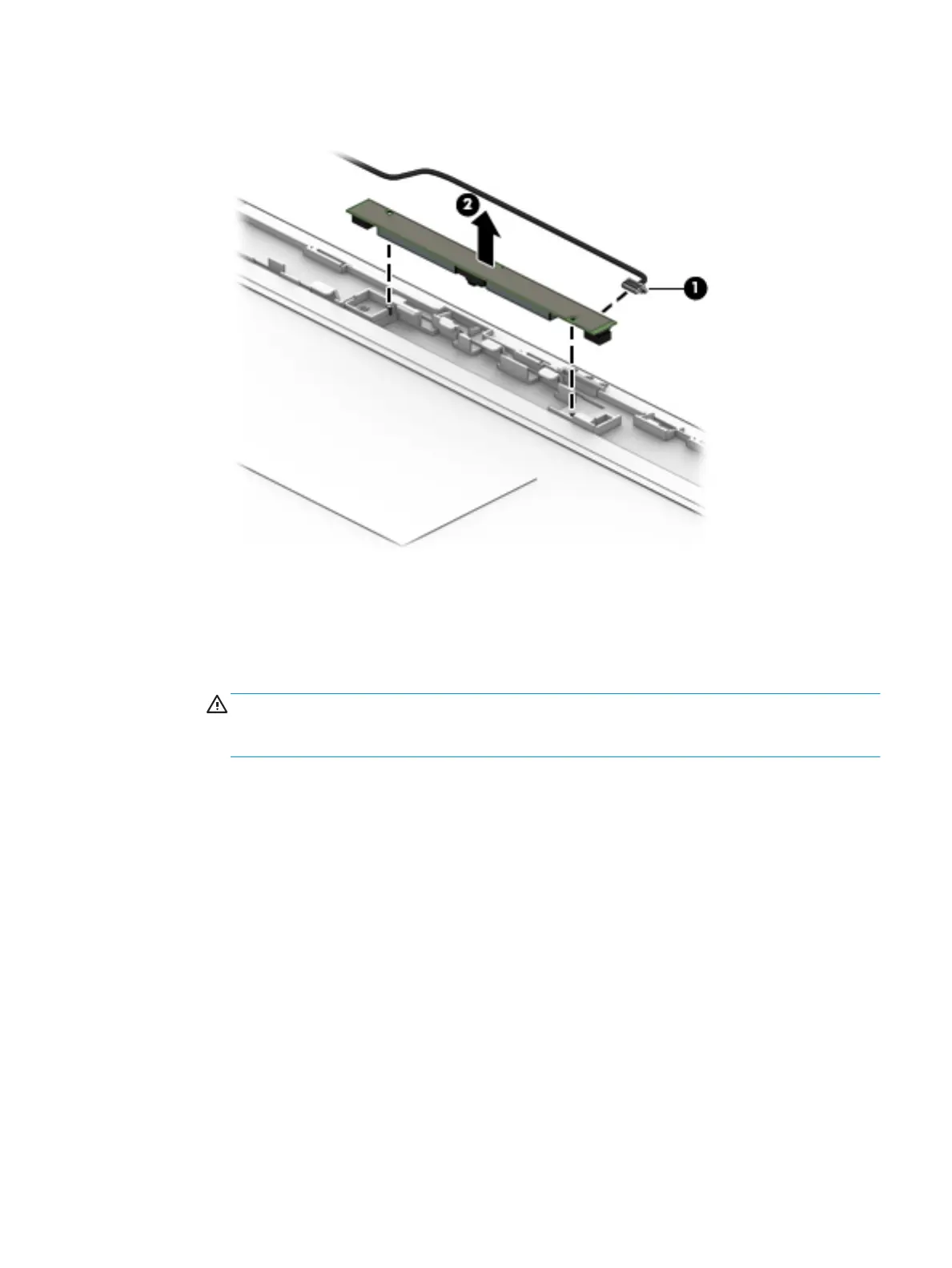

d. Detach the webcam/microphone module (2) from the display bezel. (The webcam/microphone
module is attached to the display bezel with double-sided adhesive.)
e. Remove the webcam/microphone module.
The webcam/microphone module is available using spare part number 907345-001.
16. If it is necessary to replace the display panel cable:
a. Remove the display panel assembly.
CAUTION: Before turning the display panel assembly upside down, make sure the work surface is
clear of tools, screws, and any other foreign objects. Failure to follow this caution can result in
damage to the display panel assembly.
b. Disconnect the webcam/microphone module cable (1) from the webcam/microphone module.
c. Release the adhesive support strip (2) that secures the display panel cable to the display panel.
d. Disconnect the display panel cable (3) from the display panel.
e. Release the display panel cable from the retention clips (4) and routing channel built into
the display panel assembly.
Component replacement procedures 61
