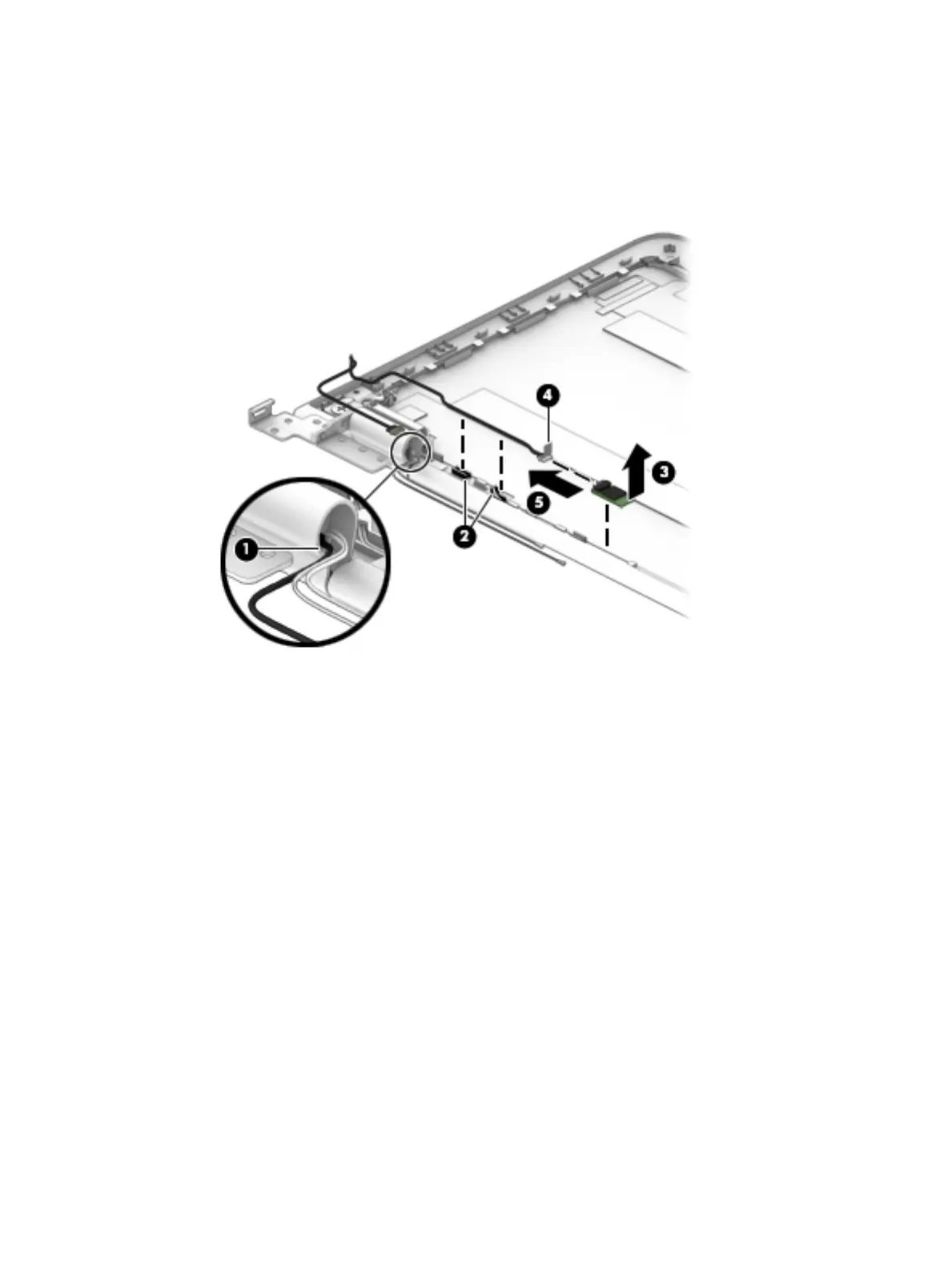

d. Detach the G-sensor module (3) from the display back cover. (The G-sensor module is attached to
the display back cover with double-sided adhesive.)
e. Release the adhesive support strip (4) that secures the G-sensor module cable to the G-
sensor module.
f. Disconnect the G-sensor module cable (5) from the G-sensor module.
g. Remove the G-sensor module and G-sensor module cable.
The G-sensor module is available using spare part number 906774-001. The G-sensor module is
available using spare part number 906778-001.
19. If it is necessary to replace the display hinges:
a. Remove the display panel assembly.
b. Remove the six Phillips PM2.5×3.0 broad head screws (1) that secure the display hinges to
the display back cover.
64 Chapter 5 Removal and replacement procedures
