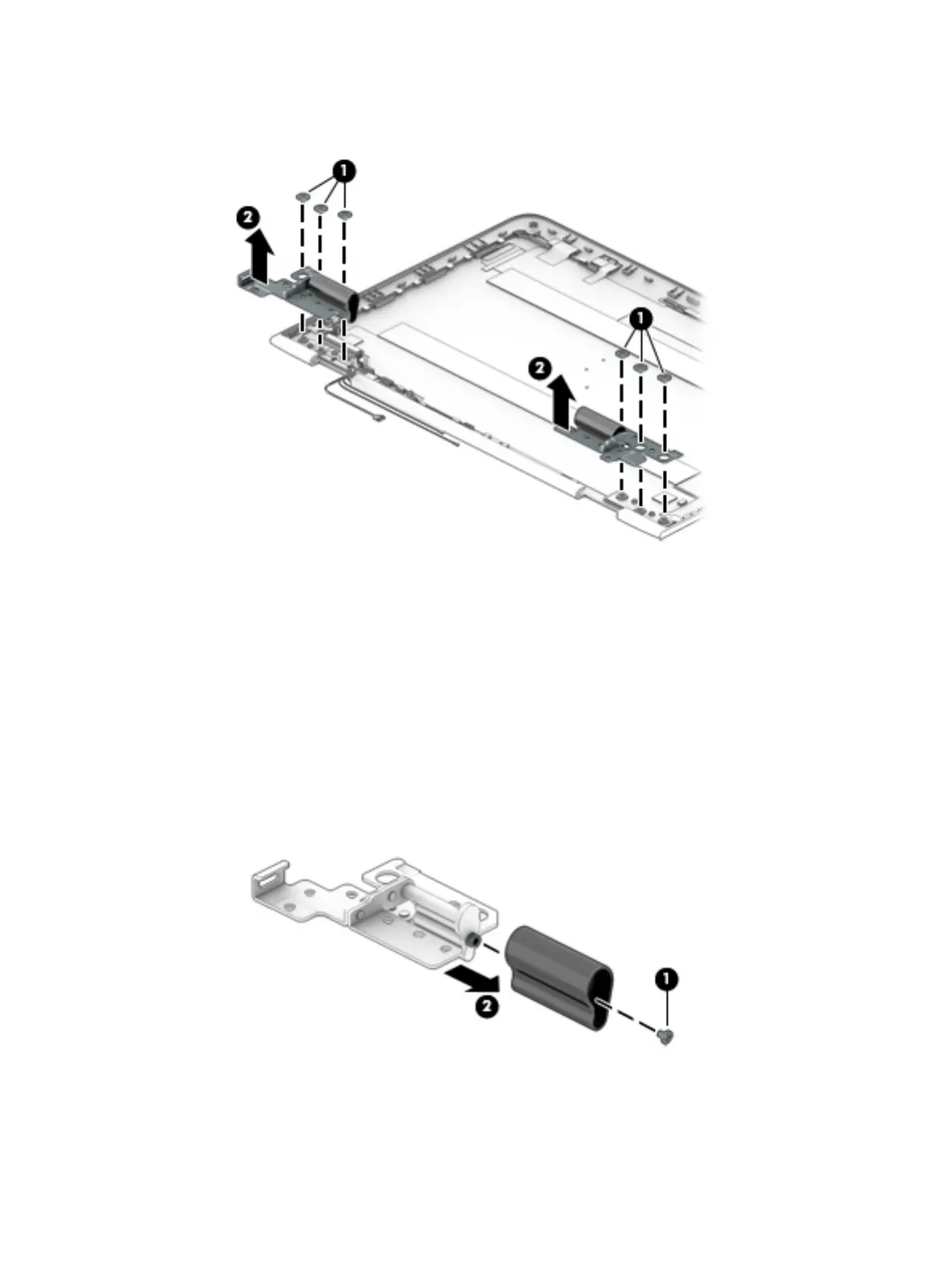

c. Remove the display hinges (2).
The display hinges are available using spare part number 906771-001.
20. If it is necessary to replace the display hinge covers:
a. Remove the display panel assembly.
b. Remove the display hinges.
c. Remove the Phillips PM2.0×2.9 screw (1) that secures the display hinge cover to the display hinge.
d. Remove the display hinge cover (2).
The display hinge covers are available using the following spare part numbers:
Jet black, violet purple, and aqua blue models: 906772-001
Snow white models: 917184-001
Innity purple models: L21709-001
21. If it is necessary to replace the wireless antenna cables and transceivers:
Component replacement procedures 65
