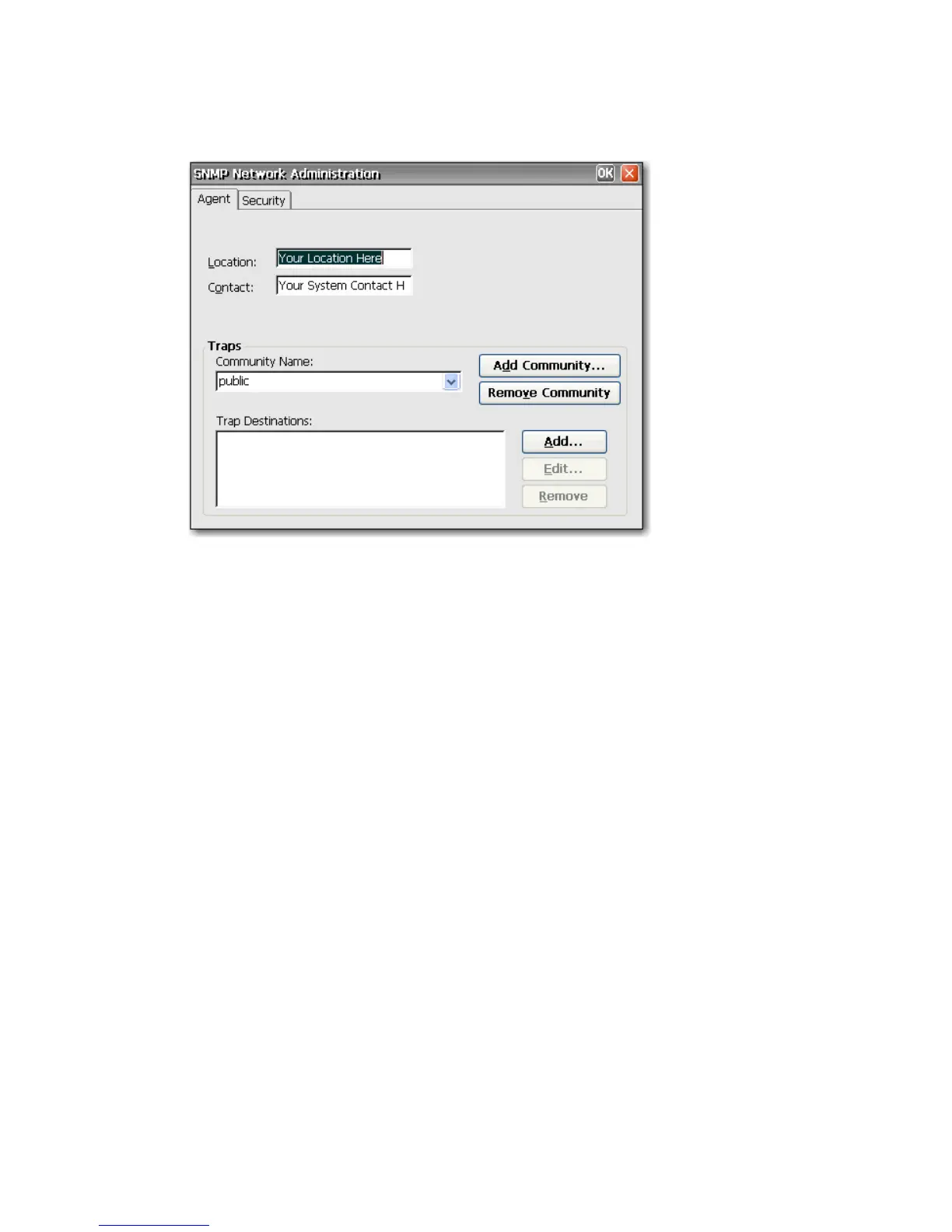

To configure SNMP:
1. On the Agent tab, type the physical location of the terminal in the Location box.
2. Type the name of the contact person responsible for the terminal in the Contact box.
3. Assign the terminal to a community by selecting a community from the Community Name list.
4. To add a trap destination:
a. In the Trap Destinations section, click Add. The SNMP Configuration dialog is displayed.
b. Type the host name or IP address of the NMS trap server, and then click OK.
62 Chapter 4 Control Panel ENWW
