Installation
2-2 HP TFT5110R User Guide
HP CONFIDENTIAL
Writer: Amy L. Laffitte File Name: c-ch2 Installation
Codename: Pug Part Number: 292491-002 Last Saved On: 10/25/02 10:16 AM
Installing the TFT5110R
To install the TFT5110R:
1. Determine the appropriate rack position for the TFT5110R.
2. Measuring from the top of the component below the desired position, use the
template on the front and rear of the rack frame to mark the attachment points for
the mounting rails and rear cage nuts.
NOTE: When using the template on the rear of the rack, mark the rack at the top of the
rack template to help align the next component.
1

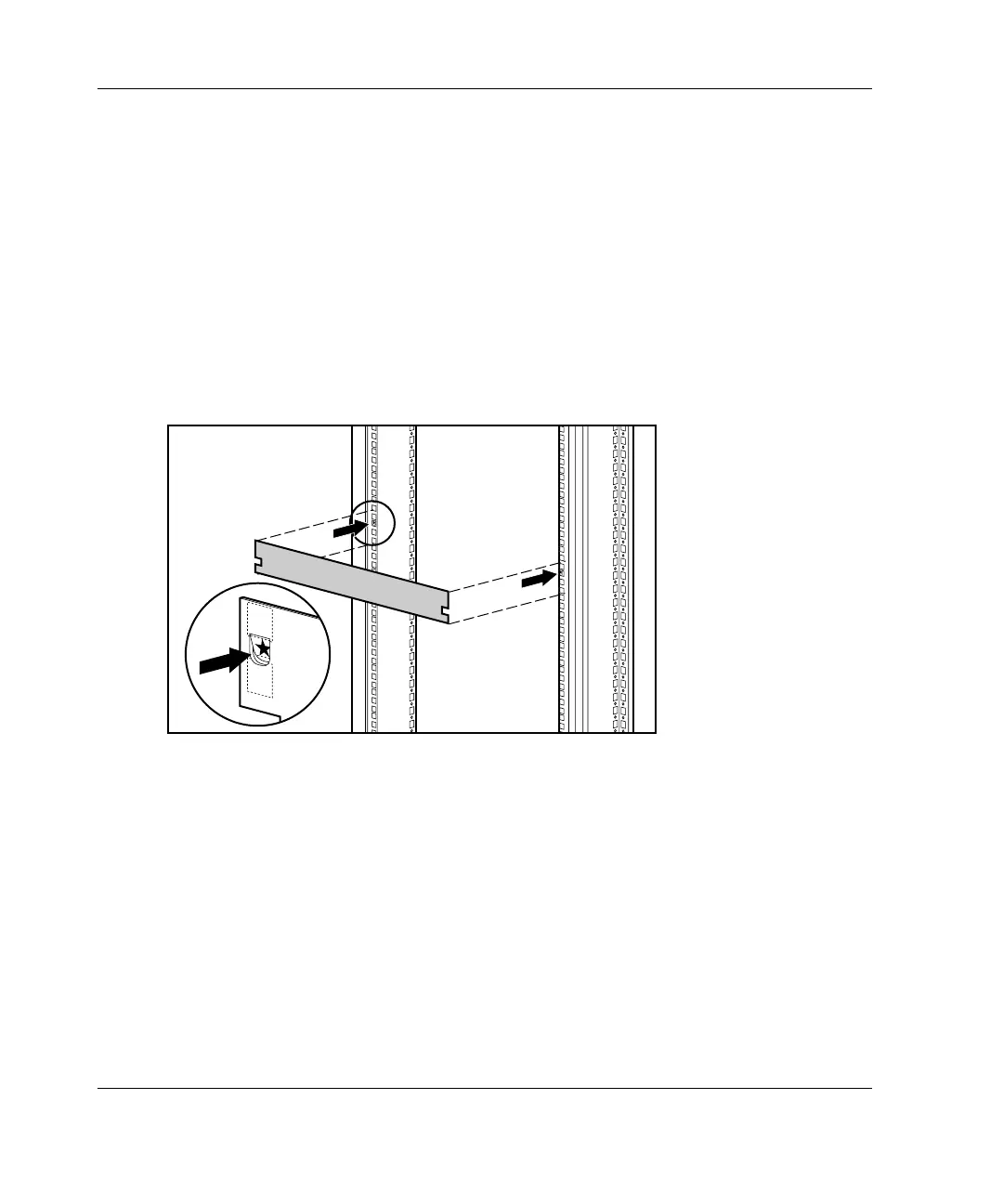

Figure 2-1: Measuring with the 1U template
