Installation
HP TFT5110R User Guide 2-3
HP CONFIDENTIAL
Writer: Amy L. Laffitte File Name: c-ch2 Installation
Codename: Pug Part Number: 292491-002 Last Saved On: 10/25/02 10:16 AM
3. Install the cage nuts and mounting rails to the rack.
a. Insert one cage nut into the hole marked with the rack template on the rear of
the rack (1).
b. Hook the rail-mounting bracket tabs into the appropriate holes on the rear of
the rack, and insert one M-6 screw (2).
c. Align the front mounting rail holes to the rack, and insert two M-6
screws (3).
d. Repeat the steps above to install the other mounting rail.
2
1
3

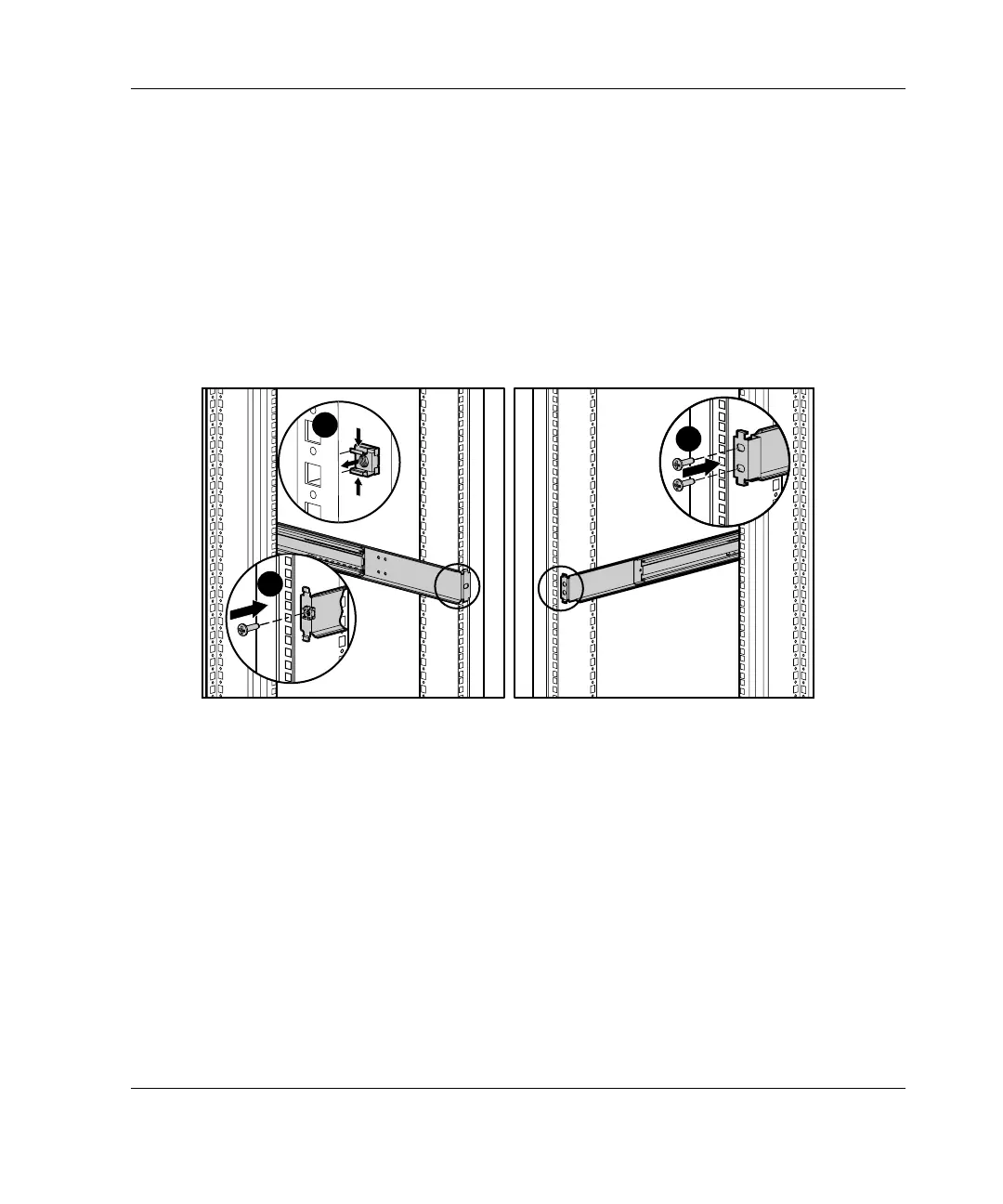

Figure 2-2: Installing the cage nuts and mounting rails
