Installation
2-4 HP TFT5110R User Guide
HP CONFIDENTIAL
Writer: Amy L. Laffitte File Name: c-ch2 Installation
Codename: Pug Part Number: 292491-002 Last Saved On: 10/25/02 10:16 AM
4. Attach the cable management arm assembly to each mounting rail, being sure
that the cable access hole faces the right side of the rack.
NOTE: The cable access hole must be positioned on the right side of the rack to allow
appropriate routing of the cables.
a. Extend the mounting rail to allow the cable management arm assembly to be
inserted.
b. Align the screw holes on the cable management arm assembly with the screw
holes on the mounting rails (1).
c. Insert one 6-32 screw on each side (2).
d. Tighten the screws (3).
1
3
2

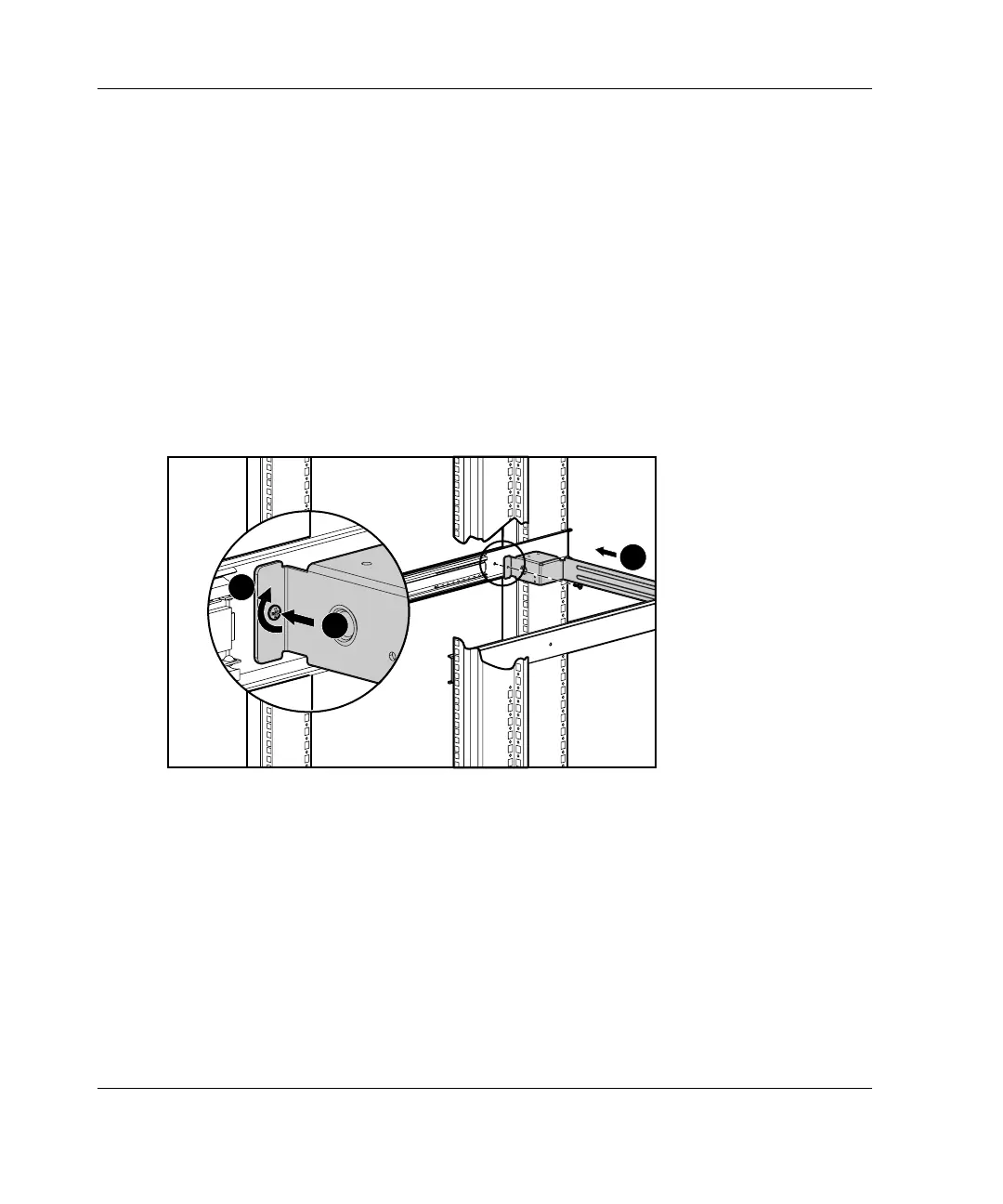

Figure 2-3: Attaching the cable management arm
assembly
