Installation
HP TFT5110R User Guide 2-5
HP CONFIDENTIAL
Writer: Amy L. Laffitte File Name: c-ch2 Installation
Codename: Pug Part Number: 292491-002 Last Saved On: 10/25/02 10:16 AM
5. Install the TFT5110R on the mounting rails:
a. Fully extend the slides until they lock into place.
b. Press the release mechanism and remove the inner slide brackets (1).
c. Attach the inner slide brackets to the metal tray using two screws on
each side (2).
d. Align the inner slide brackets (attached to the TFT5110R) with the slides.
e. Push the TFT5110R into the rack until the inner slide brackets and slides
lock into place (3).
2
3
2
1

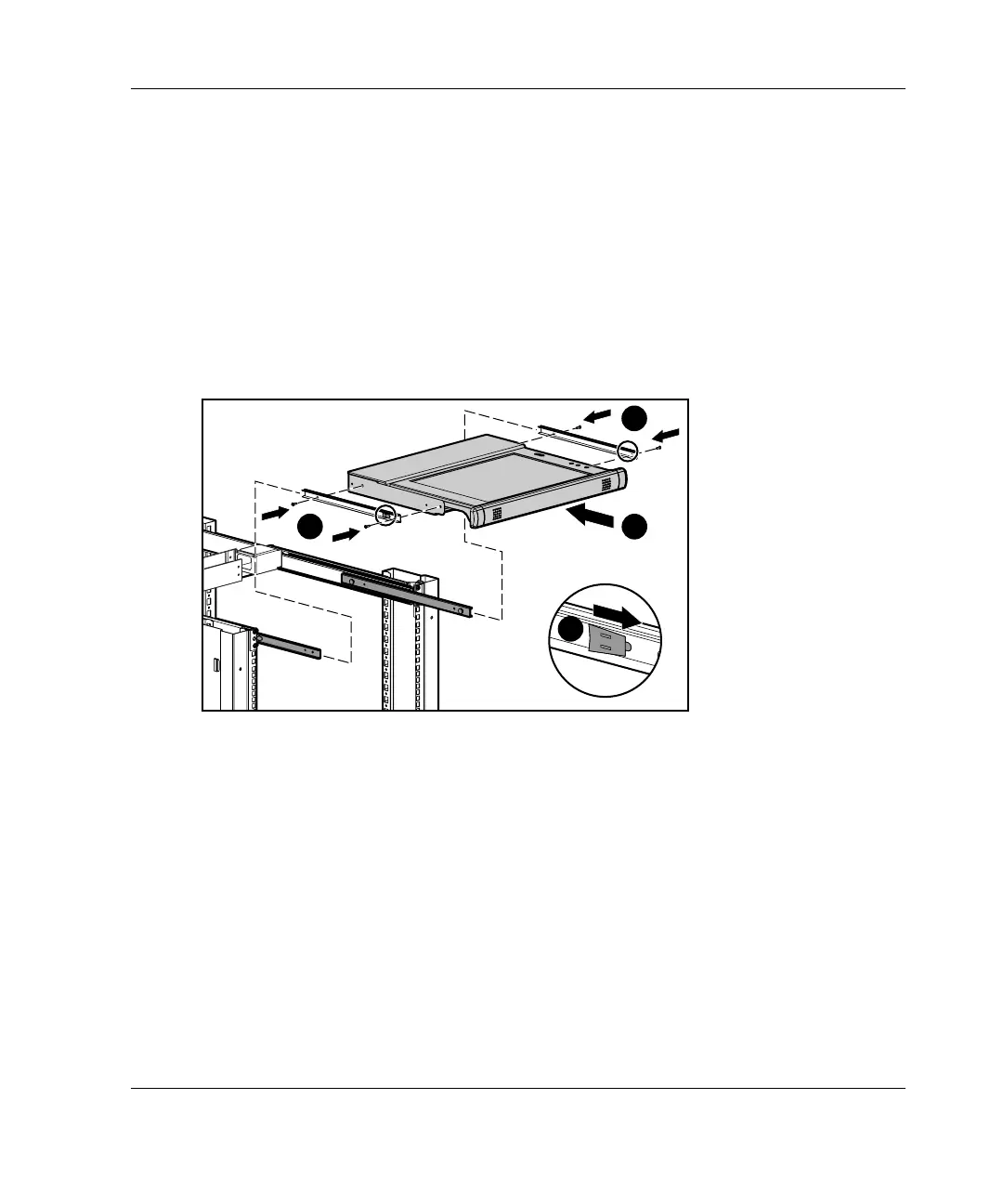

Figure 2-4: Installing the TFT5110R
