Installation
2-6 HP TFT5110R User Guide
HP CONFIDENTIAL
Writer: Amy L. Laffitte File Name: c-ch2 Installation
Codename: Pug Part Number: 292491-002 Last Saved On: 10/25/02 10:16 AM
6. Attach the cable management arm assembly to the rear of the TFT5110R with
two 6-32 screws.

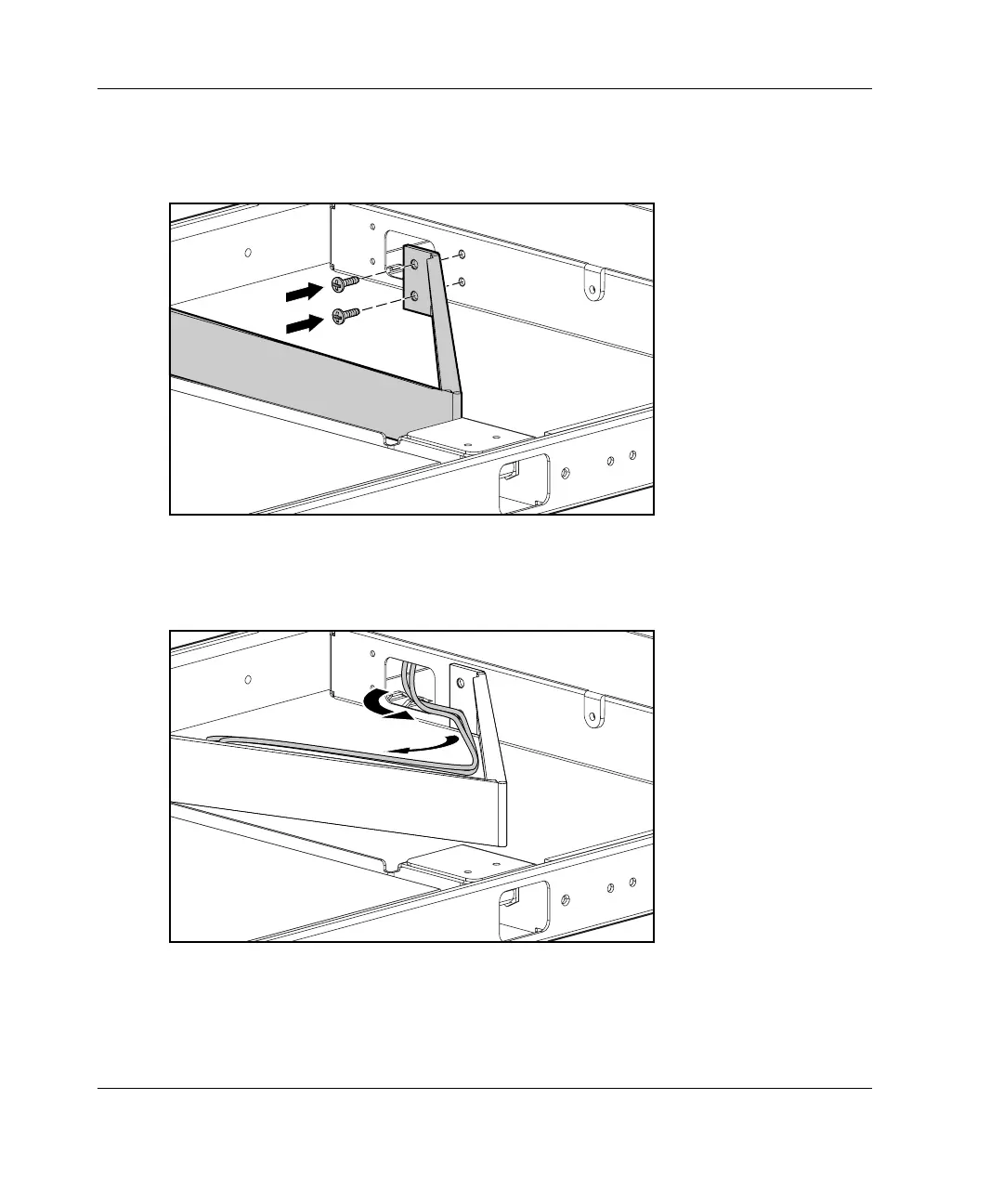

Figure 2-5: Attaching the cable management arm
7. Route the power and video cables through the cable management arm assembly
and mounting rail opening.
Figure 2-6: Routing the cables
