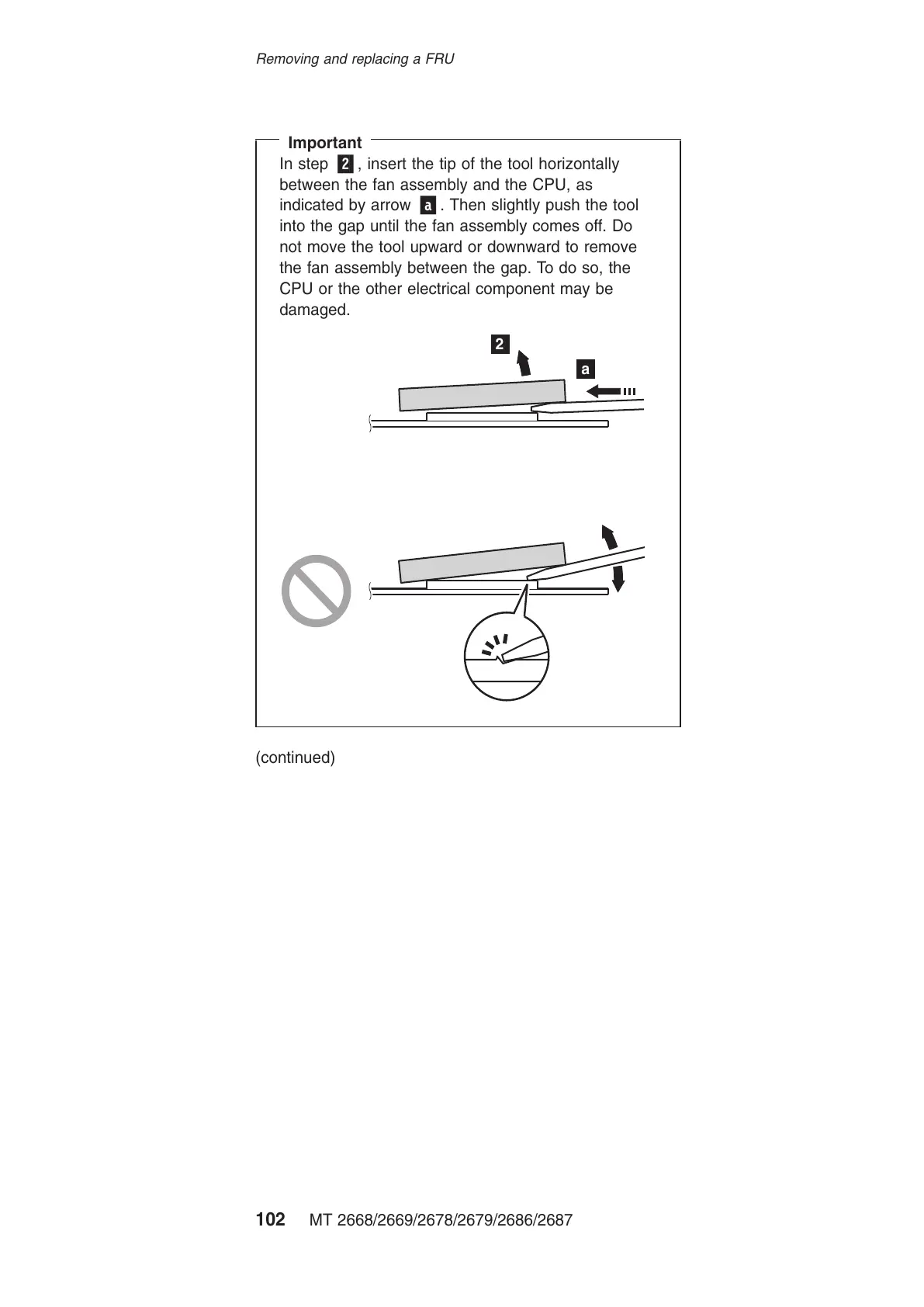

Important
In step 2, insert the tip of the tool horizontally
between the fan assembly and the CPU, as
indicated by arrow a. Then slightly push the tool
into the gap until the fan assembly comes off. Do
not move the tool upward or downward to remove
the fan assembly between the gap. To do so, the
CPU or the other electrical component may be
damaged.
a
2
(continued)
Removing and replacing a FRU
102 MT 2668/2669/2678/2679/2686/2687
