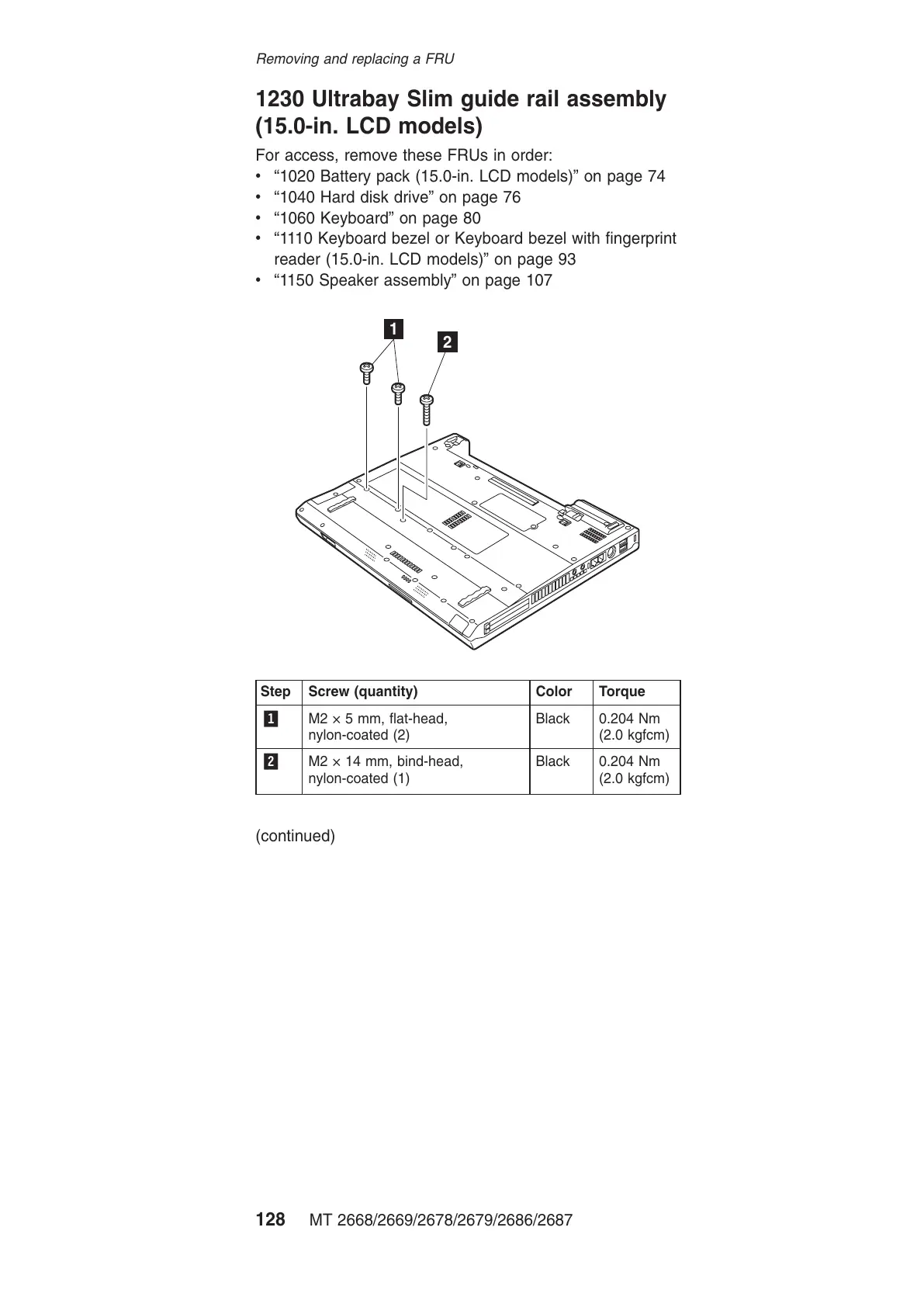

1230 Ultrabay Slim guide rail assembly
(15.0-in. LCD models)
For access, remove these FRUs in order:
v “1020 Battery pack (15.0-in. LCD models)” on page 74
v “1040 Hard disk drive” on page 76
v “1060 Keyboard” on page 80
v “1110 Keyboard bezel or Keyboard bezel with fingerprint
reader (15.0-in. LCD models)” on page 93
v “1150 Speaker assembly” on page 107
2
1
Step Screw (quantity) Color Torque
1 M2 × 5 mm, flat-head,
nylon-coated (2)
Black 0.204 Nm
(2.0
kgfcm)
2 M2 × 14 mm, bind-head,
nylon-coated (1)
Black 0.204 Nm
(2.0
kgfcm)
(continued)
Removing and replacing a FRU
128 MT 2668/2669/2678/2679/2686/2687
