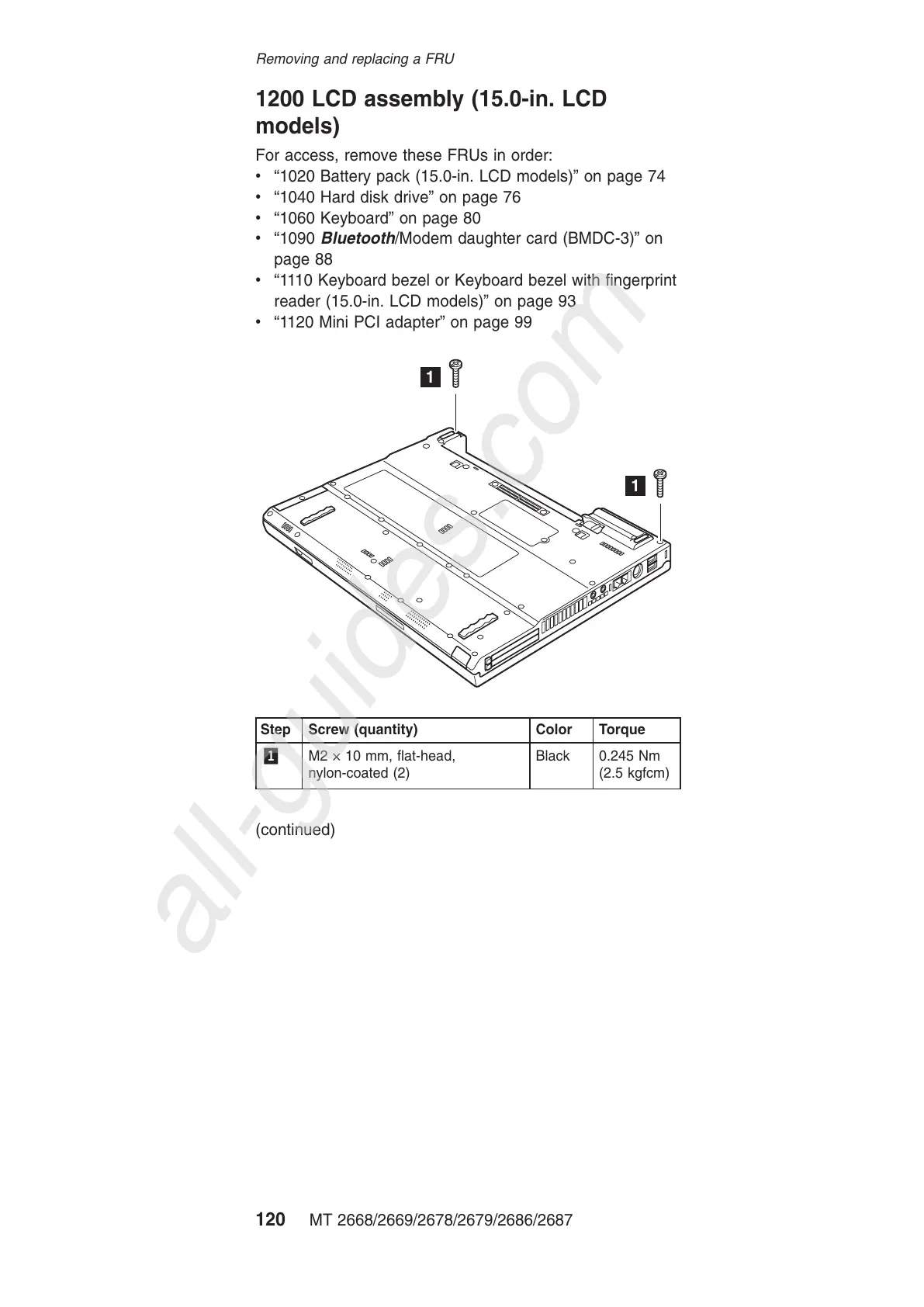

1200 LCD assembly (15.0-in. LCD
models)
For access, remove these FRUs in order:
v “1020 Battery pack (15.0-in. LCD models)” on page 74
v “1040 Hard disk drive” on page 76
v “1060 Keyboard” on page 80
v “1090 Bluetooth/Modem daughter card (BMDC-3)” on
page 88
v “1110 Keyboard bezel or Keyboard bezel with fingerprint
reader (15.0-in. LCD models)” on page 93
v “1120 Mini PCI adapter” on page 99
1
1
Step Screw (quantity) Color Torque
1 M2 × 10 mm, flat-head,
nylon-coated (2)
Black 0.245 Nm
(2.5
kgfcm)
(continued)
Removing and replacing a FRU
120 MT 2668/2669/2678/2679/2686/2687
