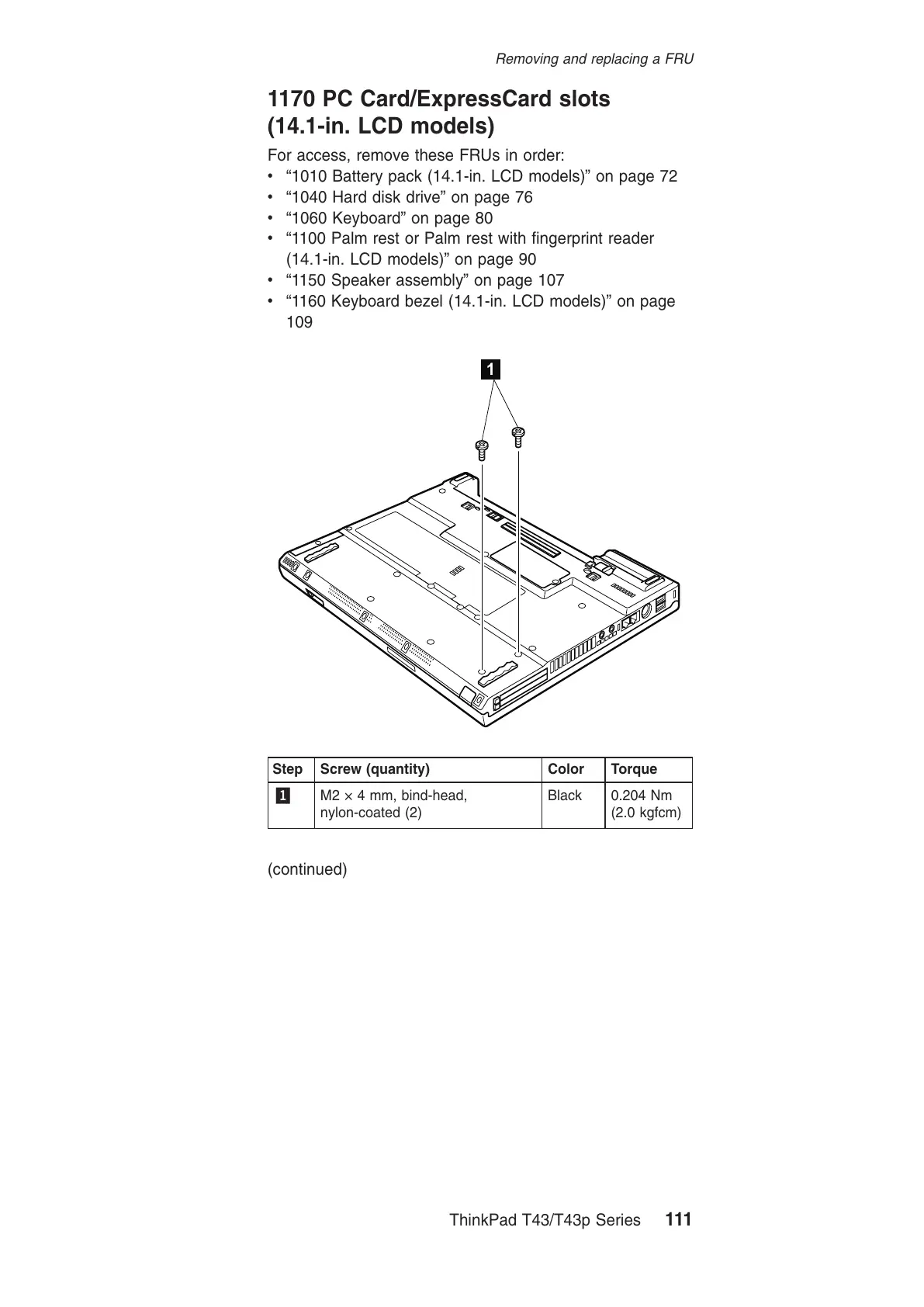

1170 PC Card/ExpressCard slots
(14.1-in. LCD models)
For access, remove these FRUs in order:
v “1010 Battery pack (14.1-in. LCD models)” on page 72
v “1040 Hard disk drive” on page 76
v “1060 Keyboard” on page 80
v “1100 Palm rest or Palm rest with fingerprint reader
(14.1-in. LCD models)” on page 90
v “1150 Speaker assembly” on page 107
v “1160 Keyboard bezel (14.1-in. LCD models)” on page
109
1
Step Screw (quantity) Color Torque
1 M2 × 4 mm, bind-head,
nylon-coated (2)
Black 0.204 Nm
(2.0
kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad T43/T43p Series 111
