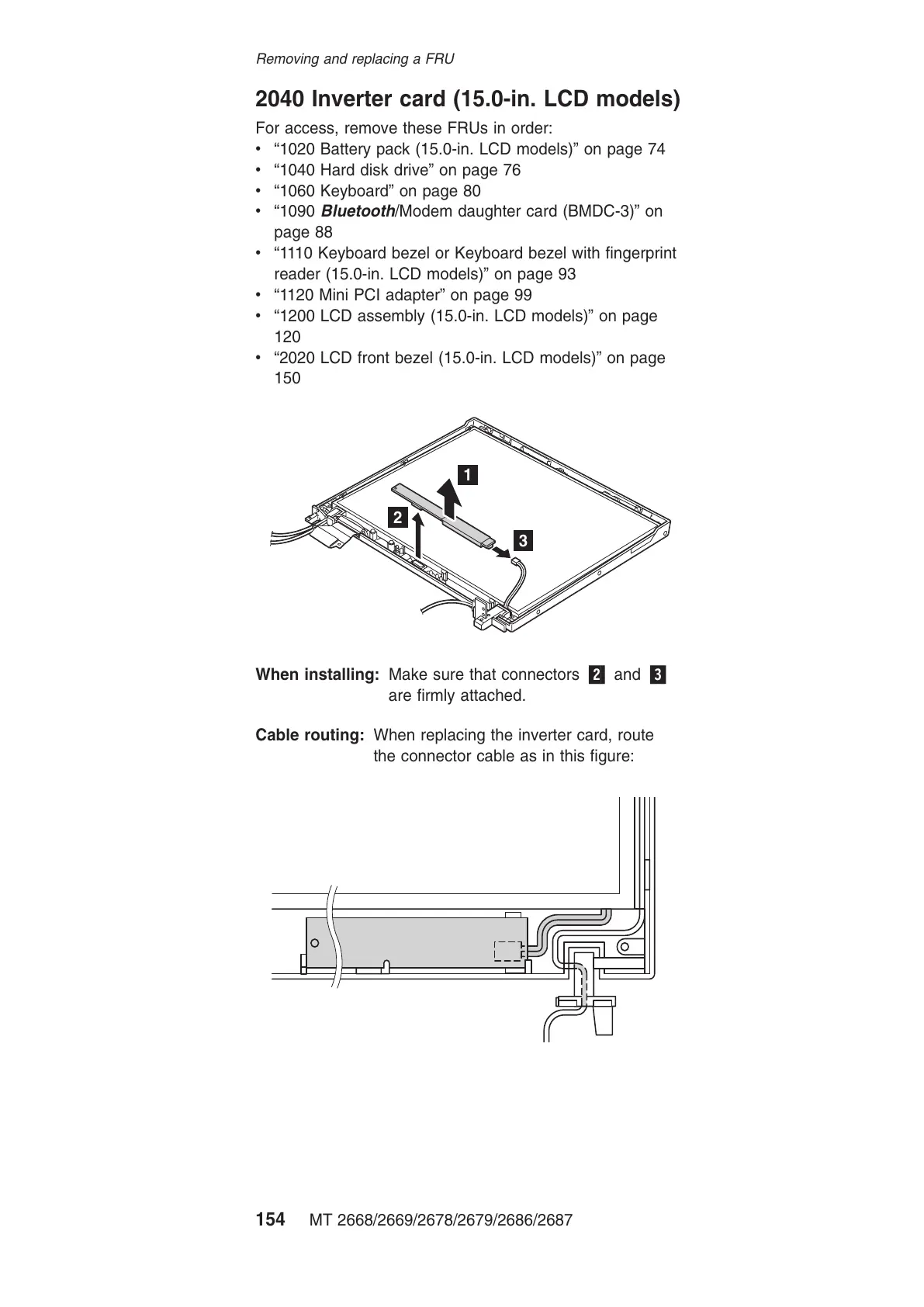

2040 Inverter card (15.0-in. LCD models)
For access, remove these FRUs in order:
v “1020 Battery pack (15.0-in. LCD models)” on page 74
v “1040 Hard disk drive” on page 76
v “1060 Keyboard” on page 80
v “1090 Bluetooth/Modem daughter card (BMDC-3)” on
page 88
v “1110 Keyboard bezel or Keyboard bezel with fingerprint
reader (15.0-in. LCD models)” on page 93
v “1120 Mini PCI adapter” on page 99
v “1200 LCD assembly (15.0-in. LCD models)” on page
120
v “2020 LCD front bezel (15.0-in. LCD models)” on page
150
1
2
3
When installing: Make sure that connectors 2 and 3
are firmly attached.
Cable
routing: When replacing the inverter card, route
the connector cable as in this figure:
Removing and replacing a FRU
154 MT 2668/2669/2678/2679/2686/2687
