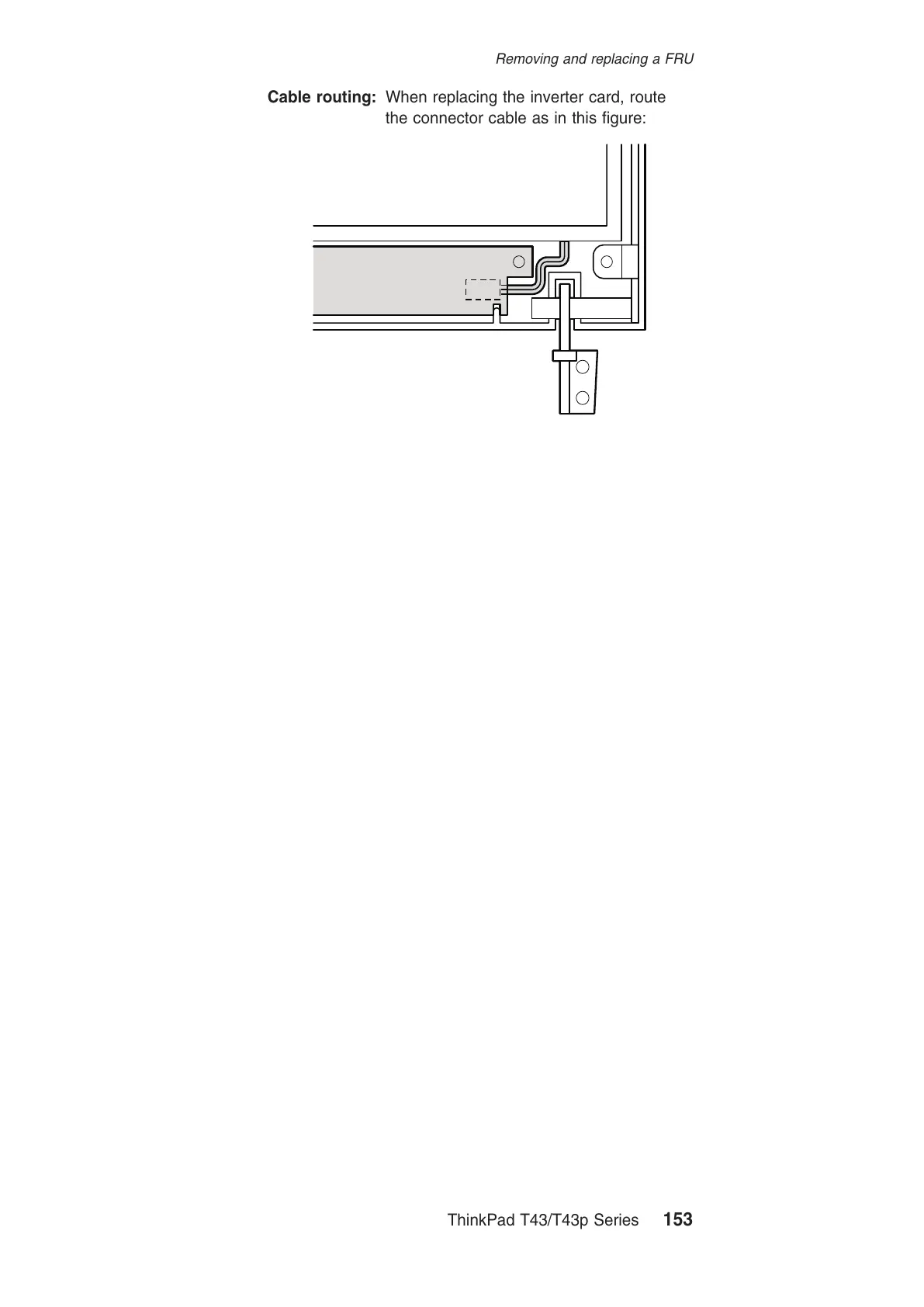

Cable routing: When replacing the inverter card, route

the connector cable as in this figure:

Removing and replacing a FRU

ThinkPad T43/T43p Series 153
