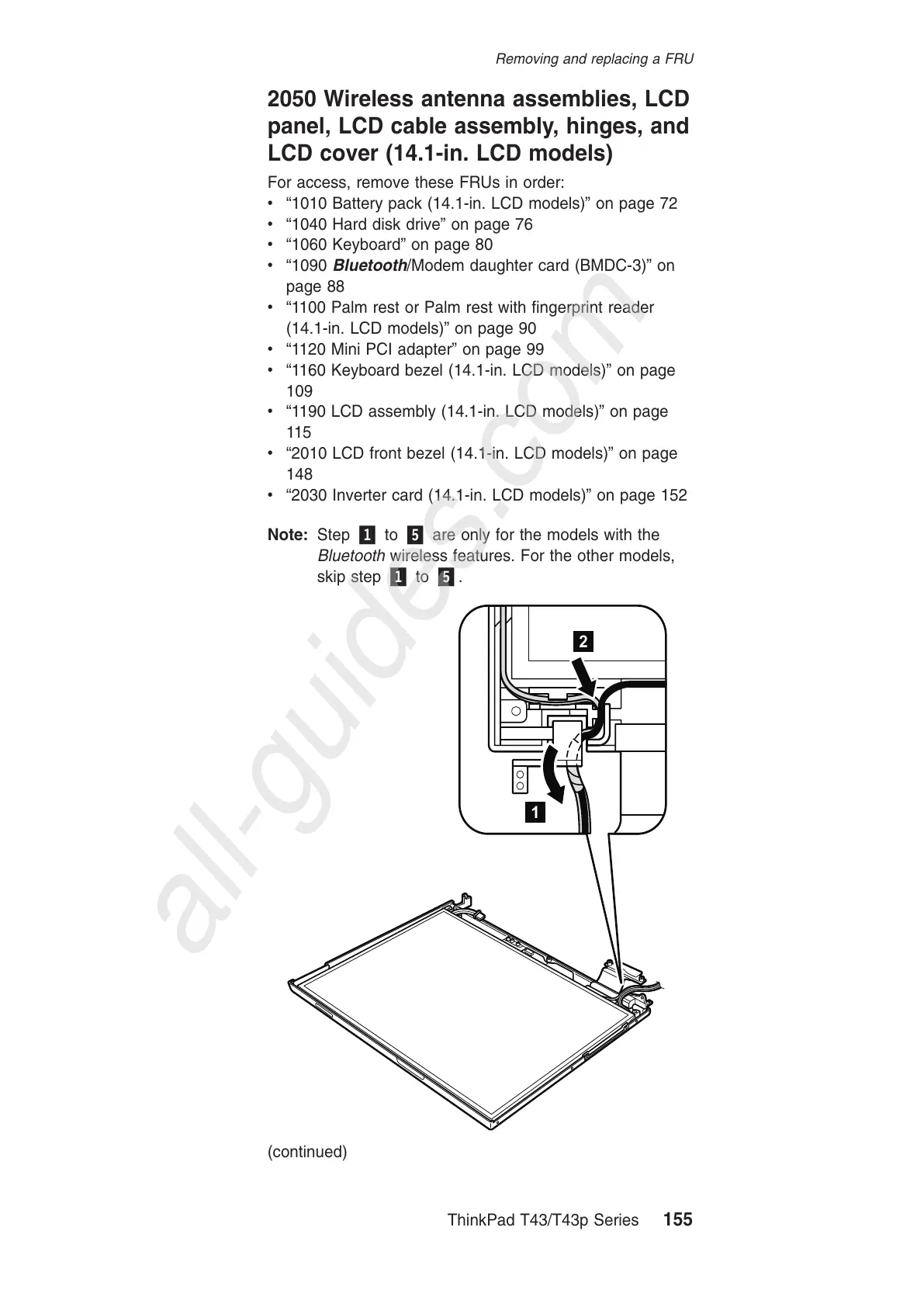

2050 Wireless antenna assemblies, LCD
panel, LCD cable assembly, hinges, and
LCD cover (14.1-in. LCD models)
For access, remove these FRUs in order:
v “1010 Battery pack (14.1-in. LCD models)” on page 72
v “1040 Hard disk drive” on page 76
v “1060 Keyboard” on page 80
v “1090 Bluetooth/Modem daughter card (BMDC-3)” on
page 88
v “1100 Palm rest or Palm rest with fingerprint reader
(14.1-in. LCD models)” on page 90
v “1120 Mini PCI adapter” on page 99
v “1160 Keyboard bezel (14.1-in. LCD models)” on page
109
v “1190 LCD assembly (14.1-in. LCD models)” on page
115
v “2010 LCD front bezel (14.1-in. LCD models)” on page
148
v “2030 Inverter card (14.1-in. LCD models)” on page 152
Note:
Step 1 to 5 are only for the models with the
Bluetooth wireless features. For the other models,
skip step 1 to 5.
2
1
(continued)
Removing and replacing a FRU
ThinkPad T43/T43p Series 155
