HP ThinkPad T43 - 1130 Fan Assembly

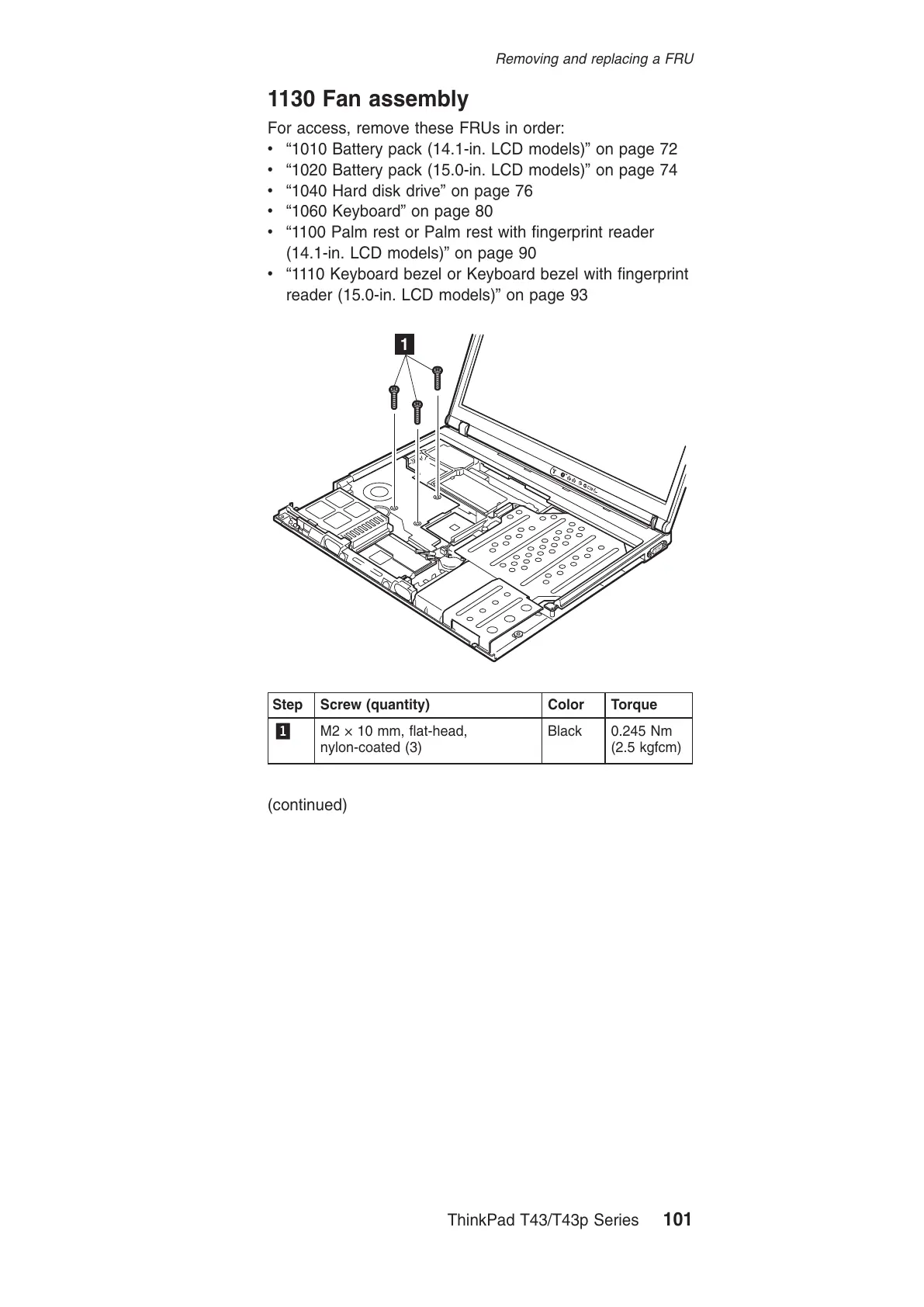

1130 Fan assembly
For access, remove these FRUs in order:
v “1010 Battery pack (14.1-in. LCD models)” on page 72
v “1020 Battery pack (15.0-in. LCD models)” on page 74
v “1040 Hard disk drive” on page 76
v “1060 Keyboard” on page 80
v “1100 Palm rest or Palm rest with fingerprint reader
(14.1-in. LCD models)” on page 90
v “1110 Keyboard bezel or Keyboard bezel with fingerprint
reader (15.0-in. LCD models)” on page 93
1
Step Screw (quantity) Color Torque
1 M2 × 10 mm, flat-head,
nylon-coated (3)
Black 0.245 Nm
(2.5
kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad T43/T43p Series 101
