HP ThinkPad T43 - 1190 LCD Assembly (14.1-In. LCD Models)

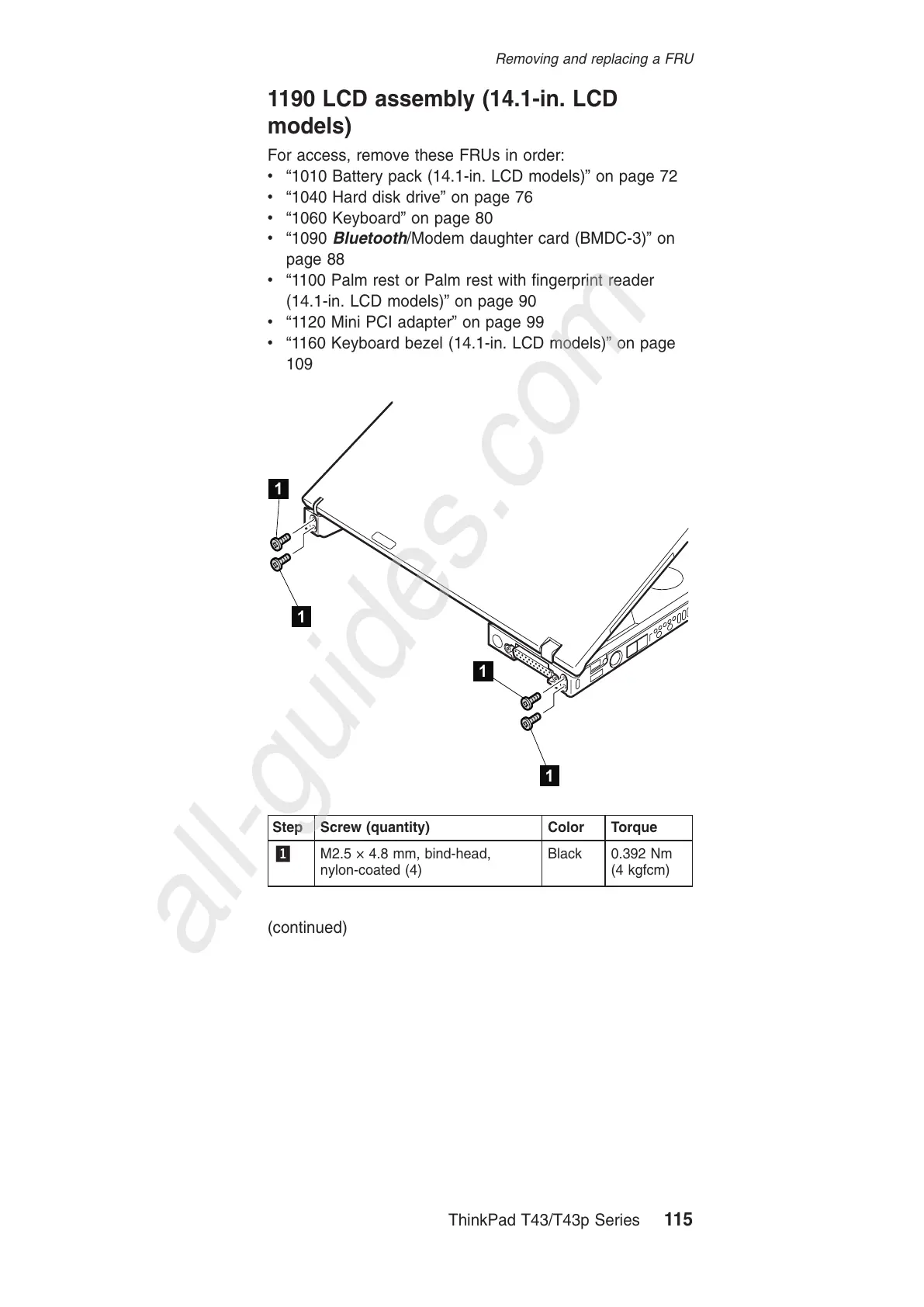

1190 LCD assembly (14.1-in. LCD
models)
For access, remove these FRUs in order:
v “1010 Battery pack (14.1-in. LCD models)” on page 72
v “1040 Hard disk drive” on page 76
v “1060 Keyboard” on page 80
v “1090 Bluetooth/Modem daughter card (BMDC-3)” on
page 88
v “1100 Palm rest or Palm rest with fingerprint reader
(14.1-in. LCD models)” on page 90
v “1120 Mini PCI adapter” on page 99
v “1160 Keyboard bezel (14.1-in. LCD models)” on page
109
1
1
1
1
Step Screw (quantity) Color Torque
1 M2.5 × 4.8 mm, bind-head,
nylon-coated (4)
Black 0.392 Nm
(4
kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad T43/T43p Series 115
