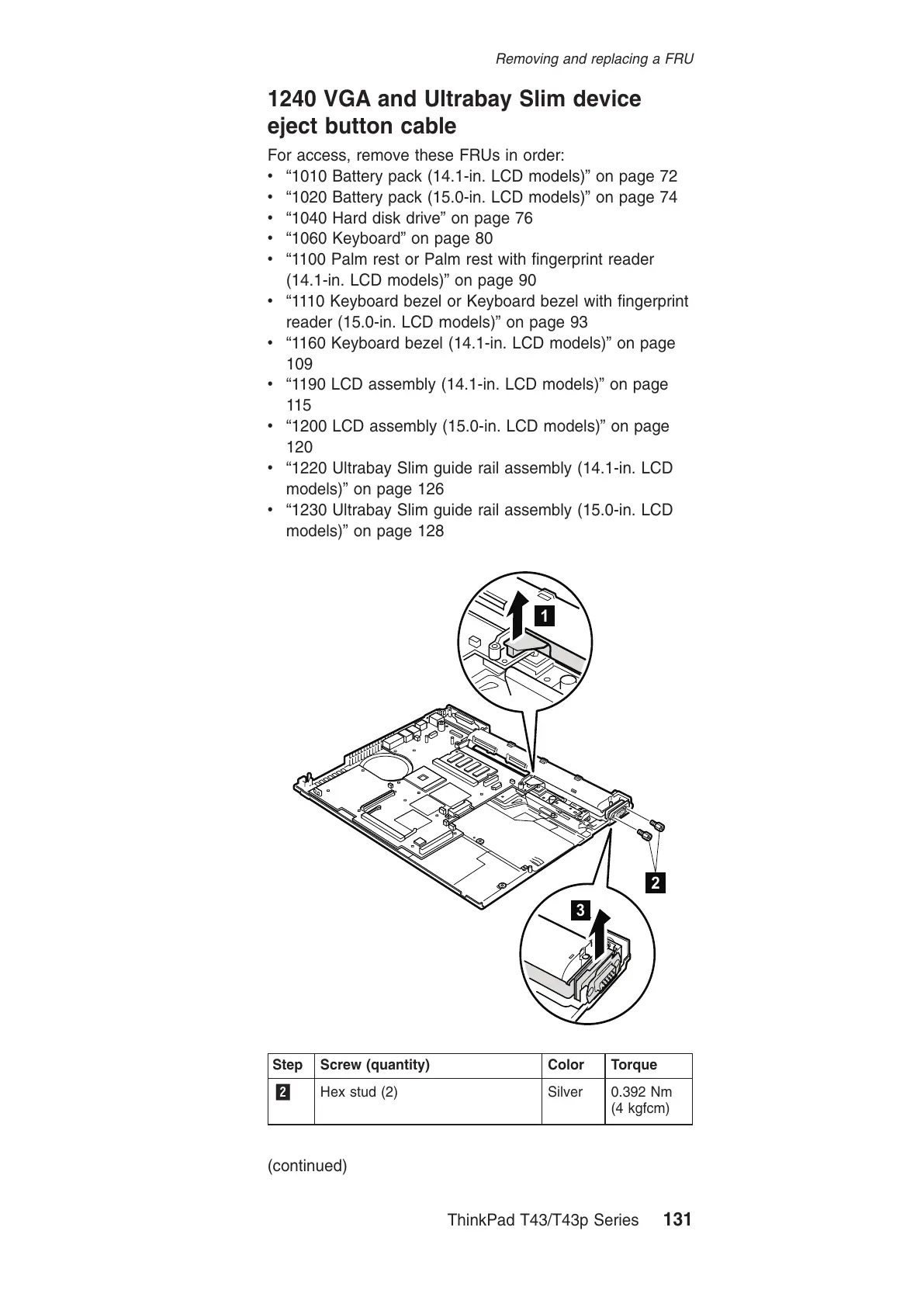

1240 VGA and Ultrabay Slim device
eject button cable
For access, remove these FRUs in order:
v “1010 Battery pack (14.1-in. LCD models)” on page 72
v “1020 Battery pack (15.0-in. LCD models)” on page 74
v “1040 Hard disk drive” on page 76
v “1060 Keyboard” on page 80
v “1100 Palm rest or Palm rest with fingerprint reader
(14.1-in. LCD models)” on page 90
v “1110 Keyboard bezel or Keyboard bezel with fingerprint
reader (15.0-in. LCD models)” on page 93
v “1160 Keyboard bezel (14.1-in. LCD models)” on page
109
v “1190 LCD assembly (14.1-in. LCD models)” on page
115
v “1200 LCD assembly (15.0-in. LCD models)” on page
120
v “1220 Ultrabay Slim guide rail assembly (14.1-in. LCD
models)” on page 126
v “1230 Ultrabay Slim guide rail assembly (15.0-in. LCD
models)” on page 128
1
3
2
Step Screw (quantity) Color Torque
2 Hex stud (2) Silver 0.392 Nm
(4
kgfcm)
(continued)
Removing and replacing a FRU
ThinkPad T43/T43p Series 131
