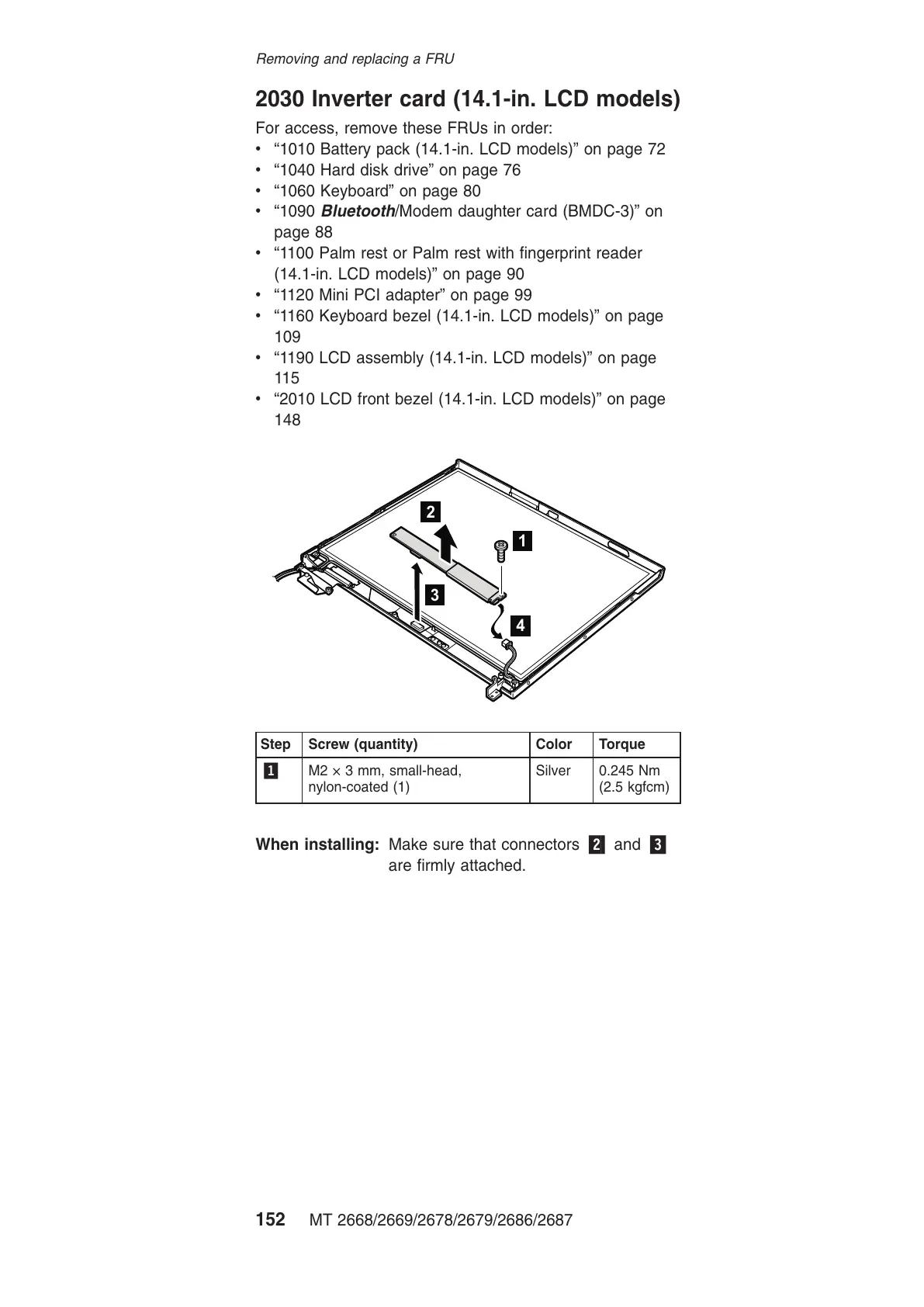

2030 Inverter card (14.1-in. LCD models)
For access, remove these FRUs in order:
v “1010 Battery pack (14.1-in. LCD models)” on page 72
v “1040 Hard disk drive” on page 76
v “1060 Keyboard” on page 80
v “1090 Bluetooth/Modem daughter card (BMDC-3)” on
page 88
v “1100 Palm rest or Palm rest with fingerprint reader
(14.1-in. LCD models)” on page 90
v “1120 Mini PCI adapter” on page 99
v “1160 Keyboard bezel (14.1-in. LCD models)” on page
109
v “1190 LCD assembly (14.1-in. LCD models)” on page
115
v “2010 LCD front bezel (14.1-in. LCD models)” on page
148
1
2
3
4
Step Screw (quantity) Color Torque
1 M2 × 3 mm, small-head,
nylon-coated (1)
Silver 0.245 Nm
(2.5
kgfcm)
When installing: Make sure that connectors 2 and 3
are firmly attached.
Removing and replacing a FRU
152 MT 2668/2669/2678/2679/2686/2687
