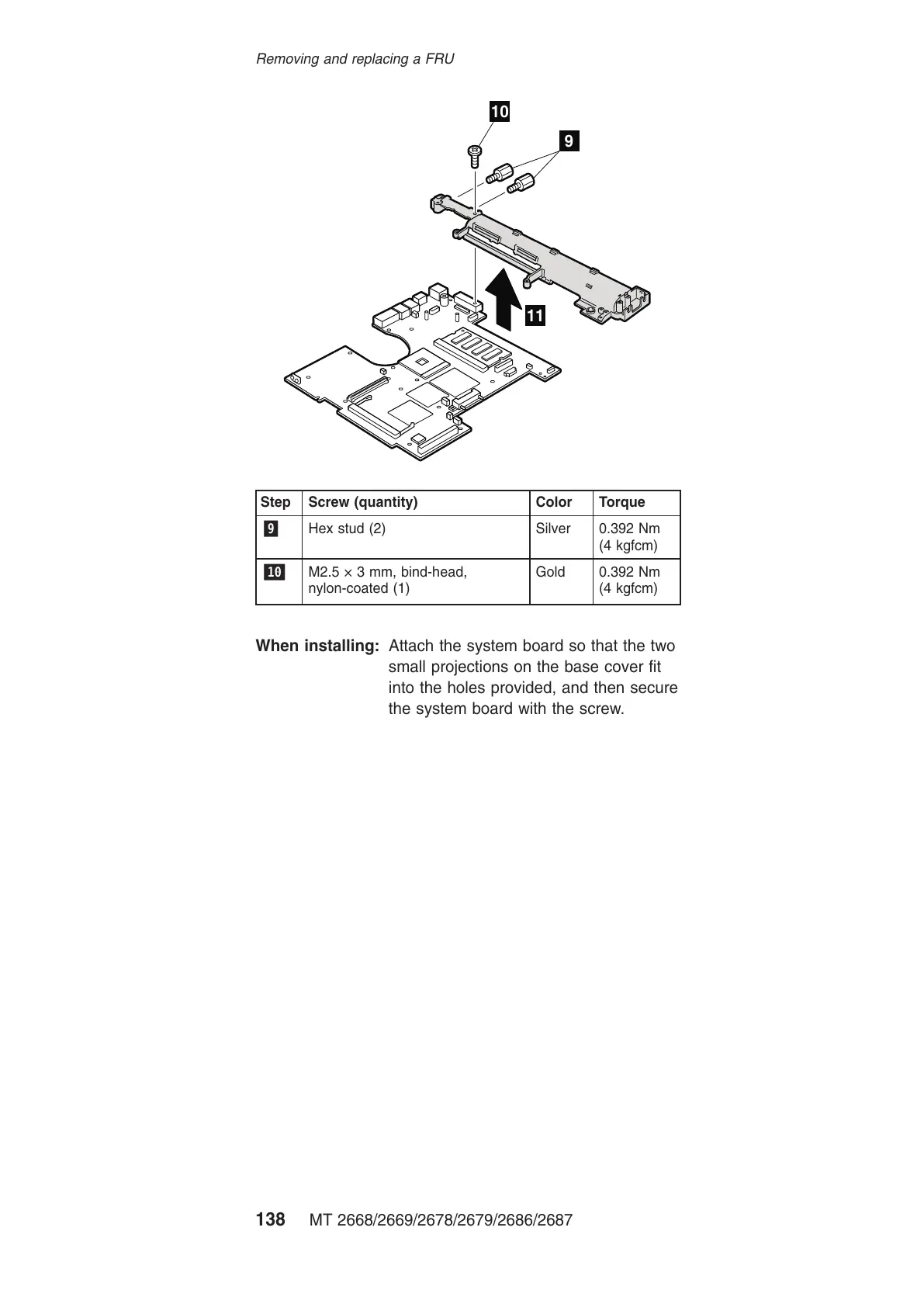

10
9
11
Step Screw (quantity) Color Torque
9 Hex stud (2) Silver 0.392 Nm
(4
kgfcm)
10 M2.5 × 3 mm, bind-head,
nylon-coated (1)
Gold 0.392 Nm
(4
kgfcm)
When installing: Attach the system board so that the two
small projections on the base cover fit
into the holes provided, and then secure
the system board with the screw.
Removing and replacing a FRU
138 MT 2668/2669/2678/2679/2686/2687
