Step Screw (quantity) Color Torque
10 Hex stud (2) Silver 0.392 Nm
(4
kgfcm)
11 M2.5 × 3 mm, flat-head,
nylon-coated (1)
Gold 0.392 Nm
(4
kgfcm)

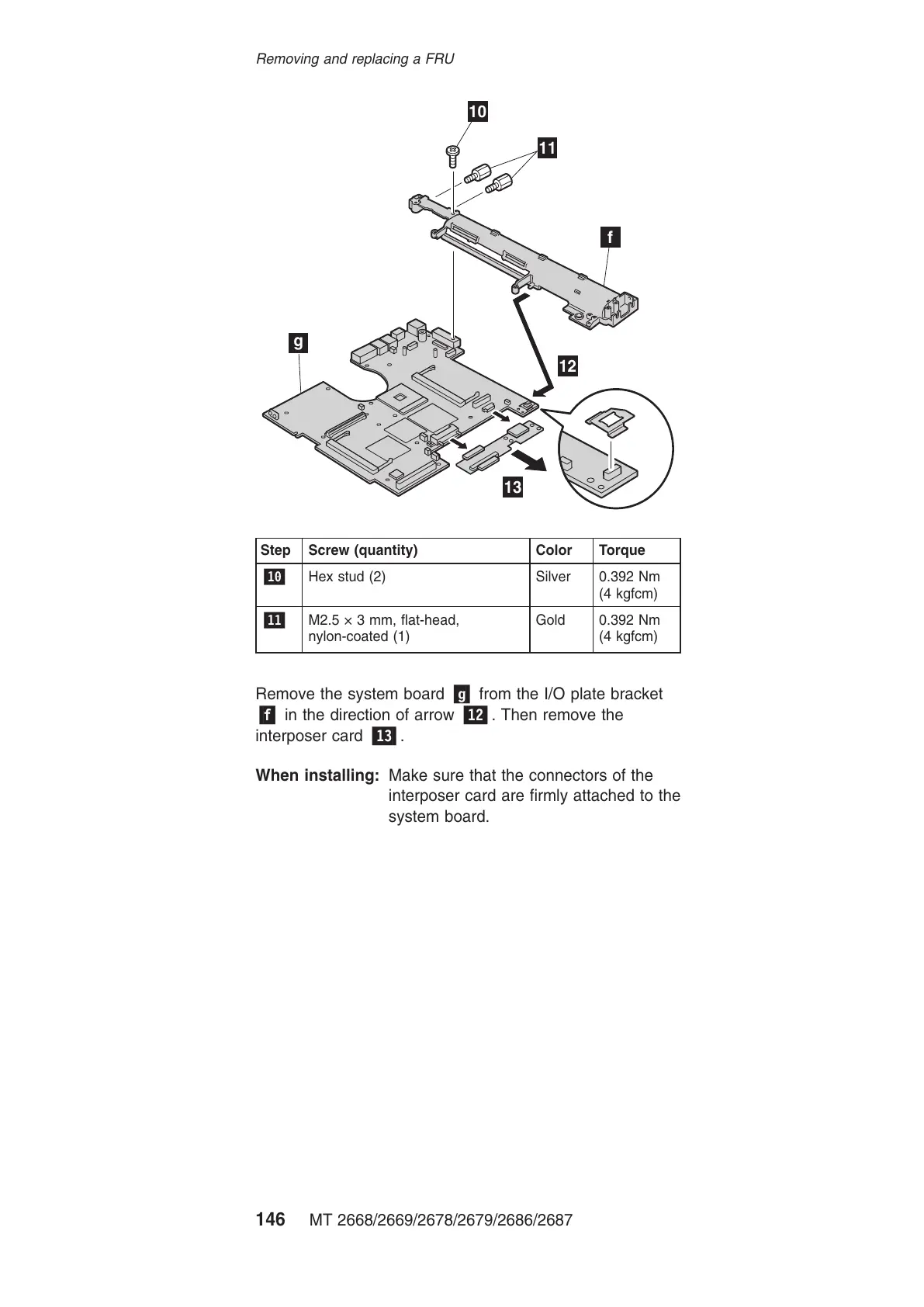

Remove the system board g from the I/O plate bracket
f in the direction of arrow 12. Then remove the
interposer card 13.
When installing: Make sure that the connectors of the
interposer card are firmly attached to the
system board.
Removing and replacing a FRU
146 MT 2668/2669/2678/2679/2686/2687
