HP ThinkPad T43

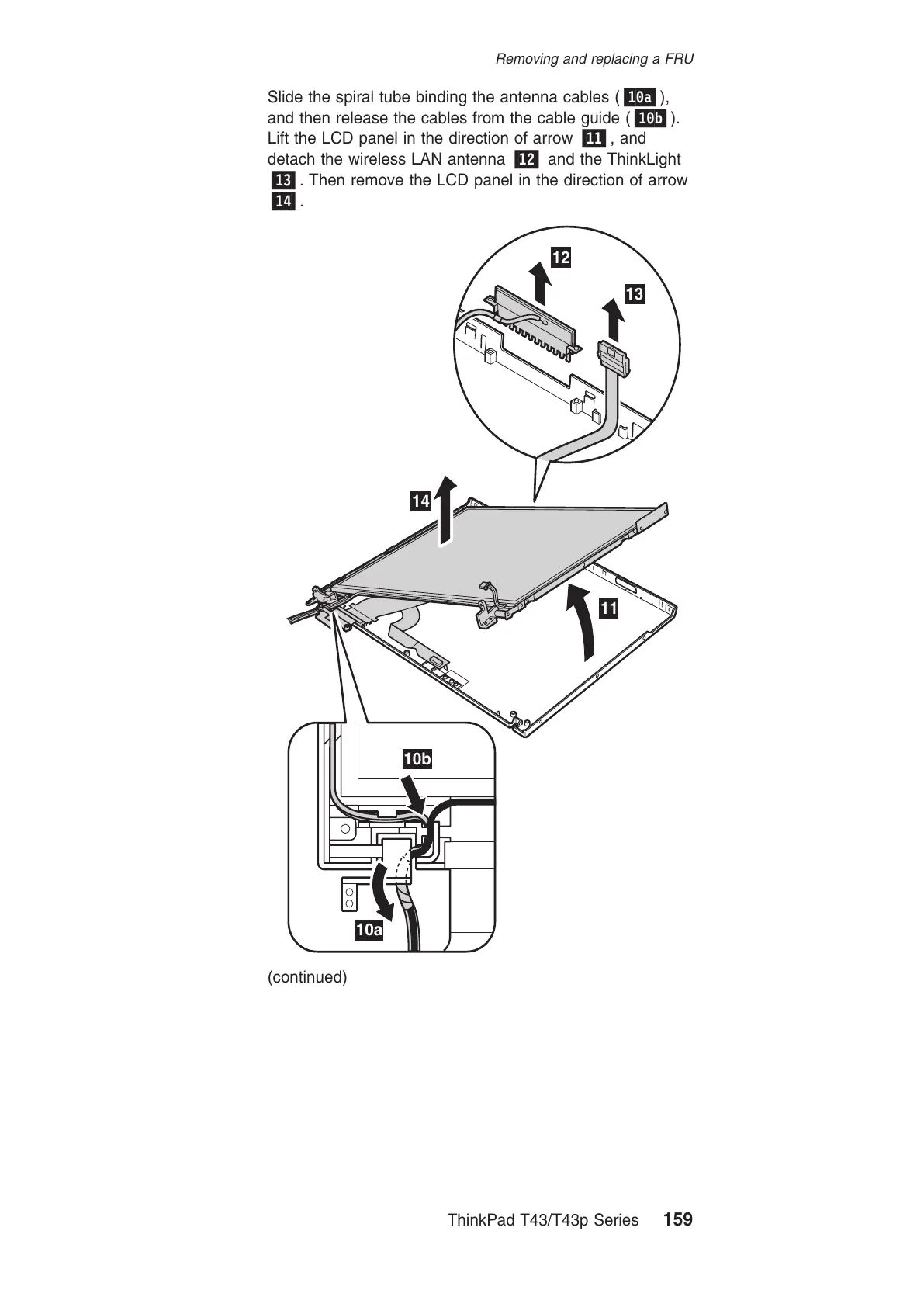

Slide the spiral tube binding the antenna cables (10a),
and then release the cables from the cable guide (10b).
Lift the LCD panel in the direction of arrow 11, and
detach the wireless LAN antenna 12 and the ThinkLight
13. Then remove the LCD panel in the direction of arrow
14.
11
14
13
12
10b
10a
(continued)
Removing and replacing a FRU
ThinkPad T43/T43p Series 159
