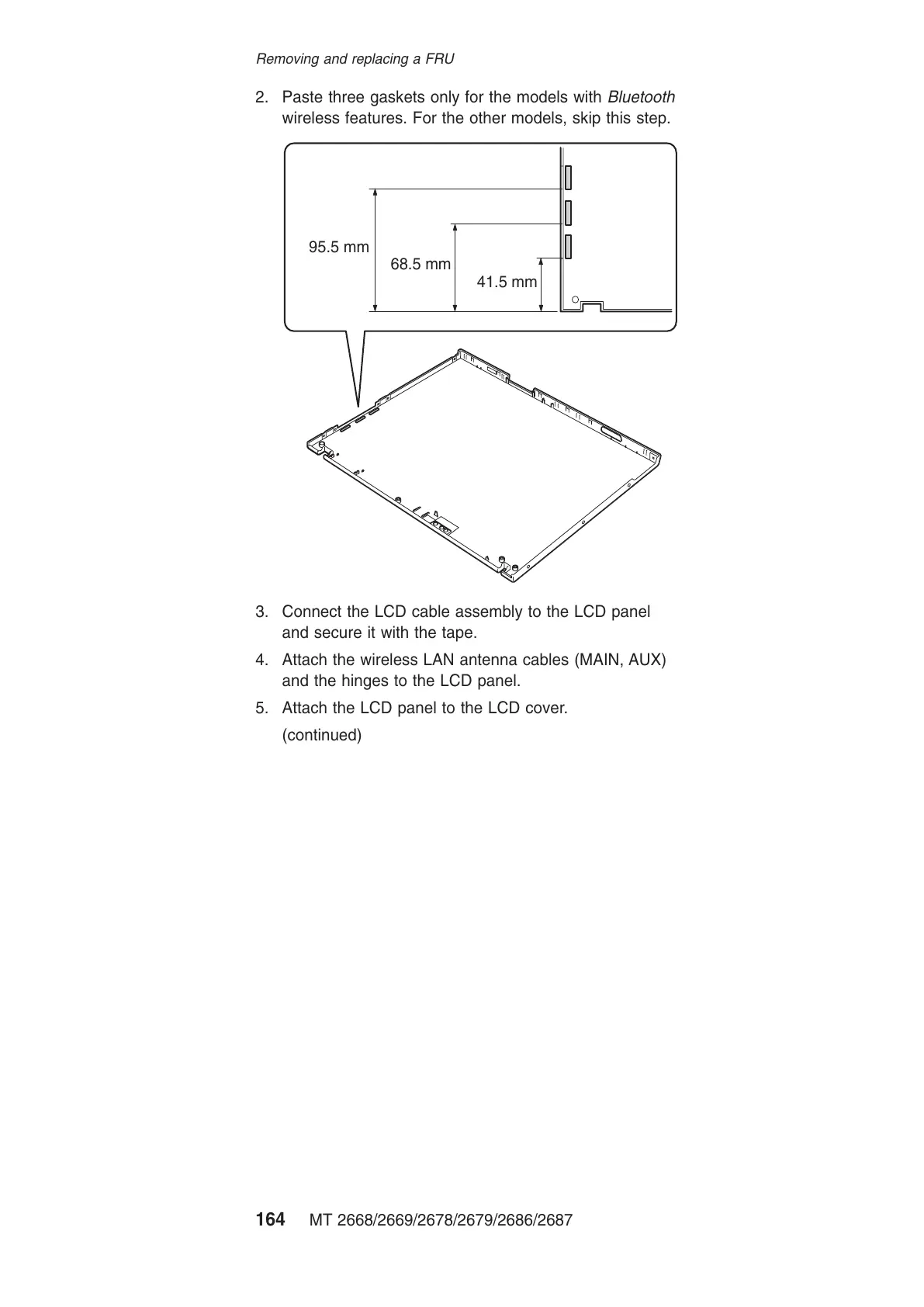

2. Paste three gaskets only for the models with Bluetooth
wireless features. For the other models, skip this step.
41.5 mm
68.5 mm
95.5 mm
3. Connect the LCD cable assembly to the LCD panel
and secure it with the tape.
4. Attach the wireless LAN antenna cables (MAIN, AUX)
and the hinges to the LCD panel.
5. Attach the LCD panel to the LCD cover.
(continued)
Removing and replacing a FRU
164 MT 2668/2669/2678/2679/2686/2687
