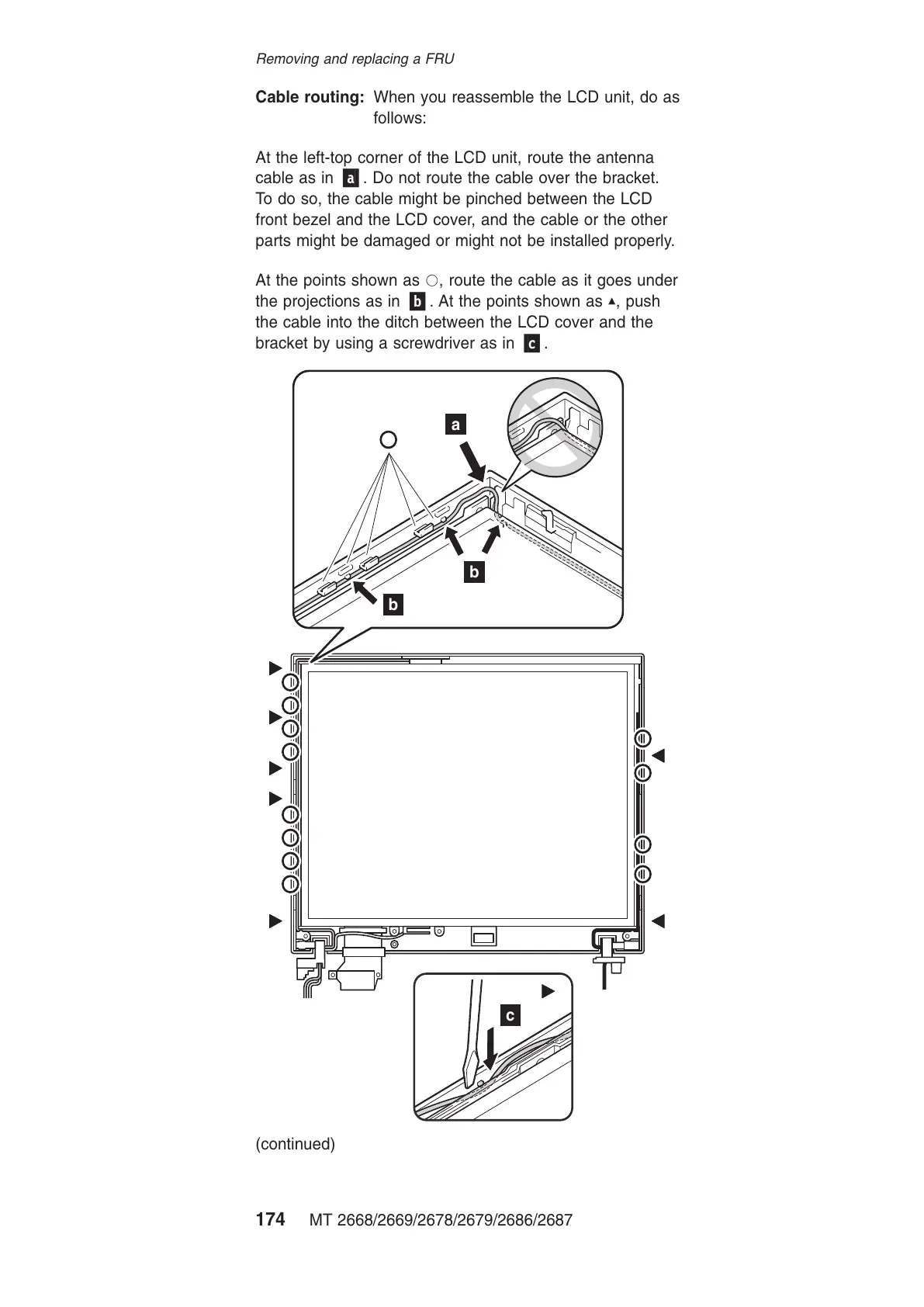

Cable routing: When you reassemble the LCD unit, do as
follows:
At the left-top corner of the LCD unit, route the antenna
cable as in a. Do not route the cable over the bracket.
To do so, the cable might be pinched between the LCD
front bezel and the LCD cover, and the cable or the other
parts might be damaged or might not be installed properly.
At the points shown as V, route the cable as it goes under
the projections as in b. At the points shown as , push
the cable into the ditch between the LCD cover and the
bracket by using a screwdriver as in c.
c
a
b
b
(continued)
Removing and replacing a FRU
174 MT 2668/2669/2678/2679/2686/2687
