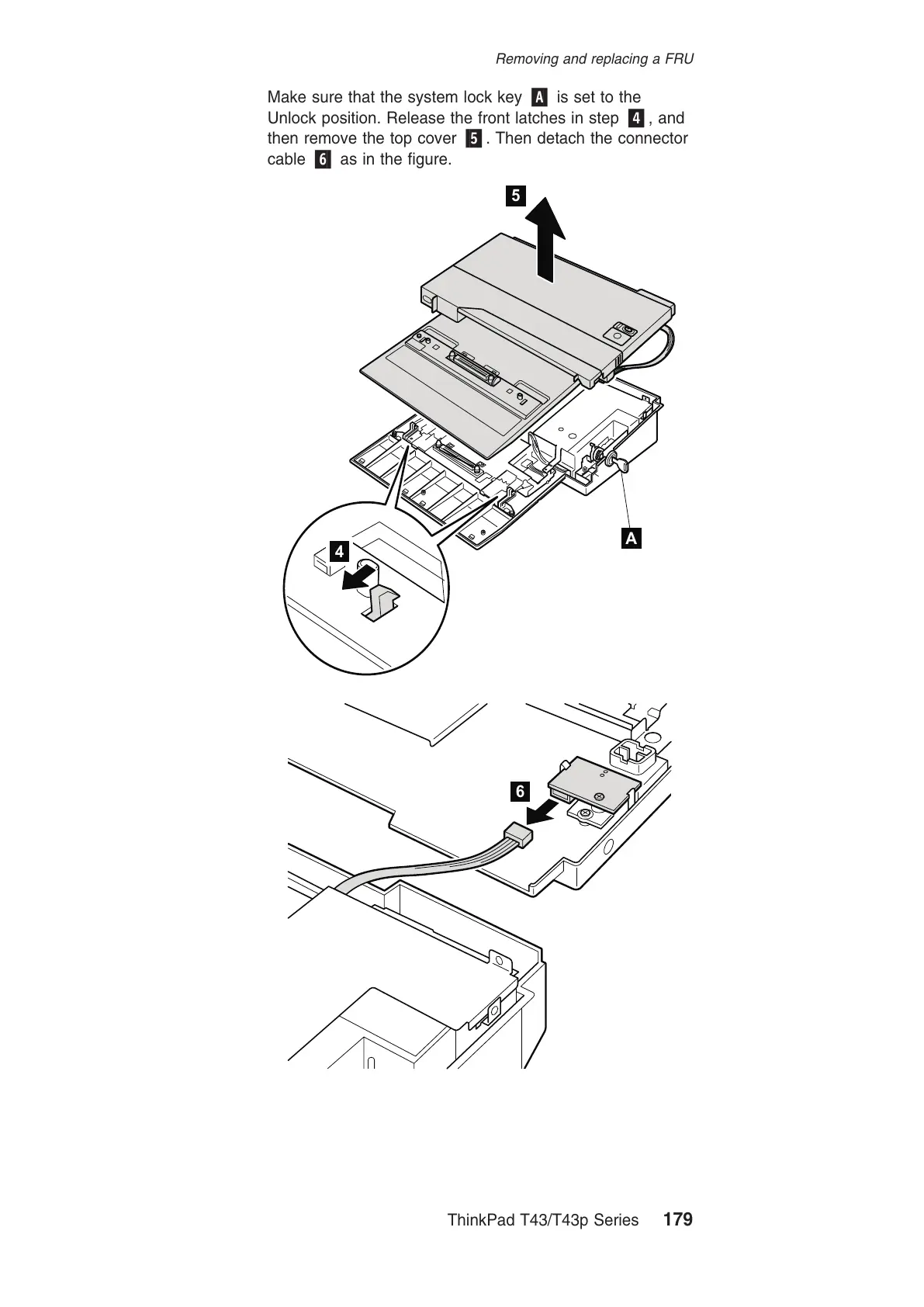

A
is
set
to
the
Unlock
position.
Release
the
front
latches
in
step
4
,
and
then
remove
the
top
cover
5
.
Then
detach
the
connector
cable
6
as
in
the
figure.
4
5
A
6
Removing
and
replacing
a
FRU
ThinkPad
T43/T43p
Series
179
