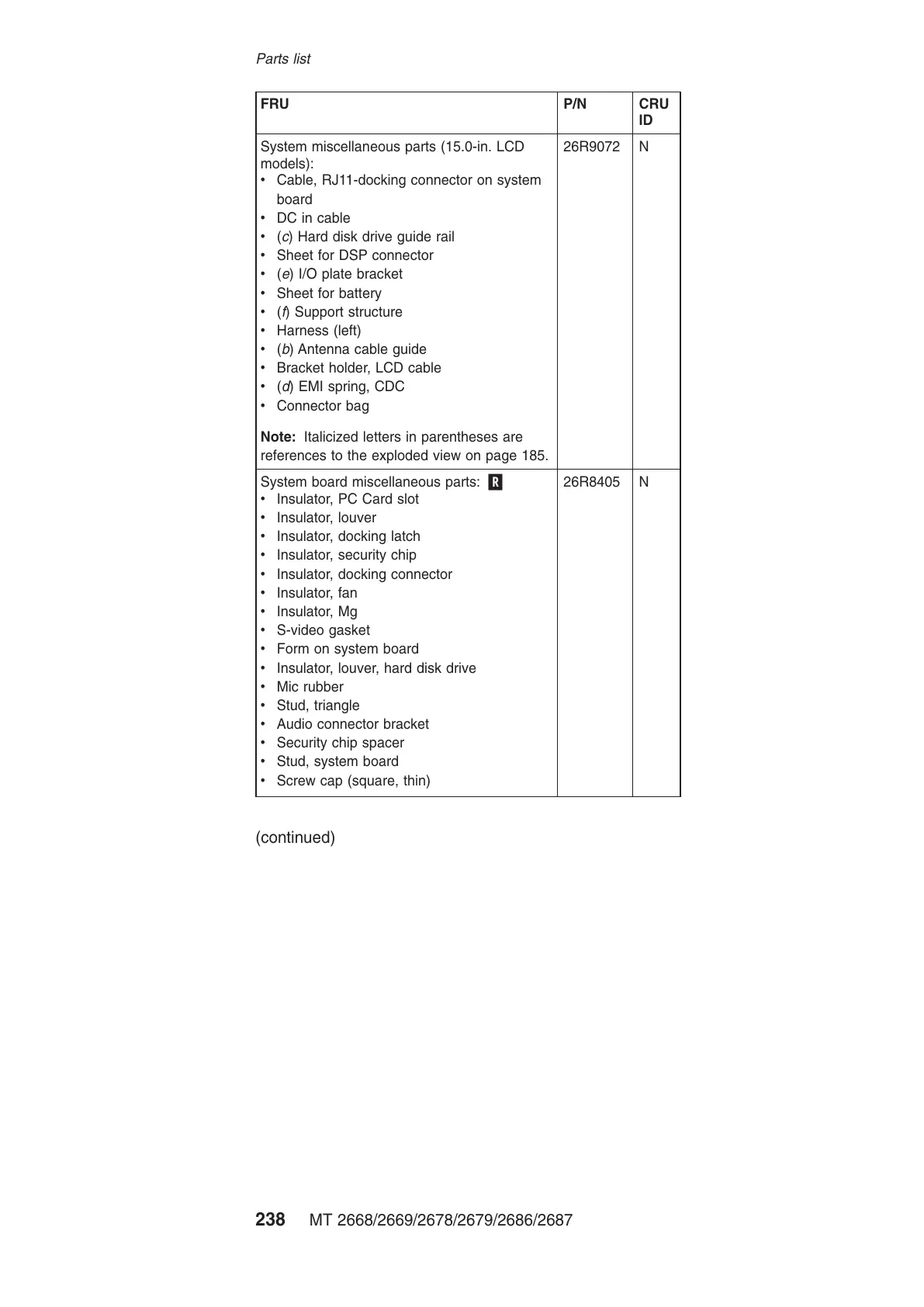

FRU P/N CRU
ID
System miscellaneous parts (15.0-in. LCD
models):
v Cable, RJ11-docking connector on system
board
v DC in cable
v (c) Hard disk drive guide rail
v Sheet for DSP connector
v (e) I/O plate bracket
v Sheet for battery
v (f) Support structure
v Harness (left)
v (b) Antenna cable guide
v Bracket holder, LCD cable
v (d) EMI spring, CDC
v Connector bag
Note:
Italicized letters in parentheses are
references to the exploded view on page 185.
26R9072 N
System board miscellaneous parts: R
v Insulator, PC Card slot
v Insulator, louver
v Insulator, docking latch
v Insulator, security chip
v Insulator, docking connector
v Insulator, fan
v Insulator, Mg
v S-video gasket
v Form on system board
v Insulator, louver, hard disk drive
v Mic rubber
v Stud, triangle
v Audio connector bracket
v Security chip spacer
v Stud, system board
v Screw cap (square, thin)
26R8405 N
(continued)
Parts list
238 MT 2668/2669/2678/2679/2686/2687
