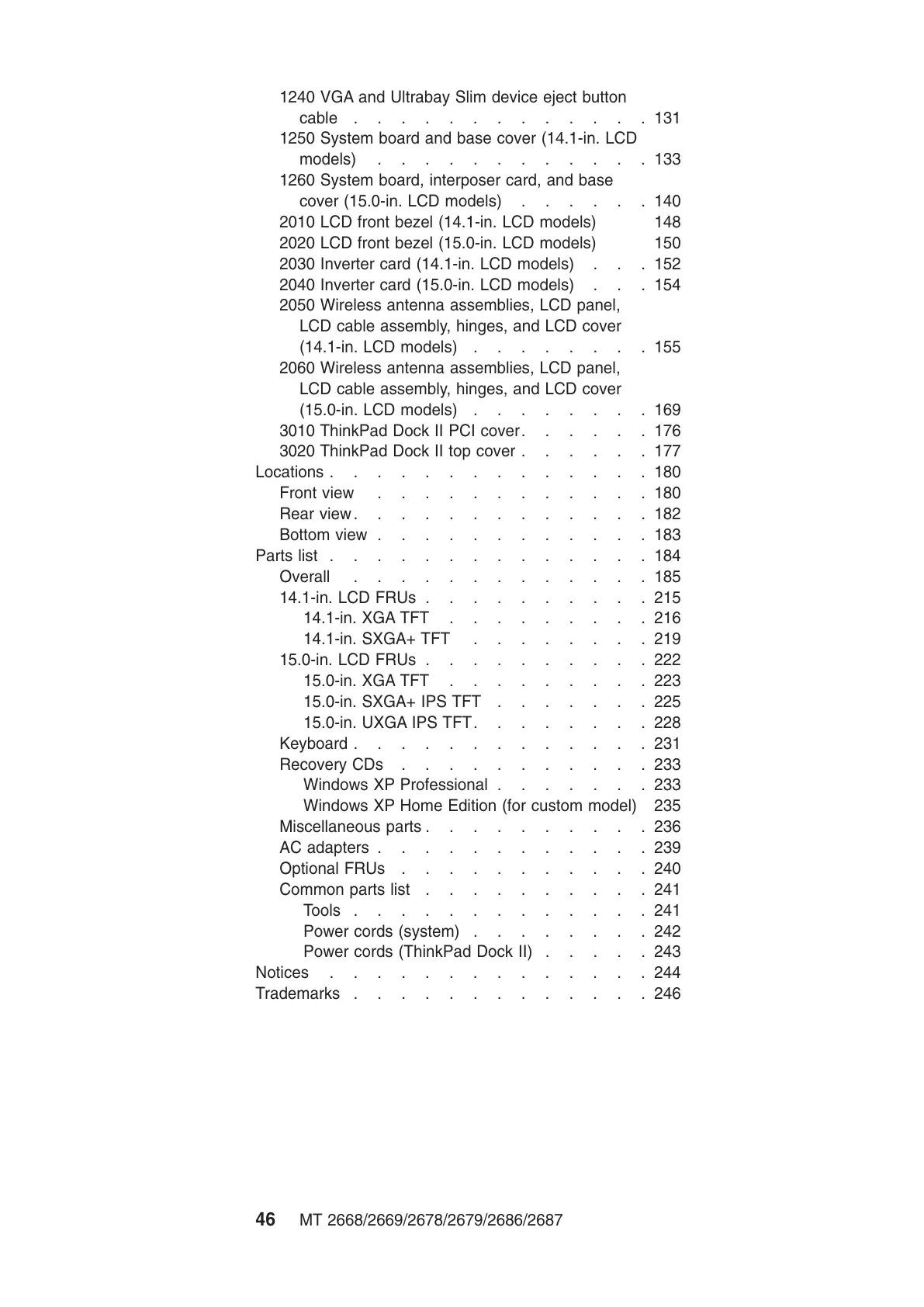

1240 VGA and Ultrabay Slim device eject button
cable . . . . . . . . . . . . . 131
1250 System board and base cover (14.1-in. LCD
models) . . . . . . . . . . . . 133
1260 System board, interposer card, and base
cover (15.0-in. LCD models) . . . . . . 140
2010 LCD front bezel (14.1-in. LCD models) 148
2020 LCD front bezel (15.0-in. LCD models) 150
2030 Inverter card (14.1-in. LCD models) . . . 152
2040 Inverter card (15.0-in. LCD models) . . . 154
2050 Wireless antenna assemblies, LCD panel,
LCD cable assembly, hinges, and LCD cover
(14.1-in. LCD models) . . . . . . . . 155
2060 Wireless antenna assemblies, LCD panel,
LCD cable assembly, hinges, and LCD cover
(15.0-in. LCD models) . . . . . . . . 169
3010 ThinkPad Dock II PCI cover . . . . . . 176
3020 ThinkPad Dock II top cover . . . . . . 177
Locations . . . . . . . . . . . . . . 180
Front view . . . . . . . . . . . . 180
Rear view . . . . . . . . . . . . . 182
Bottom view . . . . . . . . . . . . 183
Parts list . . . . . . . . . . . . . . 184
Overall . . . . . . . . . . . . . 185
14.1-in. LCD FRUs . . . . . . . . . . 215
14.1-in. XGA TFT . . . . . . . . . 216
14.1-in. SXGA+ TFT . . . . . . . . 219
15.0-in. LCD FRUs . . . . . . . . . . 222
15.0-in. XGA TFT . . . . . . . . . 223
15.0-in. SXGA+ IPS TFT . . . . . . . 225
15.0-in. UXGA IPS TFT . . . . . . . . 228
Keyboard . . . . . . . . . . . . . 231
Recovery CDs . . . . . . . . . . . 233
Windows XP Professional . . . . . . . 233
Windows XP Home Edition (for custom model) 235
Miscellaneous parts . . . . . . . . . . 236
AC adapters . . . . . . . . . . . . 239
Optional FRUs . . . . . . . . . . . 240
Common parts list . . . . . . . . . . 241
Tools . . . . . . . . . . . . . 241
Power cords (system) . . . . . . . . 242
Power cords (ThinkPad Dock II) . . . . . 243
Notices . . . . . . . . . . . . . . 244
Trademarks . . . . . . . . . . . . . 246
46 MT 2668/2669/2678/2679/2686/2687
