HP TOUCHSMART 9100 Maintenance And Service Guide

14.

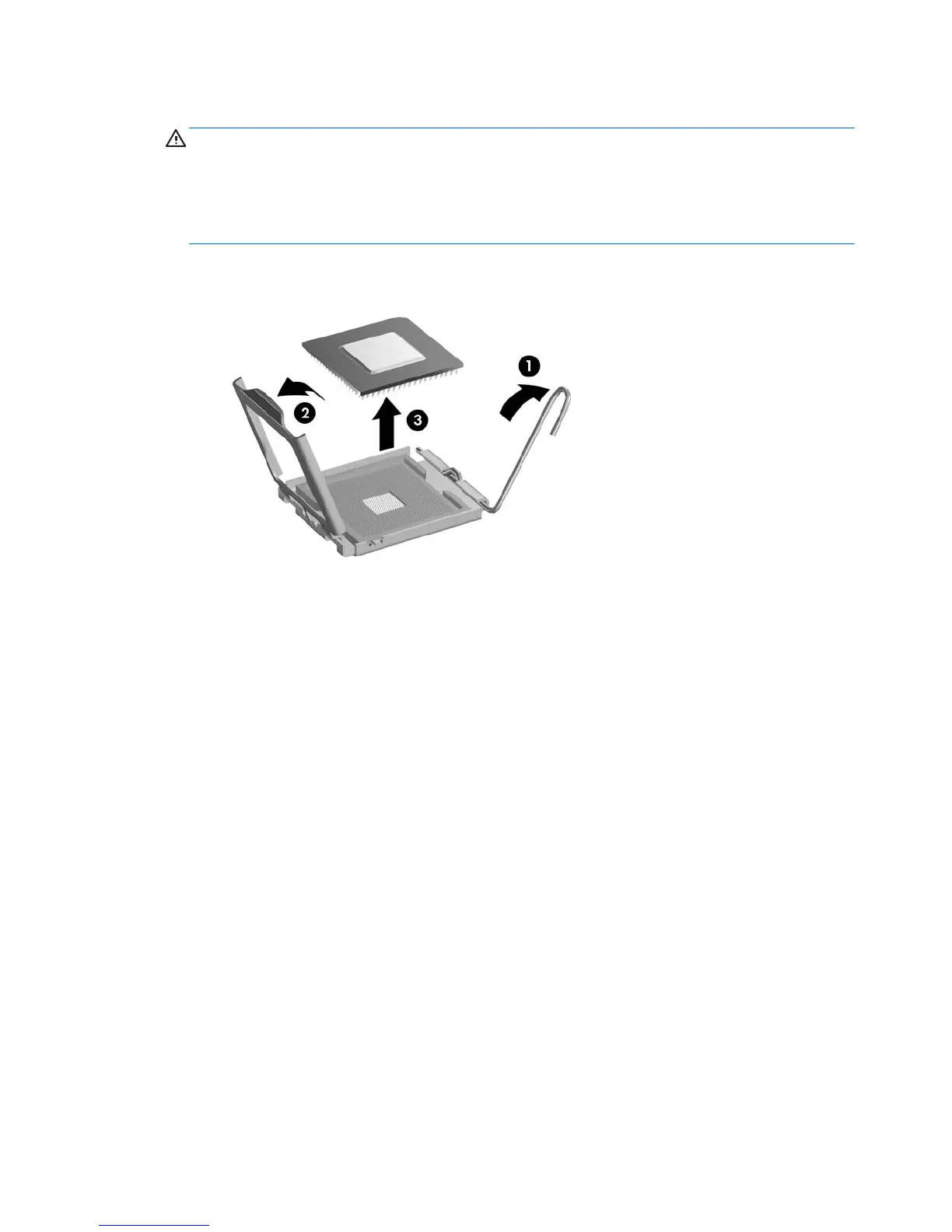

Carefully lift the processor from the socket (3).
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and
handling them could cause irreparable damage. Once pins are damaged it may be necessary to
replace the system board.
CAUTION: The heat sink must be installed within 24 hours of installing the processor to prevent
damage to the processor’s solder connections.
To install a new processor:
1. Place the processor in its socket and close the retainer.
2. Secure the locking lever.
If reusing the existing heat sink, go to step 3.
If using a new heat sink, go to step 6.
3. If reusing the existing heat sink, clean the bottom of the heat sink with the alcohol pad provided in
the spares kit.
4. Apply the thermal material provided in the spares kit to the top of the processor and install the
heat sink atop the processor.
5. If using a new heat sink, remove the protective covering from the bottom of the heat sink and
place it in position atop the processor.
40 Chapter 4 Removal and Replacement Procedures

HP TOUCHSMART 9100 Specifications

General

Processor cache	2 MB
Processor cores	2
Processor family	Intel® Core™2 Duo
Processor frequency	2.1 GHz
Processor cache type	L3
Processor manufacturer	Intel
Processor front side bus	800 MHz
Chassis type	All-in-One
Display included	Yes
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Graphics card family	NVIDIA
Floppy drive installed	No
Parallel ports quantity	0
Maximum graphics card memory	- MB
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Number of processors installed	1
Internal memory	4 GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
HDD interface	SATA
Optical drive type	DVD Super Multi
Discrete graphics card model	NVIDIA GeForce 200
Operating system installed	Windows 7 Professional
USB 2.0 ports quantity	5
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Black
Country of origin	China

Weight and Dimensions

Depth (with stand)	72 mm
Width (with stand)	579 mm
Height (with stand)	447 mm
Weight (with stand)	11500 g
