12 User Guide (Features may vary by model)

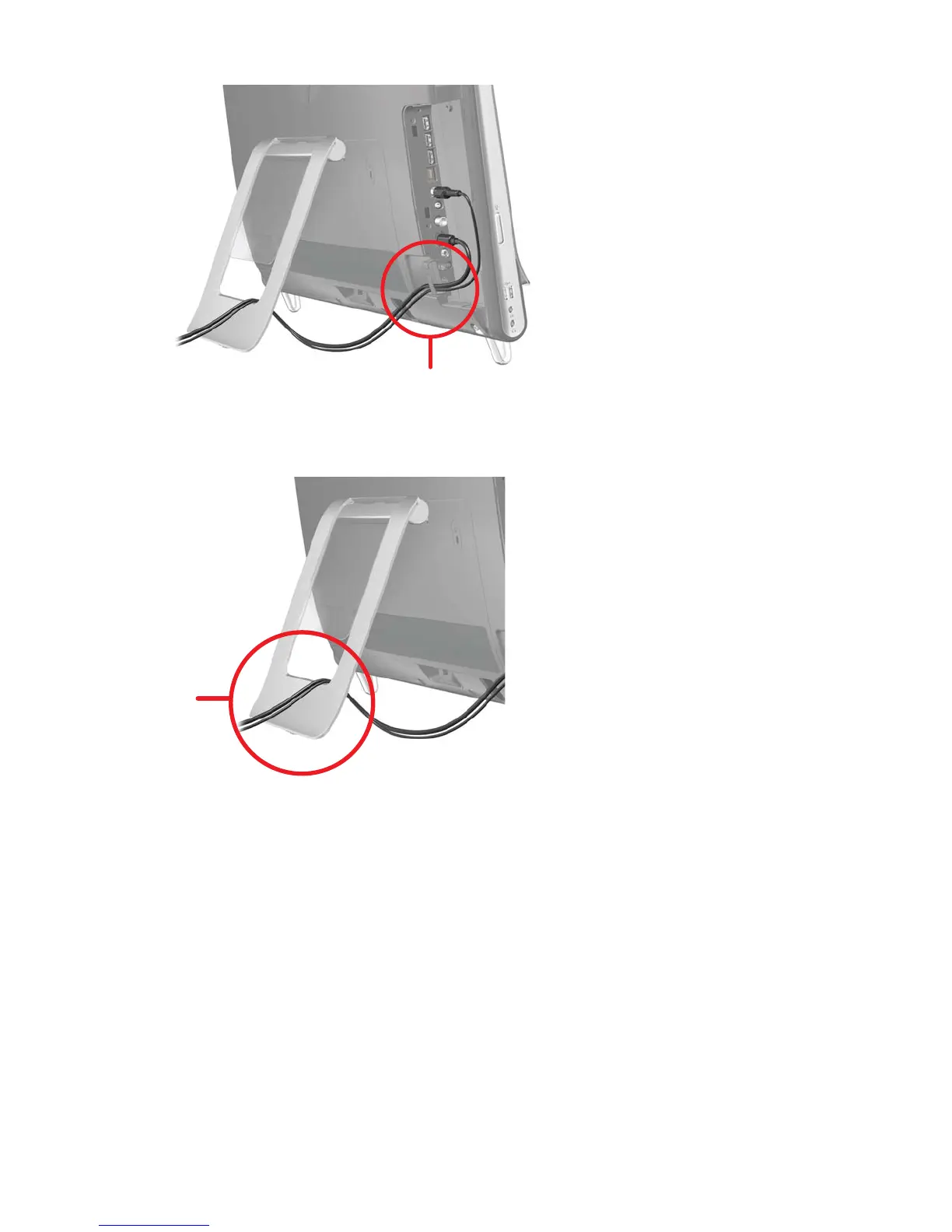

2 Route your cables through the cable routing clip (C), and out from the back of the computer.
3 Replace the connector cover by aligning the hooks on the right edge of the cover with the slots on the
computer, and then pressing it until it snaps into place. Then, route the cables through the open area
between the plastic plate and the bottom of the stand (D).
C
D
