HP TouchSmart 9300 Hardware Reference Guide

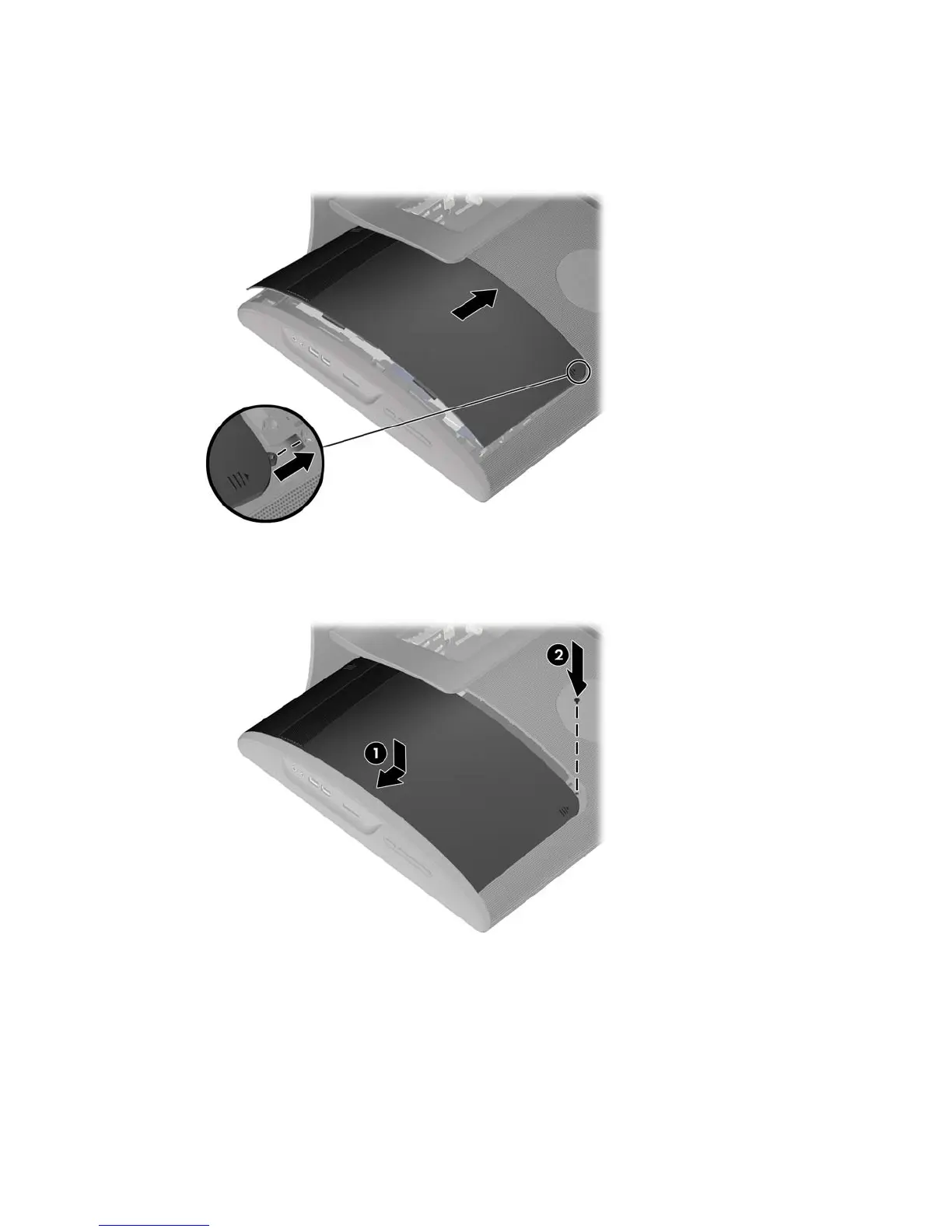

15. To replace the memory access panel, hold the panel at a slight angle with the inside edge of the
panel lower than the outside edge, then slide the screw hole tab on the top inside corner of the
panel into the slot on the rear of the computer.
Figure 2-14 Replacing the Memory Access Panel
16. Lower the outside edge of the panel onto the computer then slide the panel towards the outside
of the computer (1) and install the screw (2) to secure the panel in place.
Figure 2-15 Replacing the Memory Access Panel
ENWW Installing Memory 19

HP TouchSmart 9300 Specifications

General

Resolution	1920 x 1080
Audio	Integrated High Definition Audio
Storage	1TB HDD
Display	23-inch
Operating System	Windows 7
Networking	10/100/1000 Gigabit Ethernet
Wireless	802.11b/g/n
Ports	USB 2.0, Headphone, Microphone, Ethernet
