HP TouchSmart 9300 Hardware Reference Guide

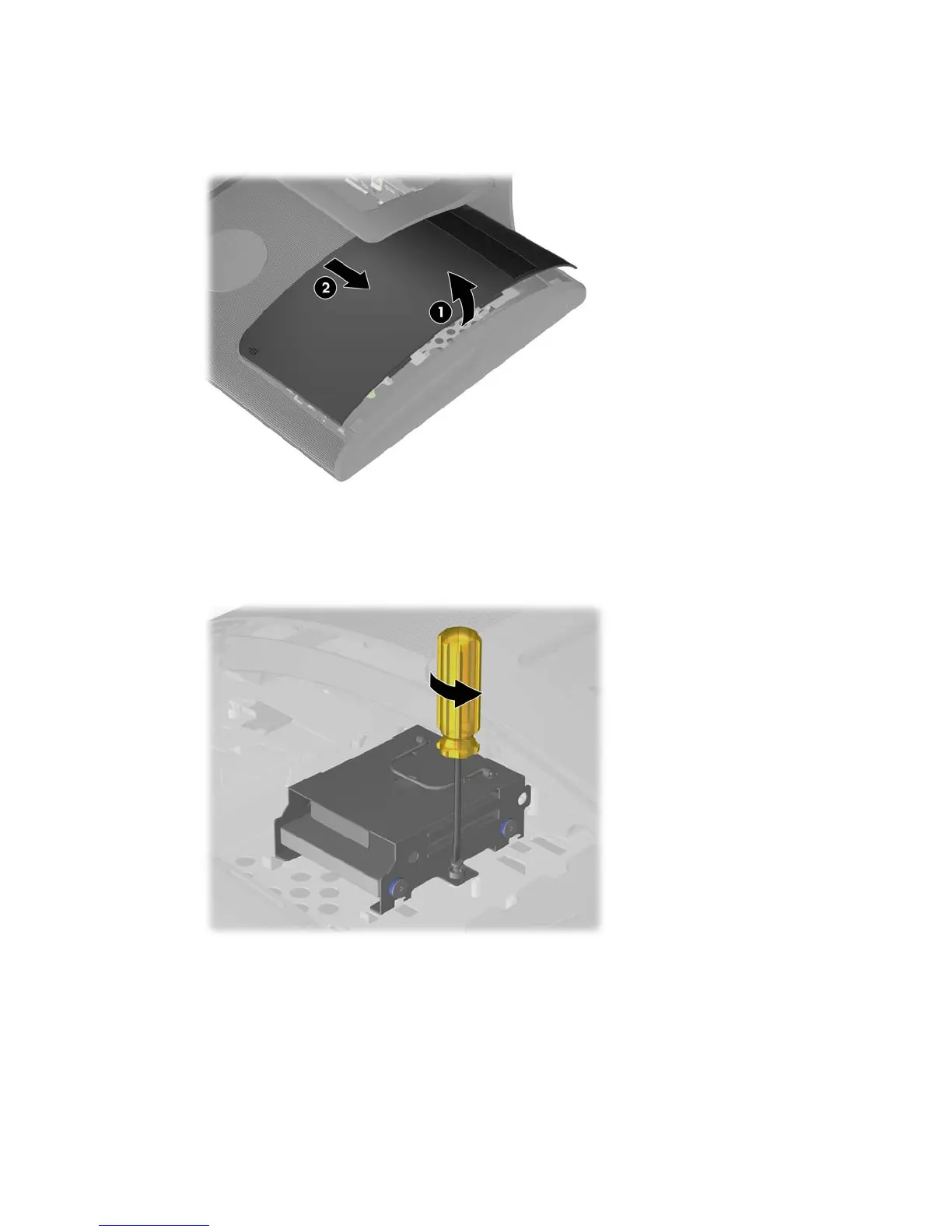

12. Lift up the outside edge of the panel approximately 2.5 cm (1 inch) (1) and slide the panel toward
the outside edge of the computer (2) to remove it.
Figure 2-21 Removing the Drive Access Panel
13. Loosen the captive screw on the side of the hard drive cage that secures the cage to the
computer.
Figure 2-22 Loosening the Hard Drive Cage Screw
ENWW Replacing the Hard Drive 23

HP TouchSmart 9300 Specifications

General

Resolution	1920 x 1080
Audio	Integrated High Definition Audio
Storage	1TB HDD
Display	23-inch
Operating System	Windows 7
Networking	10/100/1000 Gigabit Ethernet
Wireless	802.11b/g/n
Ports	USB 2.0, Headphone, Microphone, Ethernet
