HP TouchSmart 9300 Hardware Reference Guide

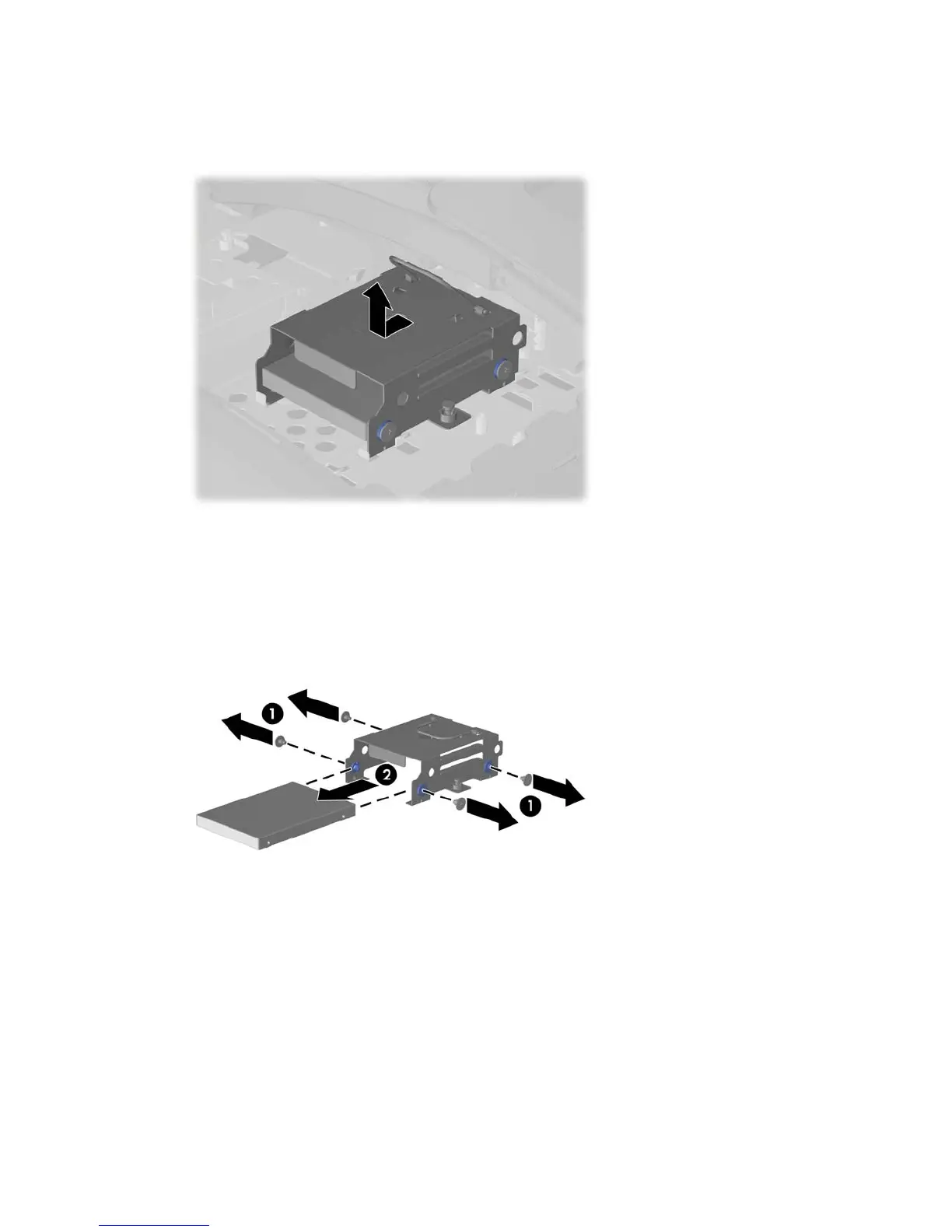

14. Grasp the handle on top of the hard drive cage and slide the cage toward the outer edge of the
computer, then lift the cage out of the computer.
Figure 2-23 Removing the Hard Drive Cage
15. To remove the hard drive from the hard drive cage, remove the four screws on the sides of the
cage that secure the drive to the cage (1), and then slide the drive out of the cage (2).
Figure 2-24 Removing the Hard Drive from the Cage
24 Chapter 2 Hardware Upgrades ENWW

HP TouchSmart 9300 Specifications

General

Resolution	1920 x 1080
Audio	Integrated High Definition Audio
Storage	1TB HDD
Display	23-inch
Operating System	Windows 7
Networking	10/100/1000 Gigabit Ethernet
Wireless	802.11b/g/n
Ports	USB 2.0, Headphone, Microphone, Ethernet
