HP TouchSmart 9300 Hardware Reference Guide

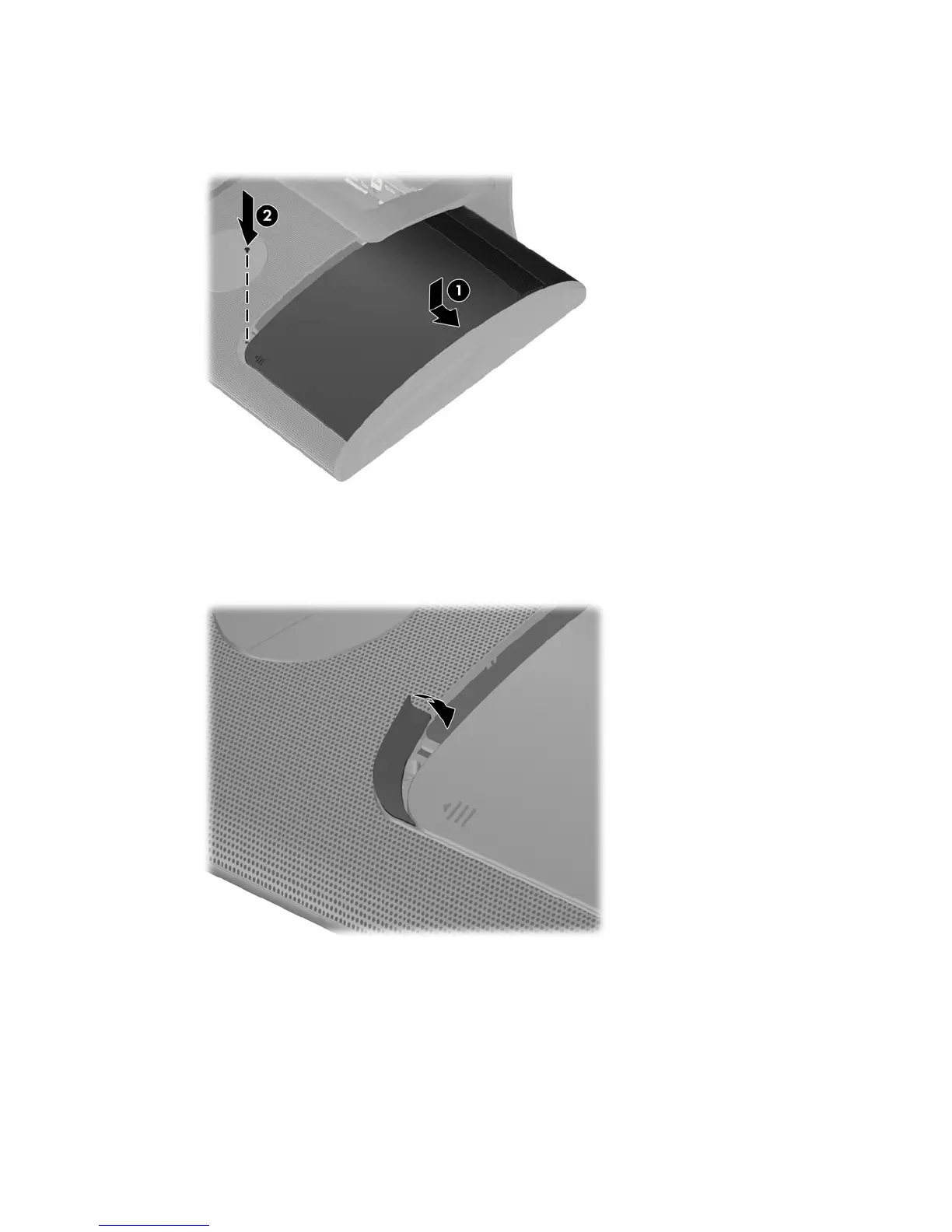

20. Lower the outside edge of the panel onto the computer then slide the panel towards the outside
of the computer (1) and install the screw (2) to secure the panel in place.
Figure 2-29 Replacing the Drive Access Panel
21. Replace the screw cover plate, pressing the top of the cover plate in position first then pressing
the bottom of the cover plate in position.
Figure 2-30 Replacing the Access Panel Screw Cover Plate
ENWW Replacing the Hard Drive 27

HP TouchSmart 9300 Specifications

General

Resolution	1920 x 1080
Audio	Integrated High Definition Audio
Storage	1TB HDD
Display	23-inch
Operating System	Windows 7
Networking	10/100/1000 Gigabit Ethernet
Wireless	802.11b/g/n
Ports	USB 2.0, Headphone, Microphone, Ethernet
