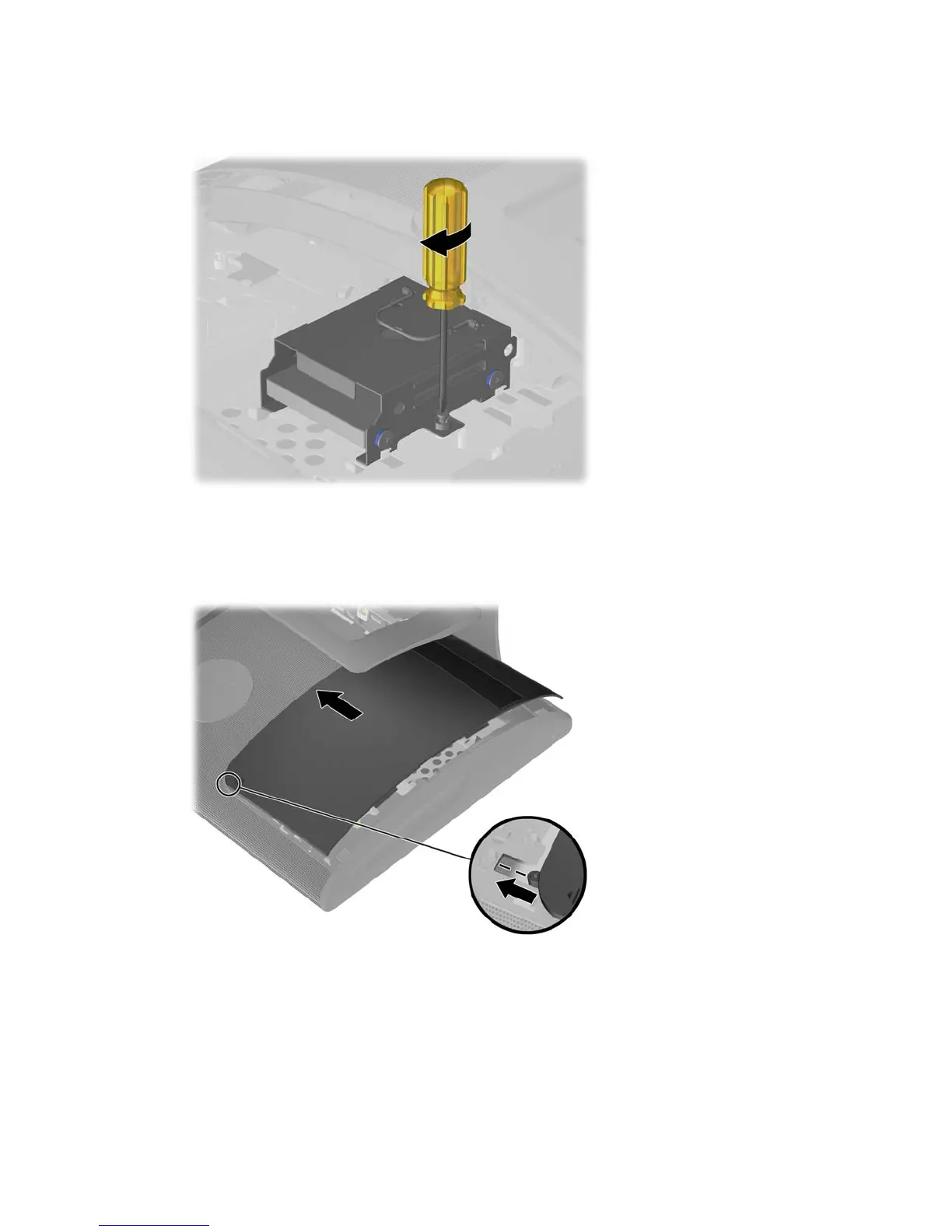

18. Tighten the captive screw to secure the hard drive cage in place.
Figure 2-27 Tightening the Hard Drive Cage Screw
19. To replace the drive access panel, hold the panel at a slight angle with the inside edge of the
panel lower than the outside edge, then slide the screw hole tab on the top inside corner of the
panel into the slot on the rear of the computer.
Figure 2-28 Replacing the Drive Access Panel
26 Chapter 2 Hardware Upgrades ENWW
