HP TOUCHSMART TM2 Maintenance And Service Guide

10 Recycling
Battery
When a battery has reached the end of its useful life, do not dispose of the battery in general
household waste. Follow the local laws and regulations in your area for computer battery disposal.
Display
WARNING! The backlight contains mercury. Caution must be exercised when removing and
handling the backlight to avoid damaging this component and causing exposure to the mercury.
CAUTION: The procedures in this chapter can result in damage to display components. The only
components intended for recycling purposes are the liquid crystal display (LCD) panel and the
backlight. When you remove these components, handle them carefully.
NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly
that might require special handling at end-of-life. Disposal of mercury may be regulated because of
environmental considerations. For disposal or recycling information, contact your local authorities, or
see the Electronic Industries Alliance (EIA) Web site at
http://www.eiai.org.

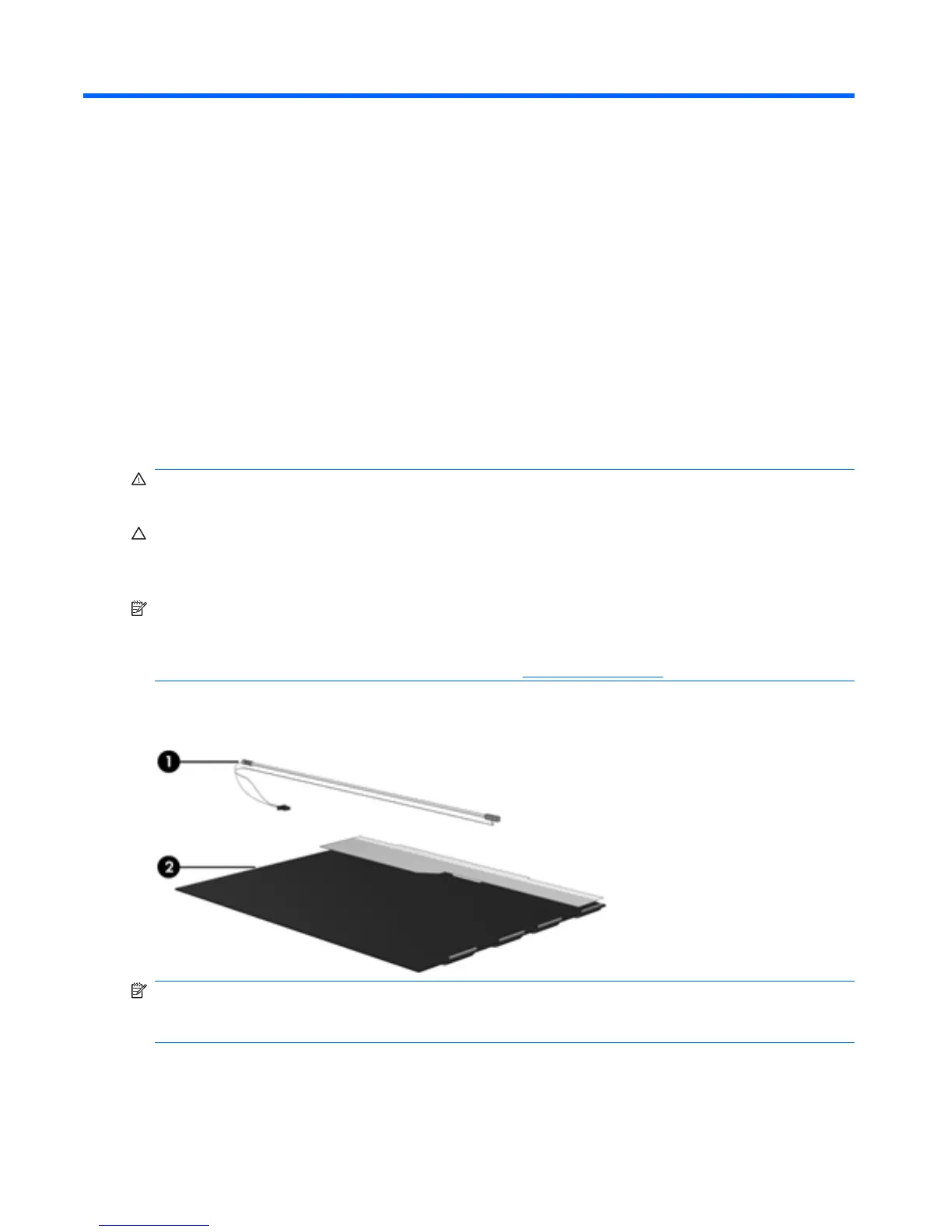

This section provides disassembly instructions for the display assembly. The display assembly must be
disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).
NOTE: The procedures provided in this chapter are general disassembly instructions. Specific details,
such as screw sizes, quantities, and locations, and component shapes and sizes, can vary from one
computer model to another.
92 Chapter 10 Recycling ENWW

HP TOUCHSMART TM2 Specifications

General

Bus type	DMI
Stepping	K0
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
System bus rate	2.5 GT/s
Processor family	Intel® Core™ i3
Processor series	Intel Core i3-300 Mobile Series
Processor socket	BGA 1288
Processor threads	4
Processor codename	Arrandale
Processing Die size	81 mm²
Processor frequency	1.33 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16
Thermal Design Power (TDP)	18 W
CPU multiplier (bus/core ratio)	10
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	382 M
Motherboard chipset	Intel® HM55 Express
Internal memory	3 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	320 GB
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD
Number of HDDs installed	1
Display diagonal	12.1 \
Touch technology	Multi-touch
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Ethernet interface type	Gigabit Ethernet
Operating temperature (T-T)	41 - 95 °F
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	166 MHz
On-board graphics card dynamic frequency (max)	500 MHz
Audio system	Dolby Advanced
Speakers manufacturer	Altec Lansing
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit LAN, WLAN
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Keyboard layout	-
Pointing device	Clickpad
Operating system installed	Windows 7 Home Premium
Form factor	Convertible (Swivel)
Product type	Hybrid (2-in-1)
Country of origin	China
Battery life (max)	- h
Number of battery cells	6
AC adapter power	65 W
Cable lock slot type	Kensington
Operating altitude	-15 - 3048 m
Non-operating altitude	-15 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Processor code	SLBSL
Processor ARK ID	50028
Processor package size	BGA 34 x 28 mm
Graphics & IMC lithography	45 nm
Supported instruction sets	SSE4.1, SSE4.2

Weight and Dimensions

Depth	326 mm
Width	230 mm
Weight	1893 g
Height (rear)	30 mm
Height (front)	24.3 mm
