Power connector and cable
Description Spare part number
Power connector and cable 592967-001
Before removing the power connector and cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power cord.
4. Remove the battery (see
Battery on page 35).
5.
Remove the following components:
a. Hard drive (see
Hard drive on page 37)
b. Top cover (see
Top cover on page 48)
c. Keyboard (see
Keyboard on page 50)
d. Display assembly (see
Display assembly on page 55)
e. System board (see
System board on page 59)

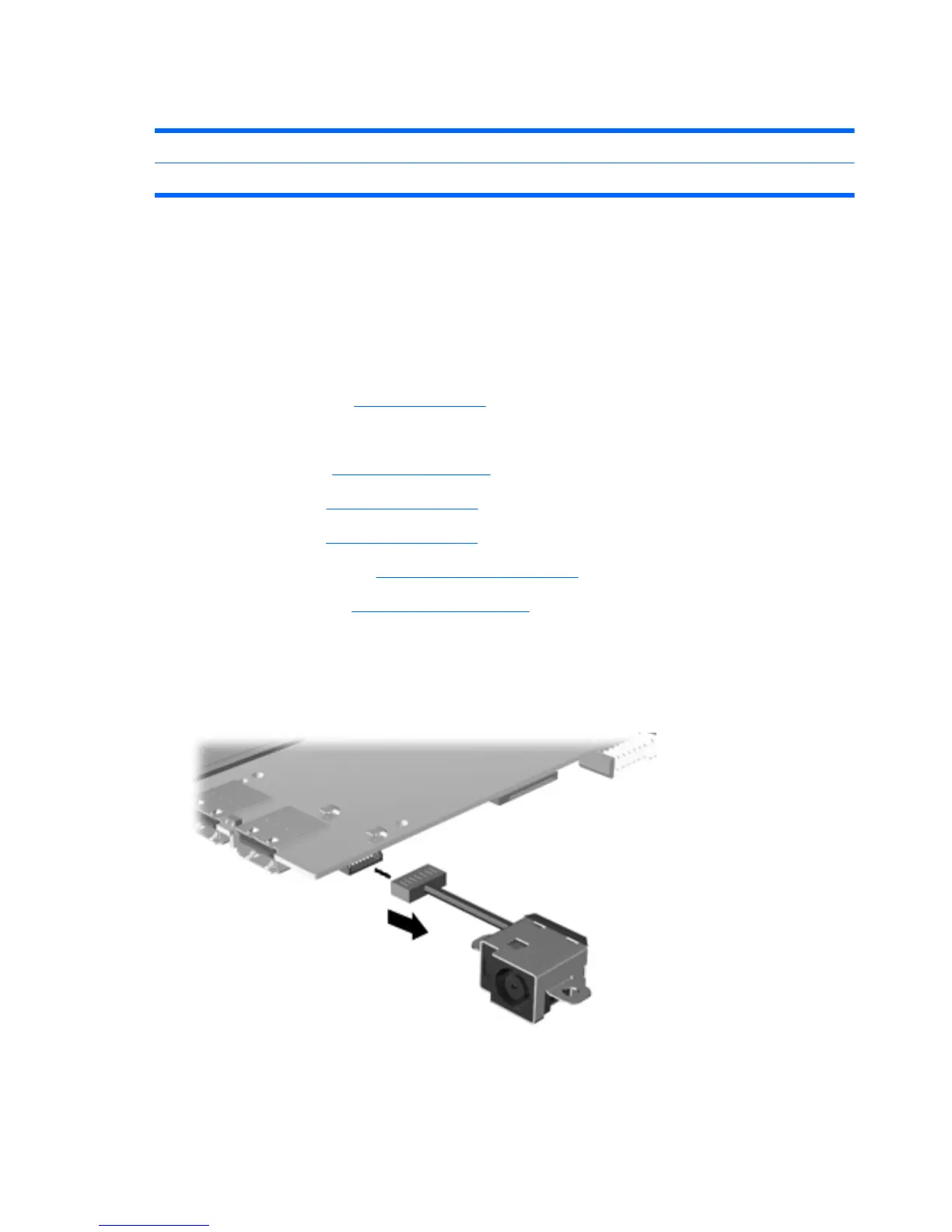

Remove the power connector and cable:
1. Turn the system board upside down, with the rear toward you.
2. Disconnect the power connector and cable from the system board.
62 Chapter 4 Removal and replacement procedures ENWW
